4.7

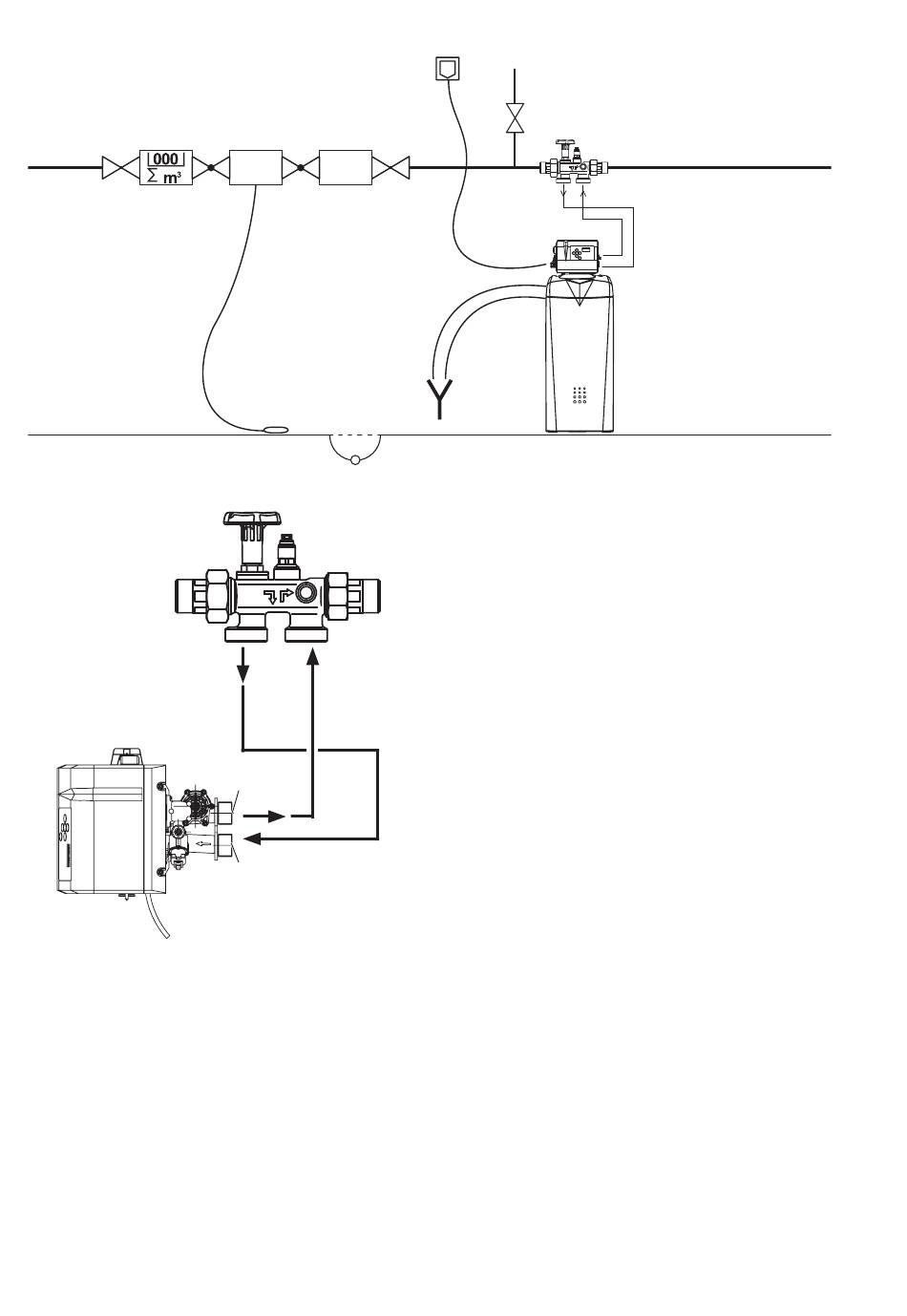

Installation diagram

Unfiltered
Water
Strainer
stop
Sewage
Floor
system
sensor
connection
Multiblock X (optional)
Filtered
water
water
to 8
from 7
7
8
Screw a nut with seal (5/4"/3/4") onto both the outlet and inlet
of the Multiblock.
Connect the product to the multi-target filter as shown in the
schematic diagram opposite.
Connect the flexible hose to the Multiblock outlet and then
make a watertight connection to the product water inlet (8).
Observe the arrows indicating the direction of flow!
Connect the flexible hose to the Multiblock inlet and then
make a watertight connection to the product water outlet (7).
Route the flushing water hose to the sewage system connection
(drain) at an incline and secure the hose end with the fixing
material supplied. Attach the flushing water to the sewage
system connection at least 20 mm above the highest possible
waste water level to ensure a free flow.
