Assembly instructions

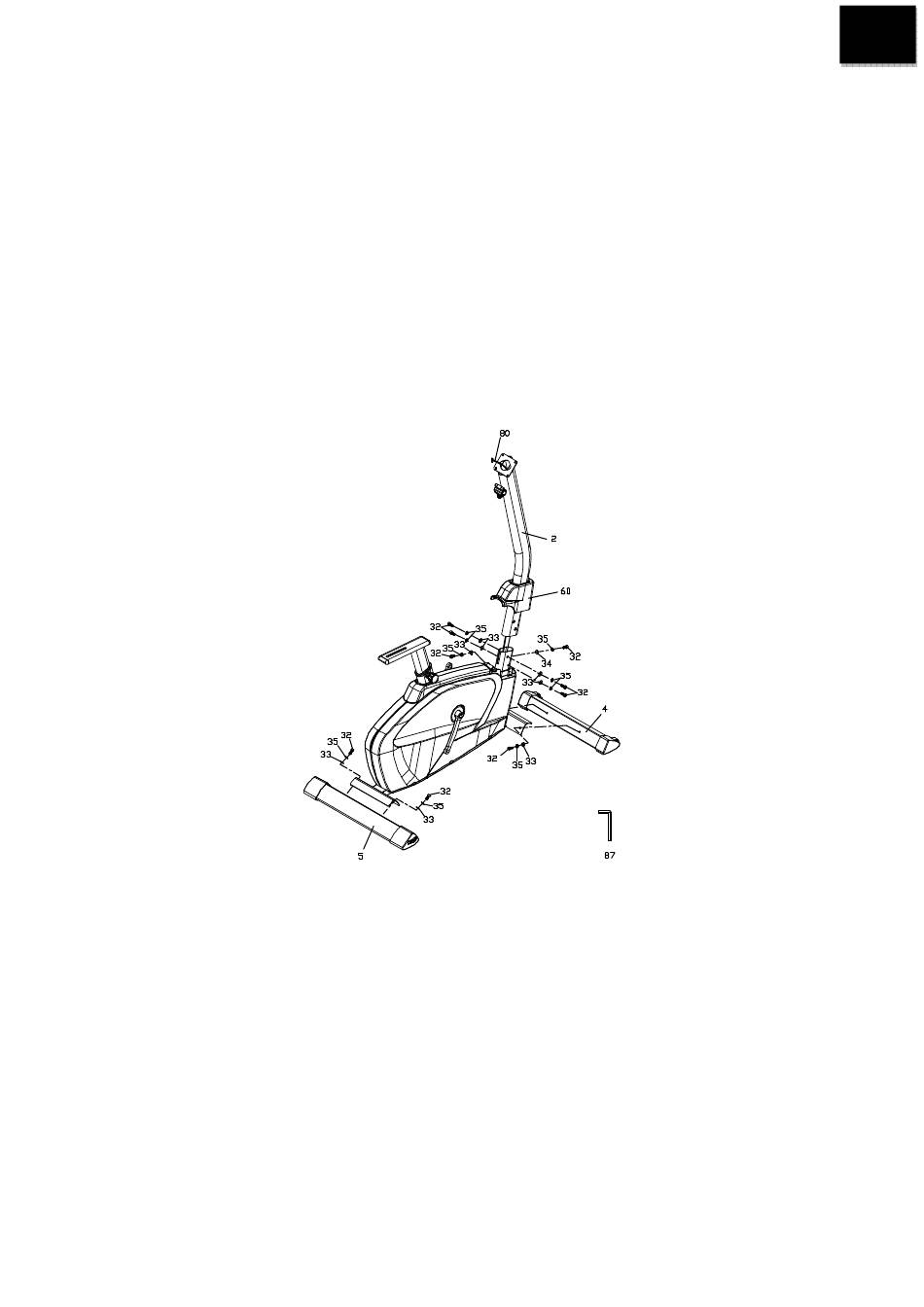

STEP 1:
1. Locate the Console Mast (2) and slide on the Console Mast Cover (60). Make sure the cover is facing
the correct direction, as shown below, before sliding onto mast. Install the wiring harness (80) into the
bottom of the mast and out the top. Be careful when installing the console mast to the mainframe so as
not to pinch or cut the wiring harness, damage to the console may occur.
2. Install the console mast on the mainframe using the 6mm Allen Wrench (87) to tighten 5pcs of 5/16"
× 3/4" Socket Head Cap Bolts (32) , 4pcs of 5/16 Flat Washers (33) , 5pcs of 5/16" Split Washers
(35)and 1pcs of 5/16" Curved Washer (34). Snap the Console Mast Cover (60) in place on the body of
the bike.
3. Secure Front Stabilizer (4) and Rear Stabilizer (5) with 4pcs of 5/16" × 3/4" Socket Head Cap Bolts
(32), 4pcs of 5/16" Split Washers (35) and 4pcs of 5/16" Flat Washers (33) by using 6mm Allen
Wrench (87).
STEP 2:
1. Install Handle Bar (3) on Console Mast (2) and lock with Quick Release lever (19). Install the Hand
Pulse Cable (82) through the console mounting plate as shown below.
2. Connect Computer Cable (80) and Hand Pulse Sensor Cable (82) to the Console (48) and assemble on
the Console Mast (2) using Phillips Head Screw Driver (43) to tighten 4pcs of M5 × 12L Phillips
Head Screws (41).
3. Use 15m/m Wrench (79) to install both Pedals (15 left and right) on the crank axle. The left pedal is a
reverse thread and will screw in a counterclockwise direction. The pedals are marked with an R or L
on the end of the threaded pedal axle. Make sure to tighten the pedals firmly or a clicking noise can
occur during pedaling. It may be necessary to retighten the pedals after use if clicking occurs.
4. Locate the 3/8" ×1-1/2" Carriage Bolt (71) and assemble through Seat slide bracket (20) and seat tube
Slide (6). Secure the slides with 3/8" Flat Washer (72) and fore/aft adjustment Knob (52).
