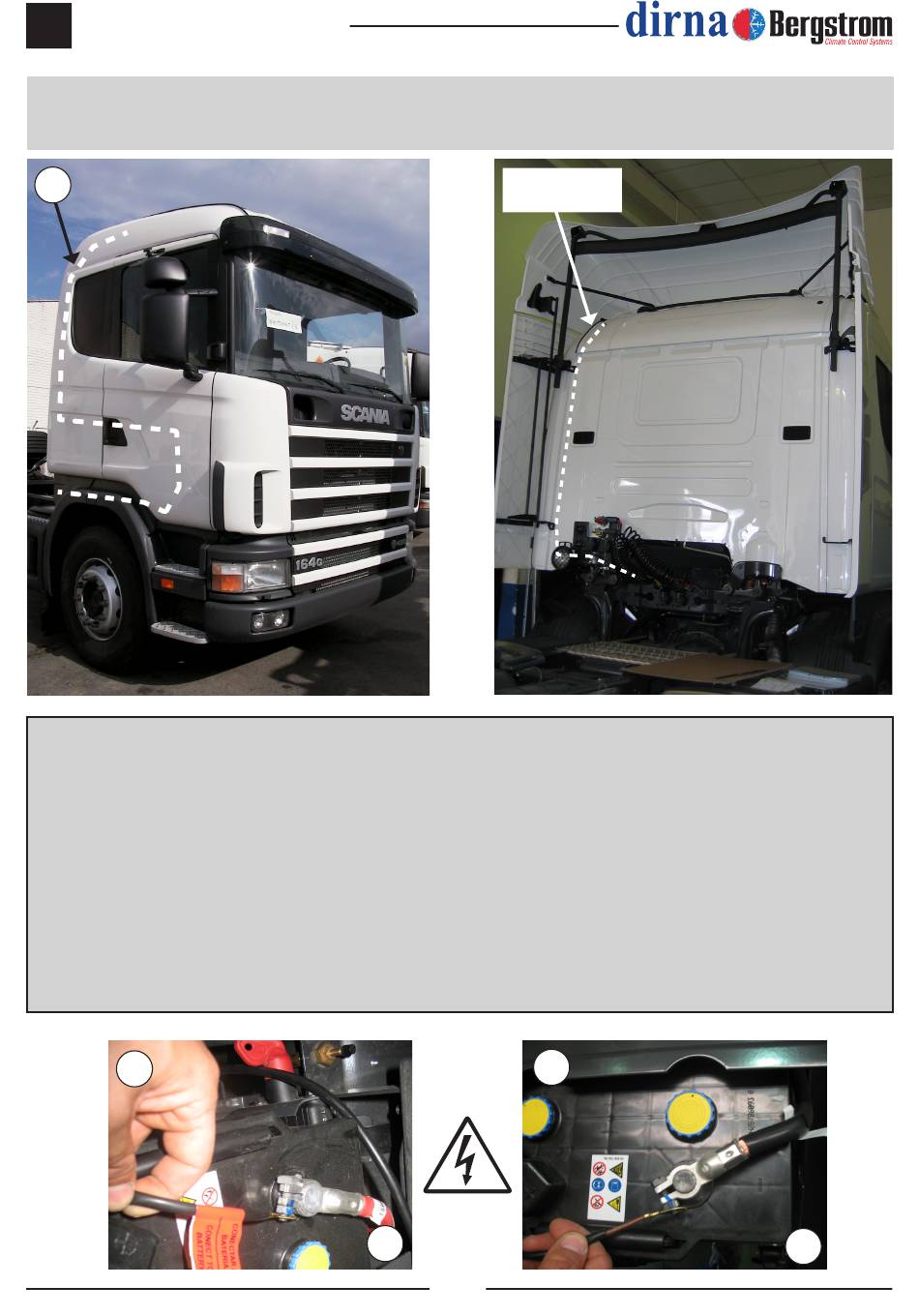

1- Lead equipment power cable up to the vehicle´s battery, gluing plastic supports on rear cabin side and
fastening it with flanges. Once cabin has been folded, lead cable along lower cabin side, fastening it with
clamps and M4 screws and up to battery with flanges. It must follow the same passage as original cable
(thoroughly clean the area before gluing plastic supports). When connecting equipment to battery, it will
carry out a test of all its leds, 88-bd will show on the display and it will then be turned off.
IMPORTANT: Due to the complex electronic control system of the unit, the current supply connection
must be made directly to the battery, not to any other existing point available to feed other vehicle
accessory or appliance, taking care of not changing polarity. Should polarity be inverted, the plate
does not come on and the unit does not work (2).
IMPORTANT: Please consult User's Guide before starting.
