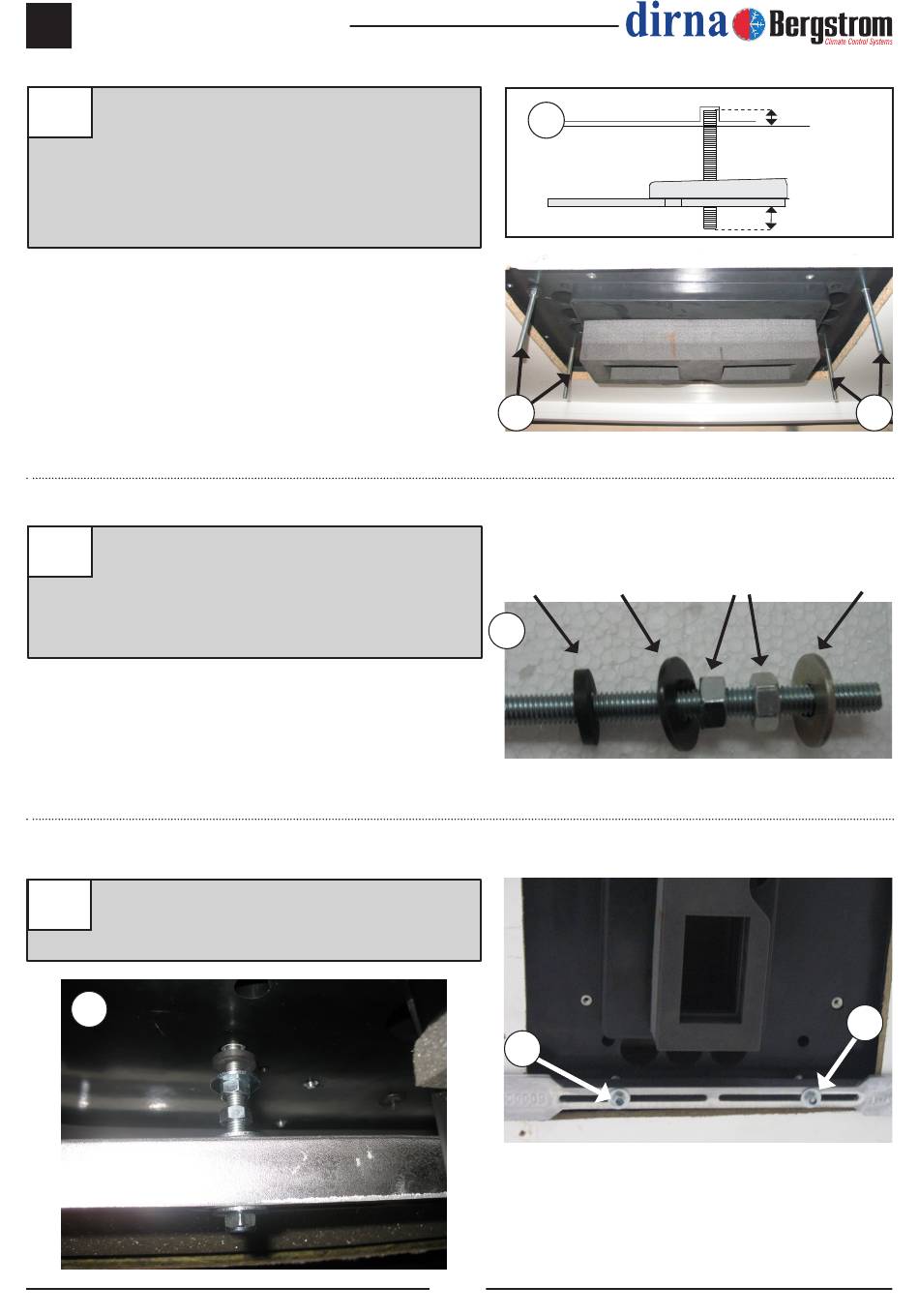

INSIDE CABIN:
4
Screw about 5 mm (4) 8/125x100-140 mm
studs, the exact measure is chosen after the
fastening supports have been presented and
taking into account that studs must stick out of
lower part about 20 mm.
Following this order:
5
- plane rubber wash
- plane ruber wash wide wing diameter 8
- nut M8
- plane washer diameter 8 wide wing
Place (2) fastening supports, with (1) washer
6
and (1) M8 self-blocking nut, without
tightening.
6
Unit base
4
4
plane ruber wash
plane rubber
wide wing Ø 8
wash
5
6
14
Air conditioning for vehicles
5 mm
Stud
Bracket
20 mm
nut M8
4
plane washer Ø8
wide wing
6
