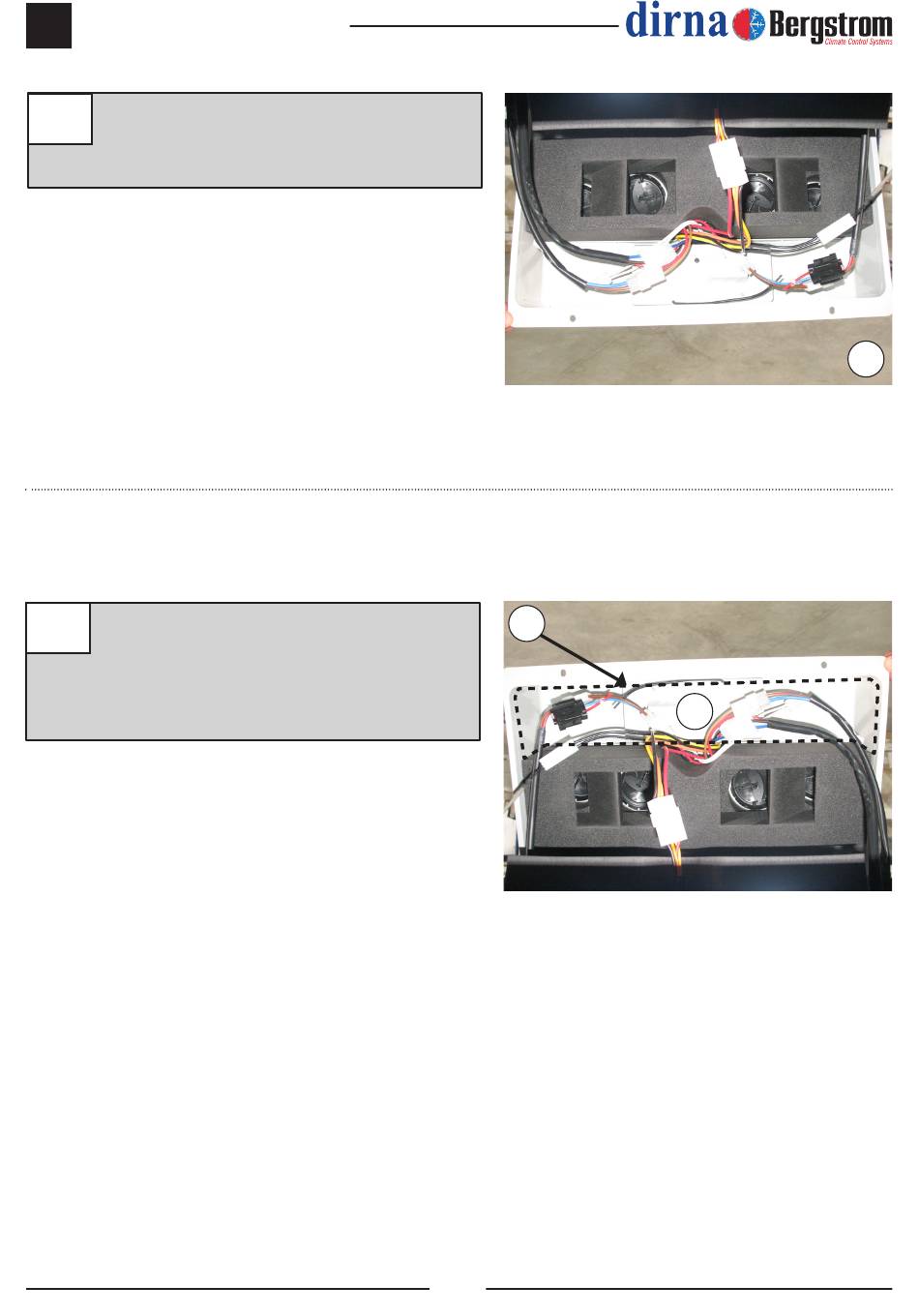

Connect the (2) 4 ways boxes, the (2) 2 ways
10
boxes and connect also the feeding wiring in
the 2 ways boxes in T."
10a
Introduce the cabling in the gap (H) in the front
in order not to interfere in the adjustment of the
channelling equipment with the unit base. The
power cable connection should be outside of
the front.
10a
