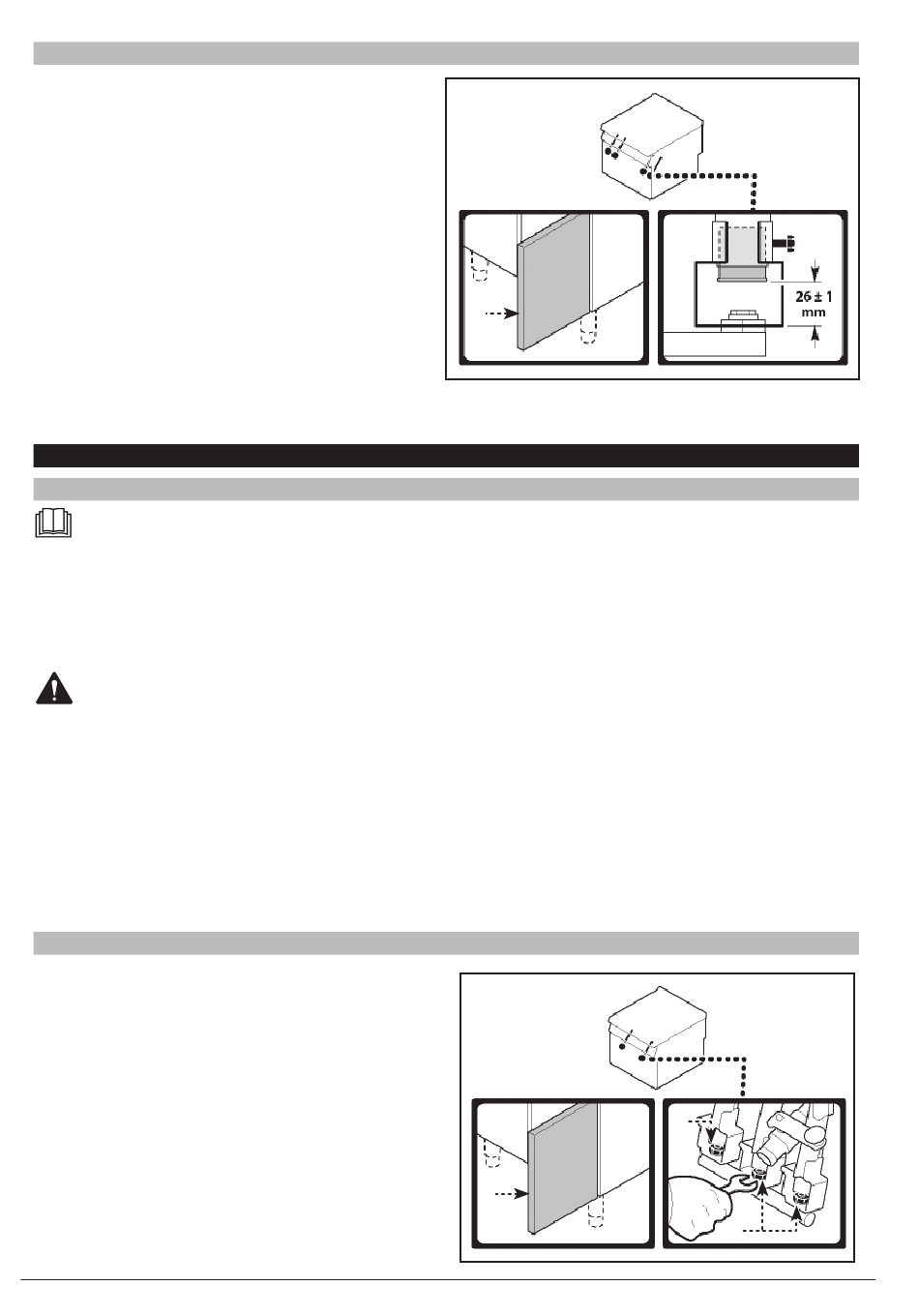

ADJUSTING BURNER PRIMARY AIR (0*1FR3G - 1*1FR4G)

To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Open the hatch (A).
2)
Undo the locking screw (B).
3)
Set the bush (C) at the distance as shown in
4)
the fi gure.
Tighten the screw (B).
5)
After making the setting, seal the screw with
paint.
Close the door (A) when the operation is
6)
complete.

INSTRUCTIONS AND WARNING FOR REPLACING PARTS

NOTE: Read the following section of
the "user instruction manual" carefully be-
fore replacing any part:
– Hazards and safety provisions during instal-
lation and commissioning, adjustments and
part replacement.
WARNING: Before making any type
of adjustment, activate all the safety de-
vices provided and decide whether staff at
work and those in the vicinity should be in-
formed. In particular, close the the gas and
water supply taps, cut off the electricity sup-
ply using the master switch and prevent ac-
cess to all devices which might cause un-
To carry out this operation, proceed as follows.
Turn off the gas supply tap.
1)
Open the hatch (A).
2)
Unscrew the nozzle (B) Unscrew the nozzle
3)
and replace it with the one suitable for the
type of gas in use (see table at back of ma-
nual).
Close the door (A) when the operation is
4)
complete.
16

REPLACING PARTS

REPLACEMENT OF THE BURNER NOZZLE

A
expected hazards and damage to people's
health and safety if activated.
Also make sure that during the maintenance
procedure, that the operator is always able to
check whether the plug is disconnected from
the power outlet. If worn parts have to be re-
placed, use original spare parts only. The ma-
nufacturer declines all responsibly for inju-
ry or damage to components due to the use
of non original parts, or extraordinary work
on the appliance which may modify the safe-
ty requirements without the manufacturer's
authorisation. When ordering components,
follow the instructions provided in the parts
catalogue.
A
REPLACING PARTS
B
B
