8.4 System Installation
• The Cavitron Plus Ultrasonic Scaler is designed to
rest on a level surface. Be sure unit is stable and
resting on four feet.
• The Cavitron Plus Ultrasonic Scaler should not be
positioned such that access to the power input and
AC power cord are limited.
• Placing unit in direct sunlight may discolor plastic
housing.
• The system has been equipped with a Tap-On™
Wireless Foot Pedal which was factory synchronized
to operate with the system's base unit. If your office
has more than one Cavitron system with Tap-On™
Technology, it is recommended that you mark the
Tap-On™ Foot Pedal and base unit for easy reference
as to which Tap-On™ Foot Pedal operates with which
base unit. Should resynchronization be necessary,
follow the instructions in section 8.10.

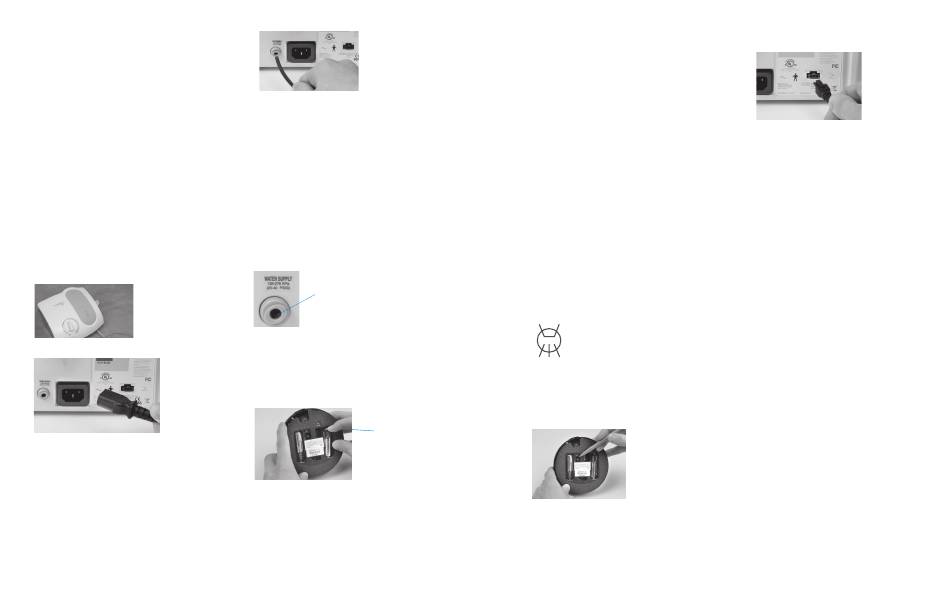

8.5 Power Cord Connection

• Verify the Main Power ON/OFF switch, located at the
center front underside of the System, is set to the
OFF (O) position before proceeding.
• Insert the AC power cord into the power input on the
back of the System.
• Insert the pronged plug into an AC wall outlet.

8.6 Water Supply Line Connection

• Grasp the Water Supply Line (blue hose) by the end
opposite the quick-disconnect and insert it into the
water inlet connector until fully seated.
• Connect the quick-disconnect to the dental office
water supply or a Cavitron DualSelect Dispensing
System.
• Inspect all connections to make certain there are no
leaks.
• To remove the waterline from the Cavitron Plus
System, turn off the dental office water supply.
Disconnect the water supply line from the dental
office water supply. If a quick-disconnect connector
is attached to the end of the hose, relieve the water
pressure by pressing the tip of the connector in an
appropriate container and allow water to drain. To
remove the hose from the system, push on the outer
ring of the system's water inlet and gently pull out the
waterline.
Press ring to release water
supply tube.
8.7 Tap-On™ Foot Pedal Battery Installation and
Replacement
• Turn Tap-On™ Wireless Foot Pedal over and using a
Philips screwdriver carefully remove battery cover
screw and battery cover. If applicable, remove used
batteries and install two new "AA" batteries as shown.
Do not depress Tap-On™ Foot Pedal while installing
batteries.
•
•
Look for blinking commu-
•
nications light.
•
•
• The communication light will blink for approximately
two seconds to indicate the Tap-On™ Foot Pedal's
ability to communicate with the unit. If the light does
not blink, check the batteries. If the batteries are good
and the light doesn't blink, a communications error
may exist. To re-establish communication with Tap-
On™ Foot Pedal review Synchronization procedure,
section 8.10.
• The remote frequency communication can be
bypassed using the auxillary Tap-On™ Foot Pedal
cable. Refer to Section 12.2 Technical Support and
English - 7
Repair for further action.
• Replace the battery cover and screw and hand
tighten cover with Philips screwdriver.
• Remove batteries if Tap-On™ Foot Pedal is to be
stored for an extended period of time.
8.8 Tap-On™ Foot Pedal Synchronization
The Tap-On™ Wireless Foot Pedal supplied with your
system has been factory synchronized with the base unit.
Should a replacement Tap-On™ Foot Pedal be necessary,
synchronization will be required prior to system operation.
Perform the following steps to synchronize the Tap-On™
Foot Pedal with the base unit.
1. Turn the MainPower switch located at the center
front underside of the system to the OFF (O)
position.
2. Install a new set of "AA" batteries into the foot
control (see section 8.9). Leave the battery cover
of the Tap-On™ Foot Pedal open so the red push
button is accessible.
3. Maintain a distance of no more than 10 feet (3
meters) between the base unit and Tap-On™ Foot
Pedal during the synchronization process.
4. Remove any inserts from the handpiece and adjust
the Power Level Control out of Rinse Mode. Turn
the Main Power switch to the ON (I) position and
wait for the Diagnostic Display graphics to light
(refer to Section 9.2).
5. While all graphics are lit, press the Purge button,
located on the Diagnostic Display.
PURGE
The graphics will begin to blink in a sequential
pattern, representing the synchronization mode.
This mode will last 5 to 6 seconds.
6. During this mode, press the red button located in
the battery compartment of the Tap-On™ Foot
Pedal. This will complete the synchronization
process.
7. Synchronization is successful when all graphic
lights blink at the same time.
8. To verify proper communication, press the foot
control to the Boost position (Tap-On™ Foot Pedal
fully depressed – 2 position) and ensure the
nd
Boost graphic on base unit illuminates.
9. Attach battery cover and tighten the screw.
10. In the event communication cannot be
established, temporarily use the supplied Auxillary
Tap-On™ Foot Pedal Cable to connect the Tap-
On™ Foot Pedal directly to the unit.
