User Guide DEVItector™ II V2
Safety Button on/pressed

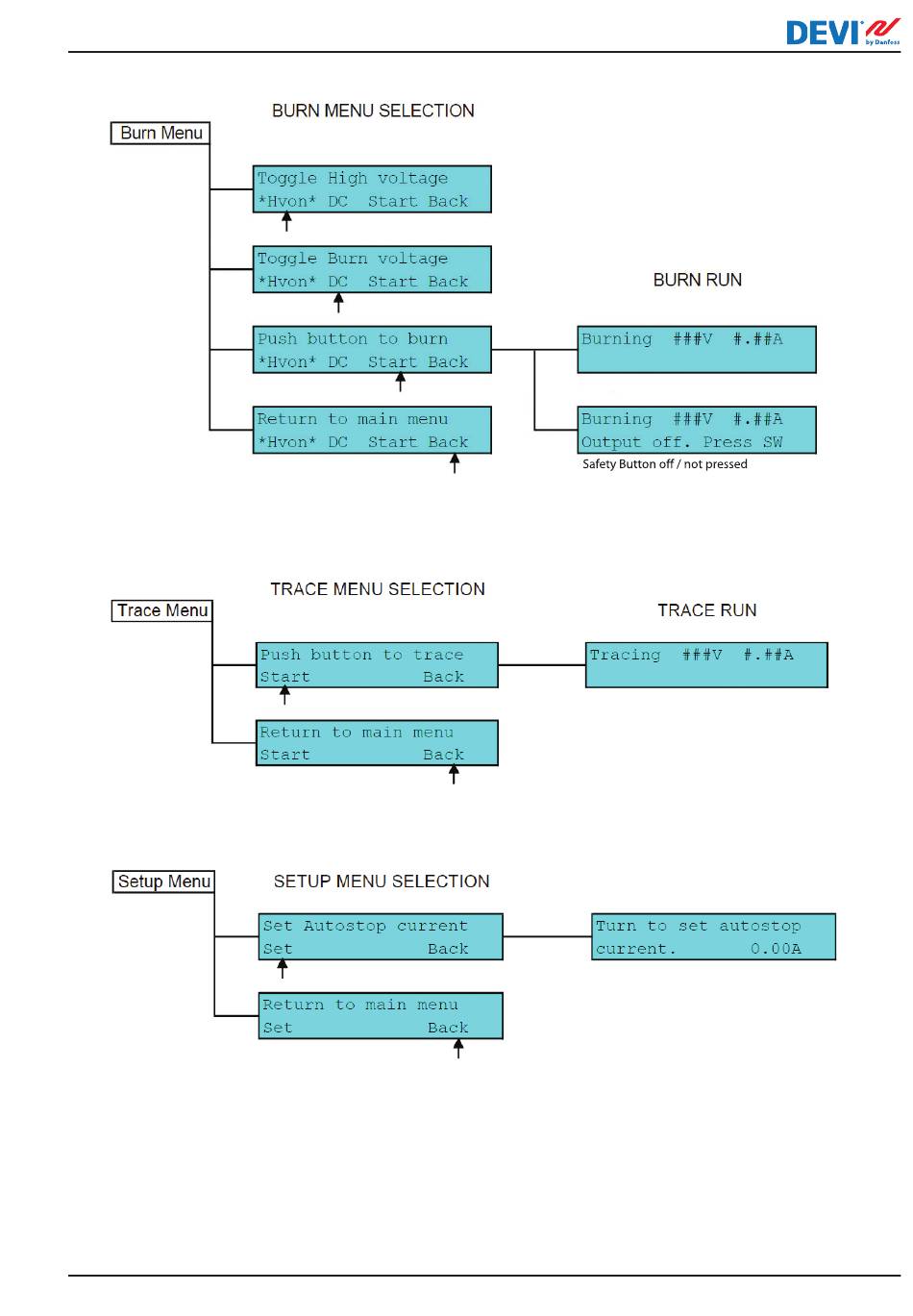

Fig. 17: Burn Menu: The arrow indicates the active menu item as you turn the knob. On the display, the active
menu item is highlighted (the arrow is not shown on the display). The character "#" indicates a digit, e.g. "#.##A"
representing "1.23A". Please note that the Burn Run display depends on whether you press the Safety Button or not.
Safety Button on/pressed
Fig. 18: Trace Menu: The "TRACE RUN" displays the Voltage and current of the signal.
Safety Button on/pressed
Fig. 19: Setup Menu: Here you select the Autostop current at which the burning operation is halted.
BC421332622232de-DE0101 2022.07 | FEC | ©Danfoss | 11
