REPAIR AND CLEANING PROCEDURE
LOWER SEALS KIT (FIG. 8)
1. Take away the air motor from the lowers, as described previously.
2. Unscrew the bolts (G) and remove the body (F).
3. Unscrew the scraper nut (D) and extract the washer (A). Replace seals
(A), (B) by new ones.
4. Take away the assembly consisting of parts (E), (I), (J) and (K) from
the lowers.
5. With the tube (L) secured on a vise, unscrew the tube (T).
6. Extract the parts 2x(C), (R) and (S). Remove the circlip (Q) from the
valve (V) and replace the components (R), (S) and (U) by new ones.
7. Unscrew the part (O) and replace the seals (M) and (N) by new ones.
8. Assemble again in reverse order, replacing all metallic seals 4x(C).
9. See on page 27-29 the seals kit.
DETAIL C
75
R
74
Q
62
W
63
64
65
J
PARTS LIST / TECHNICAL DATA / DIMENSIONS
SPARE PARTS SEE PAGES: 27-31.
SAMOA Industrial, S.A. · Pol. Ind. Porceyo, I-14 · Camino del Fontán, 831 · 33392 - Gijón - Spain · Tel.: +34 985 381 488 · www.samoaindustrial.com
38
A
39
B
40
39
B
DETAIL B
DETAIL D

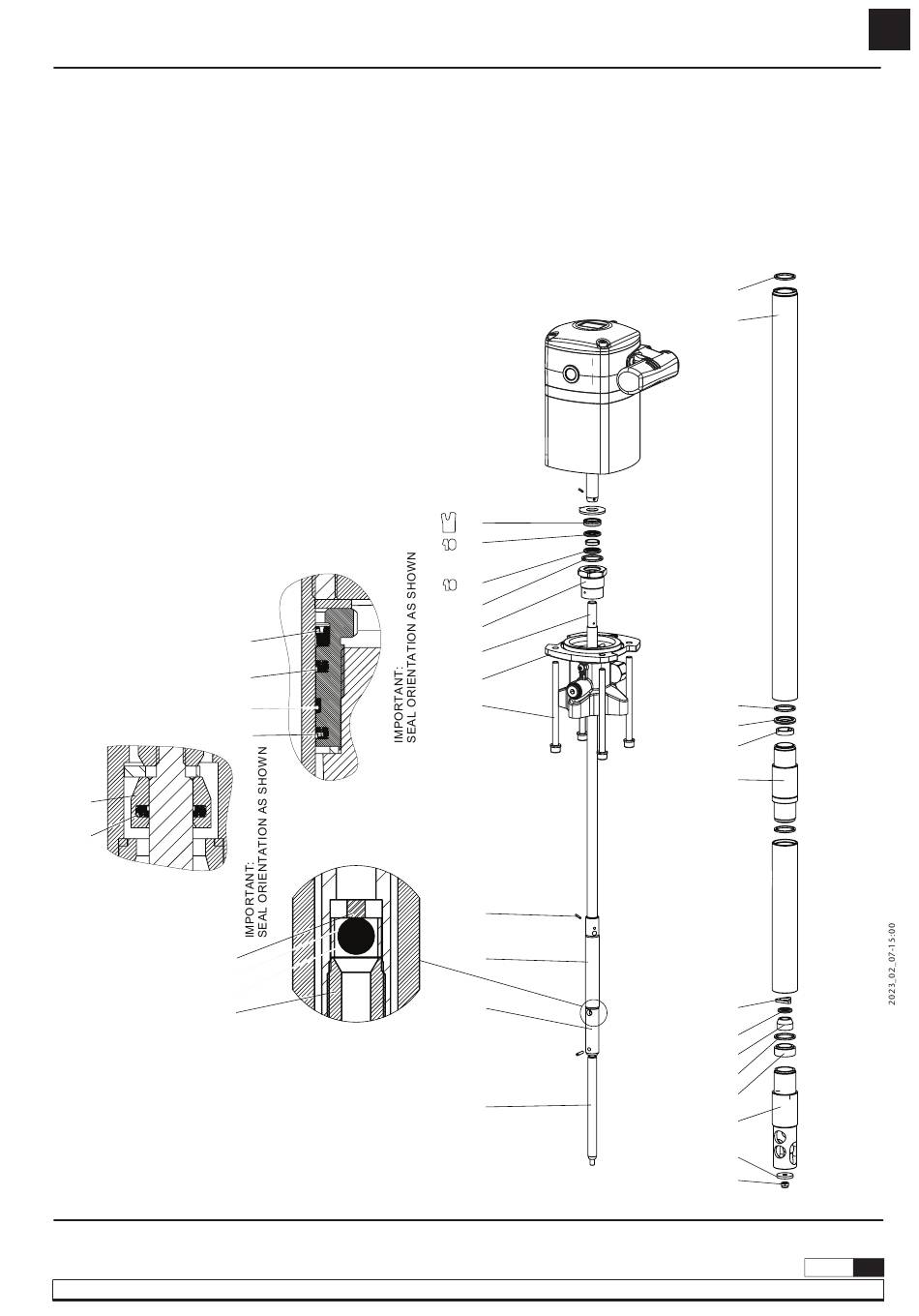

Fig. 8
CLEANING OR REPLACING THE LOWERS VALVES
1. Disassembling the lowers as described previously, the fluid valves can
be easily accessed.
2. Lower valve: parts from (P) to (S).
3. Upper valve: parts from (W) to (J).
NOTE: to unscrew the upper valve (J), secure it in a vise and unscrew
the rod (I) by grabbing it in the pin (H) area in order to avoid damaging
the quality of the surface intended for sealing.
36
35
37
38
A
39
B
40
39
B
42
C
41
D
59
E
44
F
50
G
49
60
H
61
I
65
J
66
67
K
EN
42
C
68
L
42
C
69
M
70
N
71
O
42
72
73
P
74
Q
75
R
42
C
76
S
79
T
77
U
78
V
5
