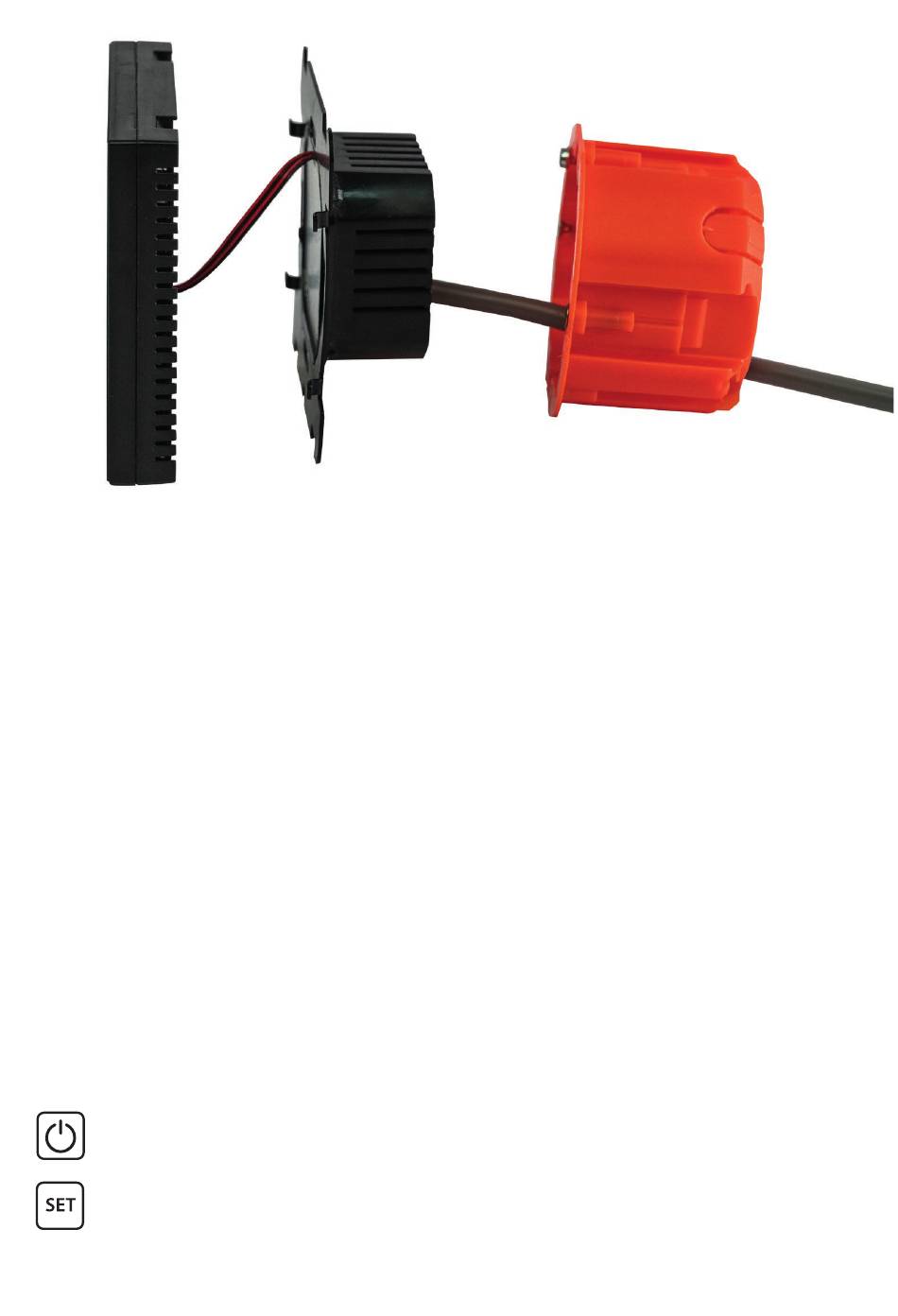

For the purpose installation of the thermoregulator, in the junction box and making
the electric connections, you should open its housing very gently (so as not to bre-
ak the connection tape) by removing the display assembly according as shown in
Figure 2. The installation of the thermoregulator should be planned in a place not
exposed to the sunlight. Figure 2 shows the terminal block of the thermoregulator
used to make the electric connections of the device with the electric grid. Connect
the wires according to the diagram given. Upon completing the installation and ma-
king the electric connections, you should configure the system according to the next
section of this manual.
CONTROLLING – DESCRIPTION OF THE FUNCTIONS OF THE
CONTROL BUTTONS
The graphic identification of the thermoregulator control panel buttons (display)
is presented below. These buttons are multifunctional, i.e., depending on the ope-
rating status of the thermoregulator, and by varying the duration of holding them
down, it is possible to give various commands to the thermoregulator. The de-
scription of the buttons and the thermoregulator functions available with their use
can be found below.
Power ON/OFF button
In the thermoregulator is OFF, touching this button for 3-5 seconds allows
you to configure the advanced A settings.
When the thermoregulator is ON, touching it activates the manual or programma-
ble mode.
Example of correct connection of a thermoregulator
Fig. 7
