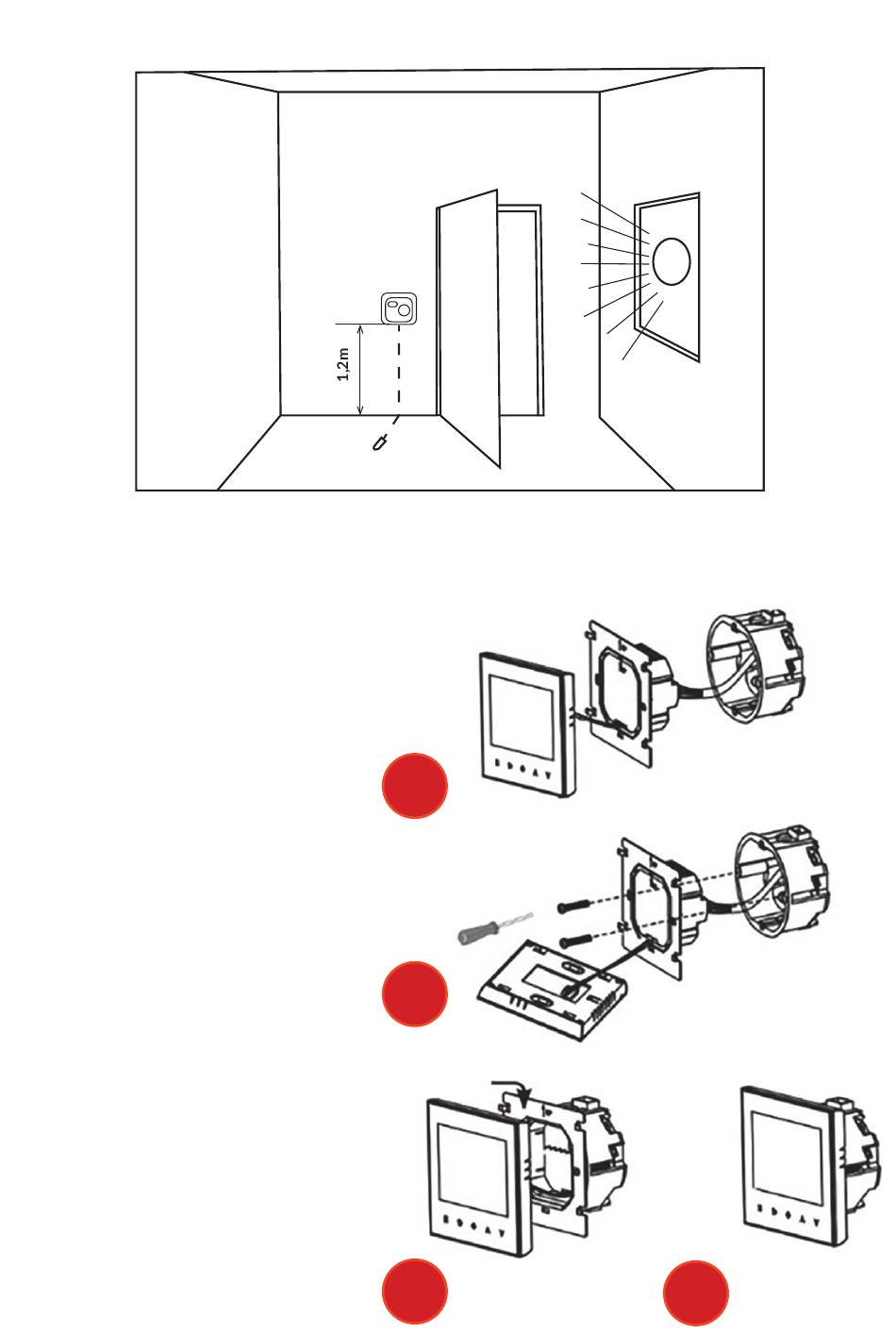

Thermoregulator can be installed in a
standard 86mm wall junction box or in
a 60mm European round junction box.
Fig. 4
1. Connect the power supply and
other wires as shown in the wiring
diagram.
Fig. 5
2. Screw the mounting plate to the
mounting box.
Fig. 6
3. Connect the LCD screen with the
mounting plate.
4. Ready.
sensor
Example of thermoregulator location
