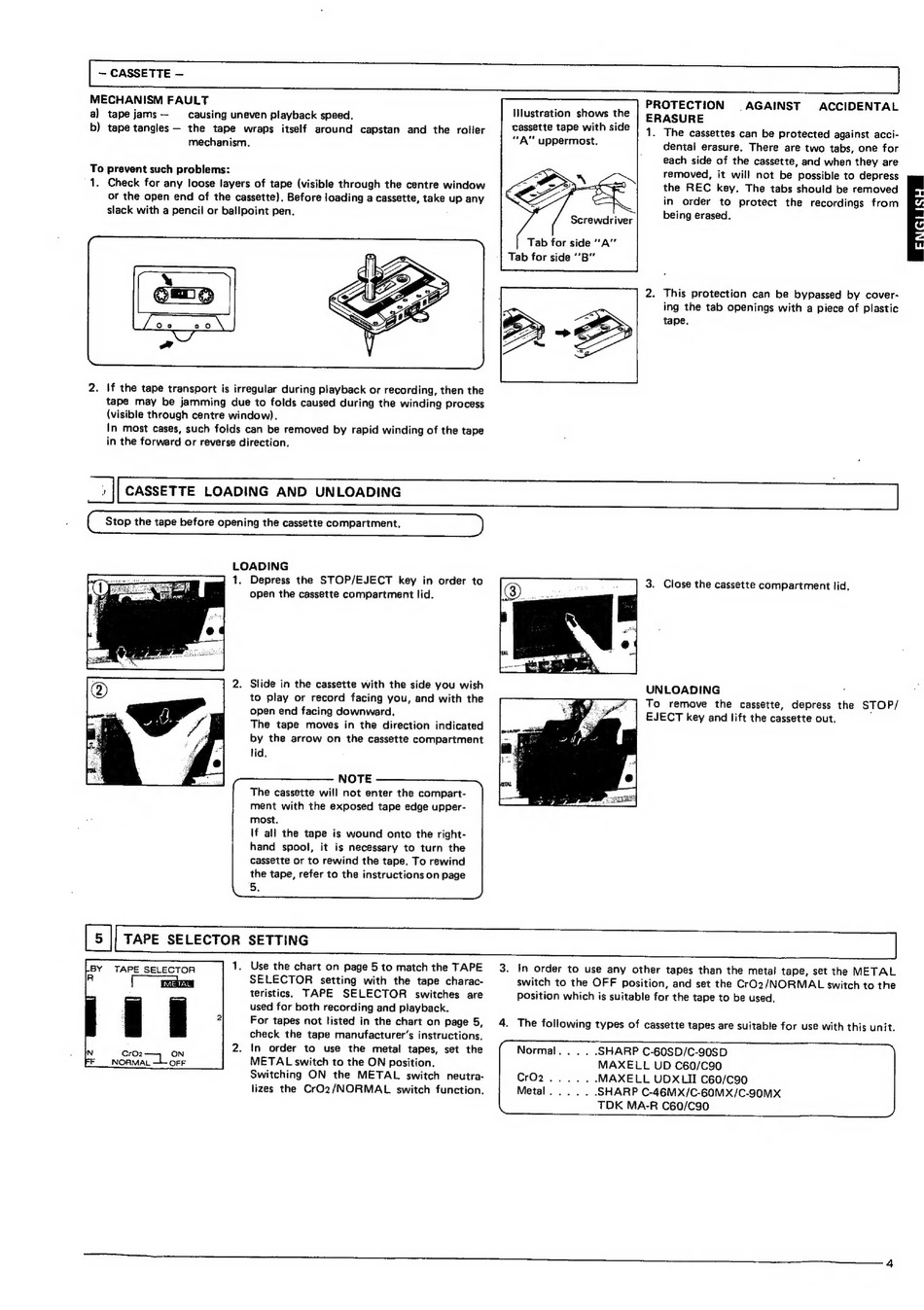

MECHANISM FAULT
a) tape jams — causing uneven playback speed.
b) tape tangles — the tape wraps itself around capstan and the roller
mechanism.
To prevent such problems:
2. If the tape transport is irregular during playback or recording, then the
tape may be jamming due to folds caused during the winding process
(visible through centre window).
In most cases, such folds can be removed by rapid winding of the tape
in the forward or reverse direction.
PROTECTION
ERASURE
. The cassettes can be protected against acci-
dental erasure. There are two tabs, one for
each side of the cassette, and when they are
removed, it will not be possible to depress
the REC key. The tabs should be removed
in order to protect the recordings from
being erased.
i _AGAINST ACCIDENTAL
IIlustration shows the
cassette tape with side 1
"A" uppermost.
Screwdriver
Tab for side "A"
Tab for side ""B"
. This protection can be bypassed by cover-
ing the tab openings with a piece of plastic
tape.
| CASSETTE LOADING AND UNLOADING
Stop the tape before opening the cassette compartment.
LOADING
1. Depress the STOP/EJECT key in order to
open the cassette compartment lid.
2. Slide in the cassette with the side you wish
to play or record facing you, and with the
open end facing downward.
The tape moves in the direction indicated
by the arrow on the cassette compartment
lid.
NOTE
The cassette will not enter the compart-
ment with the exposed tape edge upper-
most.
lf all the tape is wound onto the right-
it is necessary to turn the
hand spool,
cassette or to rewind the tape. To rewind
the tape, refer to the instructions on page
5.
BY TAPE — =
R
CrO2
NORMA okcore OFF
3. Close the cassette compartment lid,
UNLOADING
To remove the cassette, depress the STOP/
EJECT key and lift the cassette out.
SHARP C-60SD/C-90SD
MAXELL UD C60/C90
MAXELL UDXLII C60/C90
SHARP C-46MX/C-60MX/C-90MX
TDK MA-R C60/C90
