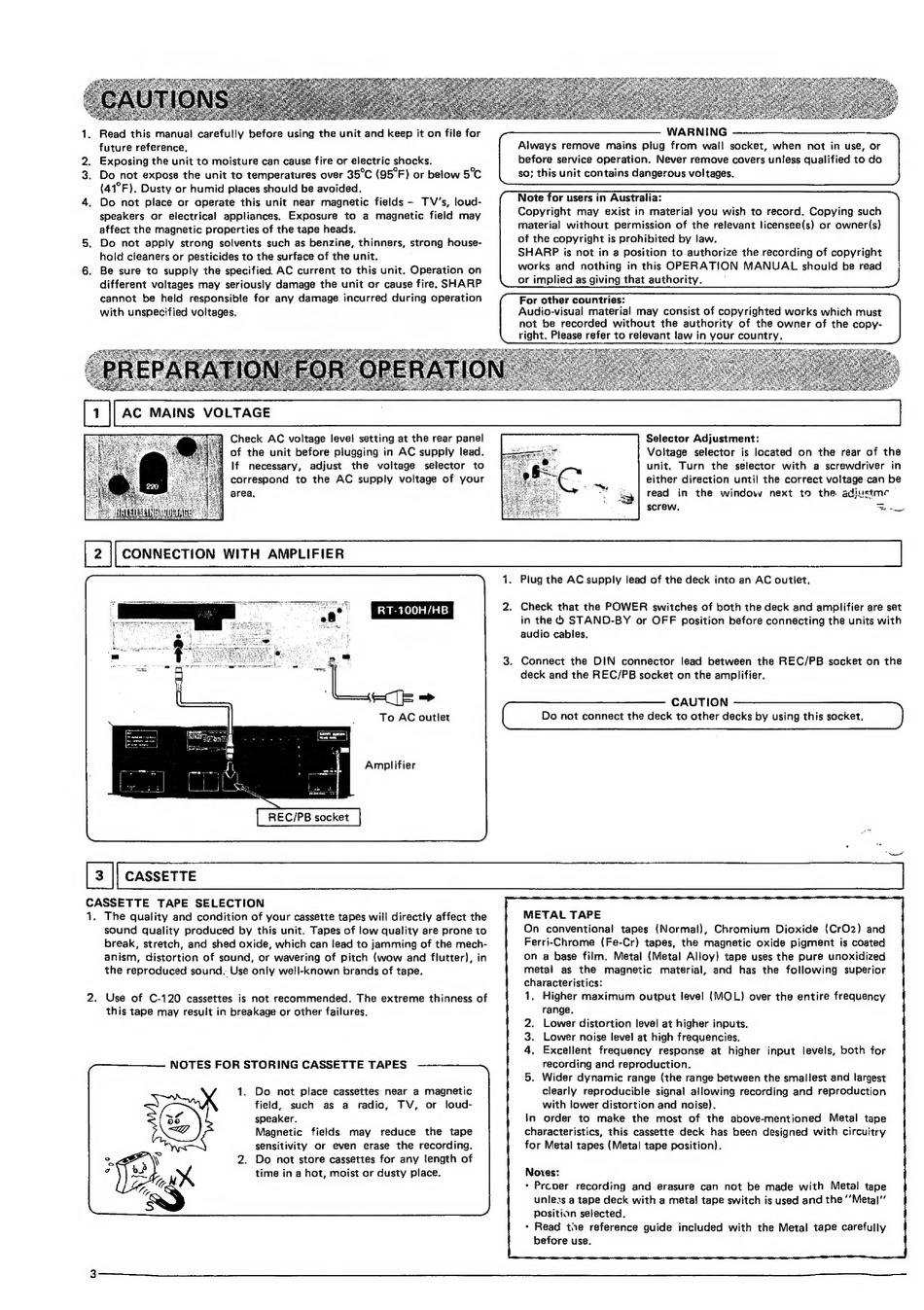

Sharp RT-100H Bedienungsanleitung Seite 4

1. Read this manual carefully before using the unit and keep it on file for
future reference,
2. Exposing the unit to moisture can cause fire or electric shocks.
3. Do not expose the unit to temperatures over 35°C (95°F) or below 5°C
(41°F). Dusty or humid places should be avoided.
4. Do not place or operate this unit near magnetic fields - TV's, loud-
speakers or electrical appliances. Exposure to a magnetic field may
affect the magnetic properties of the tape heads.
5. Do not apply strong solvents such as benzine, thinners, strong house-
hold cleaners or pesticides to the surface of the unit.
6. Be sure to supply the specified. AC current to this unit. Operation on
different voltages may seriously damage the unit or cause fire. SHARP
cannot be held responsible for any damage incurred during operation
with unspecified voltages.
WARNING
Always remove mains plug from wall socket, when not in use, or
before service operation. Never remove covers unless qualified to do
so; this unit contains dangerous voltages.
Note for users in Australia:
Copyright may exist in material you wish to record. Copying such
material without permission of the relevant licensee(s) or owner(s)
of the copyright is prohibited by law.
SHARP is not in a position to authorize the recording of copyright
works and nothing in this OPERATION MANUAL should be read
or implied as giving that authority.
For other countries:
Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copy-
right. Please refer to relevant law in your country.
Check AC voltage level setting at A rear panel
of the unit before plugging in AC supply lead.
lf necessary, adjust the voltage selector to
correspond to the AC supply voltage of your
area.
=k >
To AC outlet
Amplifier
REC/PB socket
[3 | CASSETTE
CASSETTE TAPE SELECTION
1. The quality and condition of your cassette tapes will directly affect the
sound quality produced by this unit. Tapes of low quality are prone to
break, stretch, and shed oxide, which can lead to jamming of the mech-
anism, distortion of sound, or wavering of pitch (wow and flutter), in
the reproduced sound. Use only well-known brands of tape.
2. Use of C-120 cassettes is not recommended. The extreme thinness of
this tape may result in breakage or other failures.
NOTES FOR STORING CASSETTE TAPES
1. Do not place cassettes near a magnetic
field, such as a radio, TV, or loud-
speaker.
Magnetic fields may reduce the tape
sensitivity or even erase the recording.
Do not store cassettes for any length of
time in a hot, moist or dusty place.
Selector Adjustment:
Voltage selector is located on the rear of the
unit. Turn the selector with a screwdriver in
either direction until the correct voltage can be
read in the window next to the adjustme
screw. Re
ed
1. Plug the AC supply lead of the deck into an AC outlet.
2. Check that the POWER switches of both the deck and amplifier are set
in the © STAND-BY or OFF position before connecting the units with
audio cables,
3. Connect the DIN connector lead between the REC/PB socket on the
deck and the REC/PB socket on the amplifier.
CAUTION
| Do not connect the deck to other decks by using this socket,
METAL TAPE
On conventional tapes (Normal), Chromium Dioxide (CrO2) and
Ferri-Chrome (Fe-Cr) tapes, the magnetic oxide pigment is coated
on a base film. Metal (Metal Alloy) tape uses the pure unoxidized
metal as the magnetic material, and has the following superior
characteristics:
1. Higher maximum output level (MOL) over the entire frequency
range.
2. Lower distortion level at higher inputs.
3. Lower noise level! at high frequencies.
4. Excellent frequency response at higher input levels, both for
recording and reproduction.
5. Wider dynamic range (the range between the smallest and largest
clearly reproducible signal allowing recording and reproduction
with lower distortion and noise).
In order to make the most of the above-mentioned Metal tape
characteristics, this cassette deck has been designed with circuitry
for Metal tapes (Metal tape position).
Notes:
Prcoer recording and erasure can not be made with Metal tape
unless a tape deck with a metal tape switch is used and the ''Metal"'
Position selected.
Read tne reference guide included with the Metal tape carefully
before use.
