3. Mount the bead-breaker blade to the bead-breaker
arm by means of the included fastening material.
i
The movement of the bead-breaker blade must have
a certain friction.
2
4
3

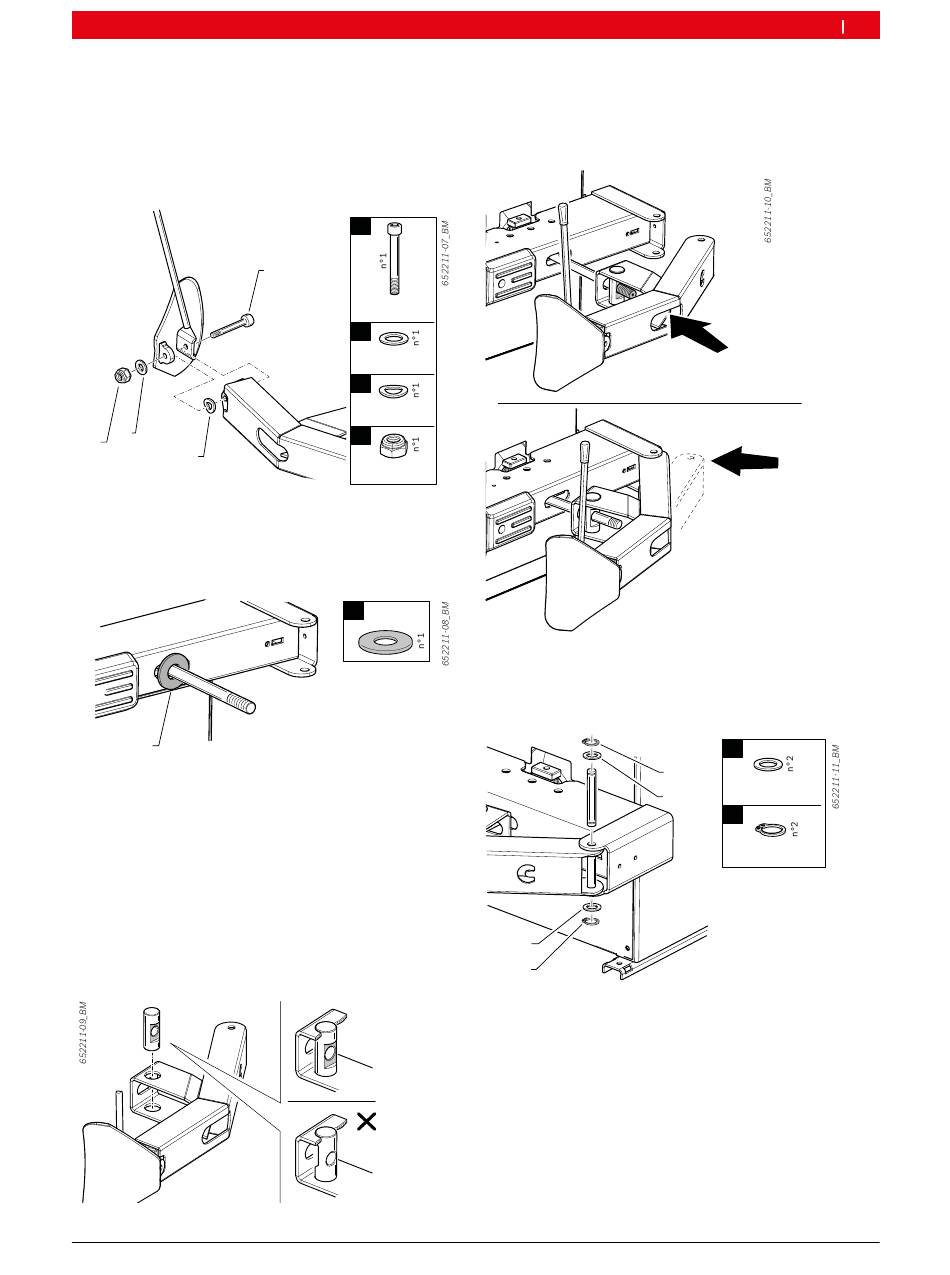

Fig. 34: Mounting the bead-breaker blade
4. Position the nylon washer on the pin of the bead-
breaker cylinder at the output port of the housing.
1
Fig. 35: Positioning the nylon washer
5. Insert the joint pin for the bead breaker into
the corresponding seat with the flat side facing
outwards.
i
The seat for the joint pin of the bead breaker is
a through hole. Place one hand under the seat to
prevent the pin from falling out in the first assembly
phase.
Fig. 36: Correct position of the joint pin for the bead breaker
SICAM srl soc. Unip
1
1
M12x90
2
Ø12
3
Ø12
4
M12
1
OK
Initial Operation | FALCO EVO 620 S (IT) | 57
6. Insert the pin for the bead breaker into the seat on
the bead-breaker arm.
7. Position the rear part of the bead-breaker arm close
to the joint holes on the tire changing machine.
Fig. 37: Positioning the bead-breaker arm
8. Secure the bead-breaker arm to the tire changing
machine using the included fastening material.
2
1
1
2
Fig. 38: Fastening the bead-breaker arm
9. Place the locknut on the pin of the bead-breaker
cylinder.
en
1
16,5x27x2,5
2
Ø16
|
