Item Name
1 Rim-chuck plate operating pedal Rotation of the rim-chuck plate for machine version with drive motor:
2 Pedal for bead-breaker unit
3 Pedal for clamp claws
4 Pedal for tilting mounting
column
5 WIKA tire inflation gun with
pressure gauge
EURODAINU tire inflation gun
with double-scale pressure
gauge (psi/bar) (C01 - C02).
6 Bead-breaker arm
7 Bead-breaker arm lever
8 Bead-breaker blade
9 Plastic supports
10 Tilting mounting column
11 Horizontal sliding arm
12 Extendable vertical slide
13 Locking knob
14 Assembly tool
15 Roller
16 Rim-chuck plate
17 Guide rails
18 Clamp claws
19 Bead lifter
20 Lubricant container
21 Filter unit
22 Pedal for tire inflator
(on the left side of the machine)
23 Tire inflation pressure gauge
24
Tire deflation key
25 Inflation hose
26 Compressed air tank
27 Pneumatic cylinder

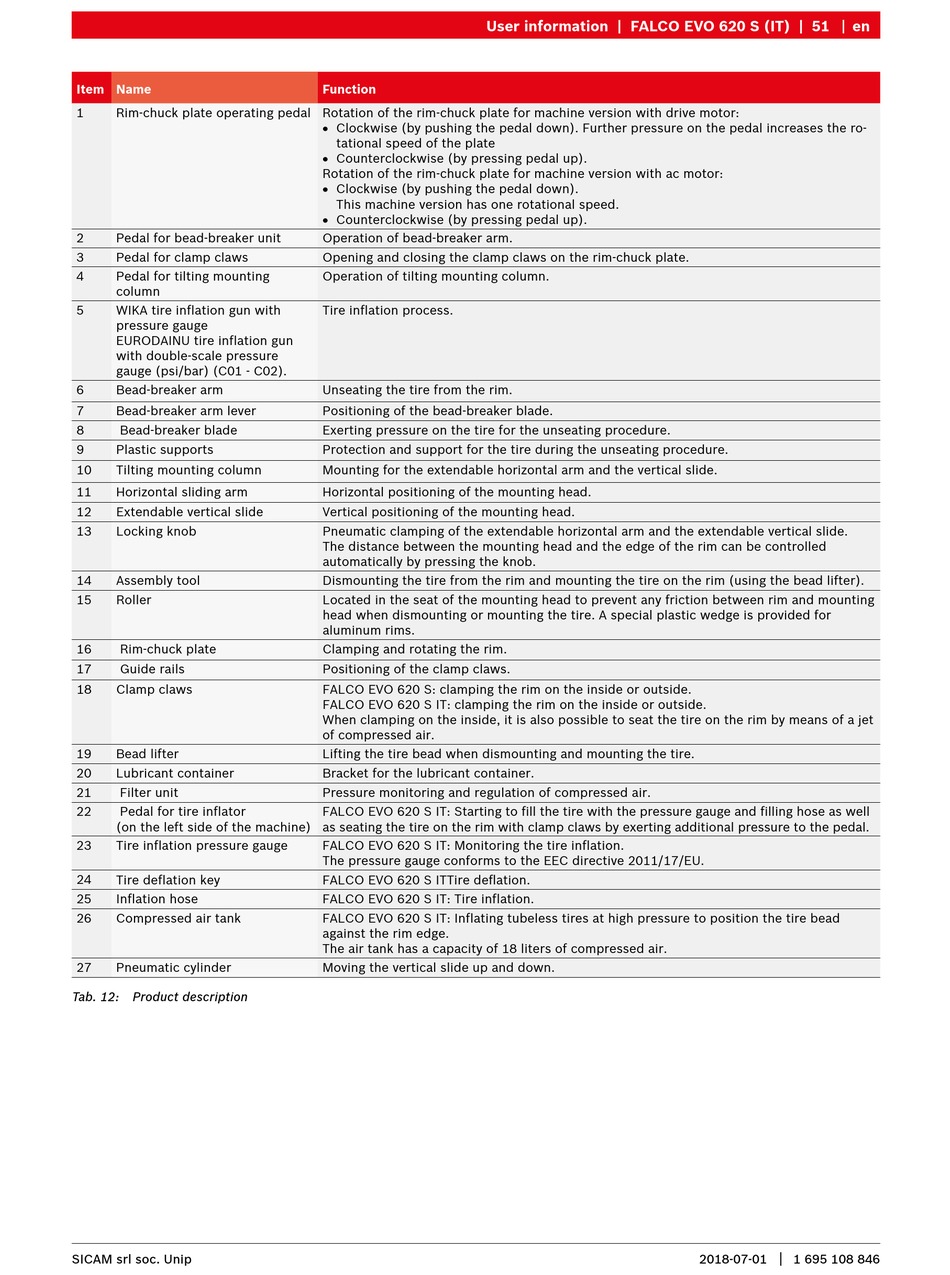

Tab. 12: Product description
SICAM srl soc. Unip
User information | FALCO EVO 620 S (IT) | 51
Function
R Clockwise (by pushing the pedal down). Further pressure on the pedal increases the ro-
tational speed of the plate
R Counterclockwise (by pressing pedal up).
Rotation of the rim-chuck plate for machine version with ac motor:
R Clockwise (by pushing the pedal down).
This machine version has one rotational speed.
R Counterclockwise (by pressing pedal up).
Operation of bead-breaker arm.
Opening and closing the clamp claws on the rim-chuck plate.
Operation of tilting mounting column.
Tire inflation process.
Unseating the tire from the rim.
Positioning of the bead-breaker blade.
Exerting pressure on the tire for the unseating procedure.
Protection and support for the tire during the unseating procedure.
Mounting for the extendable horizontal arm and the vertical slide.
Horizontal positioning of the mounting head.
Vertical positioning of the mounting head.
Pneumatic clamping of the extendable horizontal arm and the extendable vertical slide.
The distance between the mounting head and the edge of the rim can be controlled
automatically by pressing the knob.
Dismounting the tire from the rim and mounting the tire on the rim (using the bead lifter).
Located in the seat of the mounting head to prevent any friction between rim and mounting
head when dismounting or mounting the tire. A special plastic wedge is provided for
aluminum rims.
Clamping and rotating the rim.
Positioning of the clamp claws.
FALCO EVO 620 S: clamping the rim on the inside or outside.
FALCO EVO 620 S IT: clamping the rim on the inside or outside.
When clamping on the inside, it is also possible to seat the tire on the rim by means of a jet
of compressed air.
Lifting the tire bead when dismounting and mounting the tire.
Bracket for the lubricant container.
Pressure monitoring and regulation of compressed air.
FALCO EVO 620 S IT: Starting to fill the tire with the pressure gauge and filling hose as well
as seating the tire on the rim with clamp claws by exerting additional pressure to the pedal.
FALCO EVO 620 S IT: Monitoring the tire inflation.
The pressure gauge conforms to the EEC directive 2011/17/EU.
FALCO EVO 620 S ITTire deflation.
FALCO EVO 620 S IT: Tire inflation.
FALCO EVO 620 S IT: Inflating tubeless tires at high pressure to position the tire bead
against the rim edge.
The air tank has a capacity of 18 liters of compressed air.
Moving the vertical slide up and down.
