2. Installation and Operation

There are two different types of online UPS: standard and long-run models. Please refer to the following
model table.
Model
6K
10K
Parallel function is also available for these two types and related installation and operation of Parallel
function will be described in detail in the following content.
2-1. Unpacking and Inspection
Unpack the package and check the package contents. The shipping package contains:
● One UPS
● One user manual
● One monitoring software CD
● One RS-232 cable (option)
● One USB cable
● One parallel cable (only available for parallel model)
● One share current cable (only available for parallel model)
● One battery cable (option)
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged
during transportation. Do not turn on the unit and notify the carrier and dealer immediately if there is any
damage or lacking of some parts. Please keep the original package in a safe place for future use.

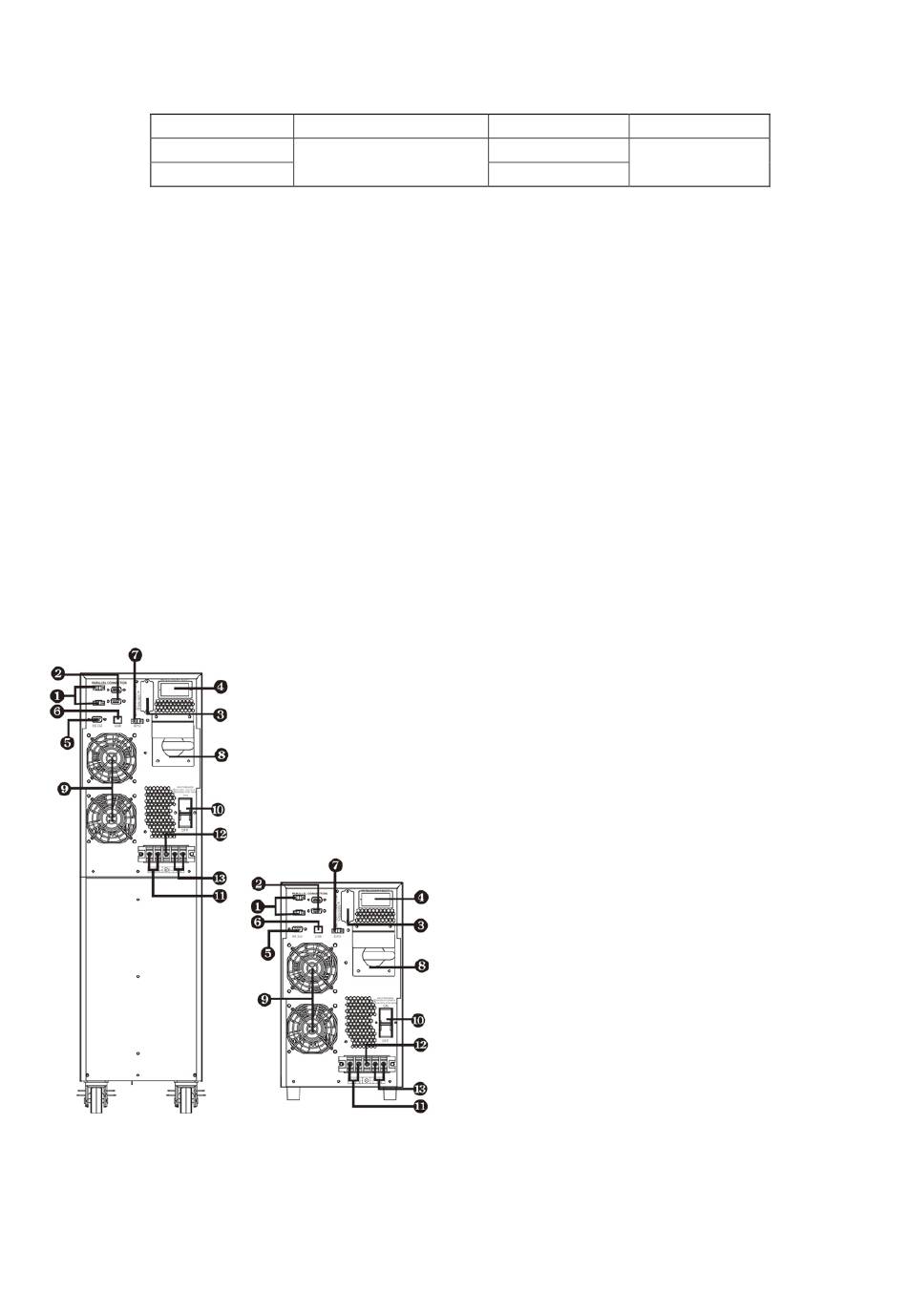

2-2. Rear Panel View

Diagram 1: 6K/10K
Rear Panel
Type
standard model
Diagram 2: 6KL/10KL
Rear Panel
Model
6KL
10KL
1) Share current port (only available for parallel model)
2) Parallel port (only available for parallel model)
3) External battery connector
4) Intelligent slot
5) RS-232 communication port
6) USB communication port
7) Emergency power off function connector (EPO
connector)
8) Maintenance bypass switch
9) Cooling fan
10) Input circuit breaker
11) Output terminals
12) Ground
13) Input terminals
4
Type
Long-run model
