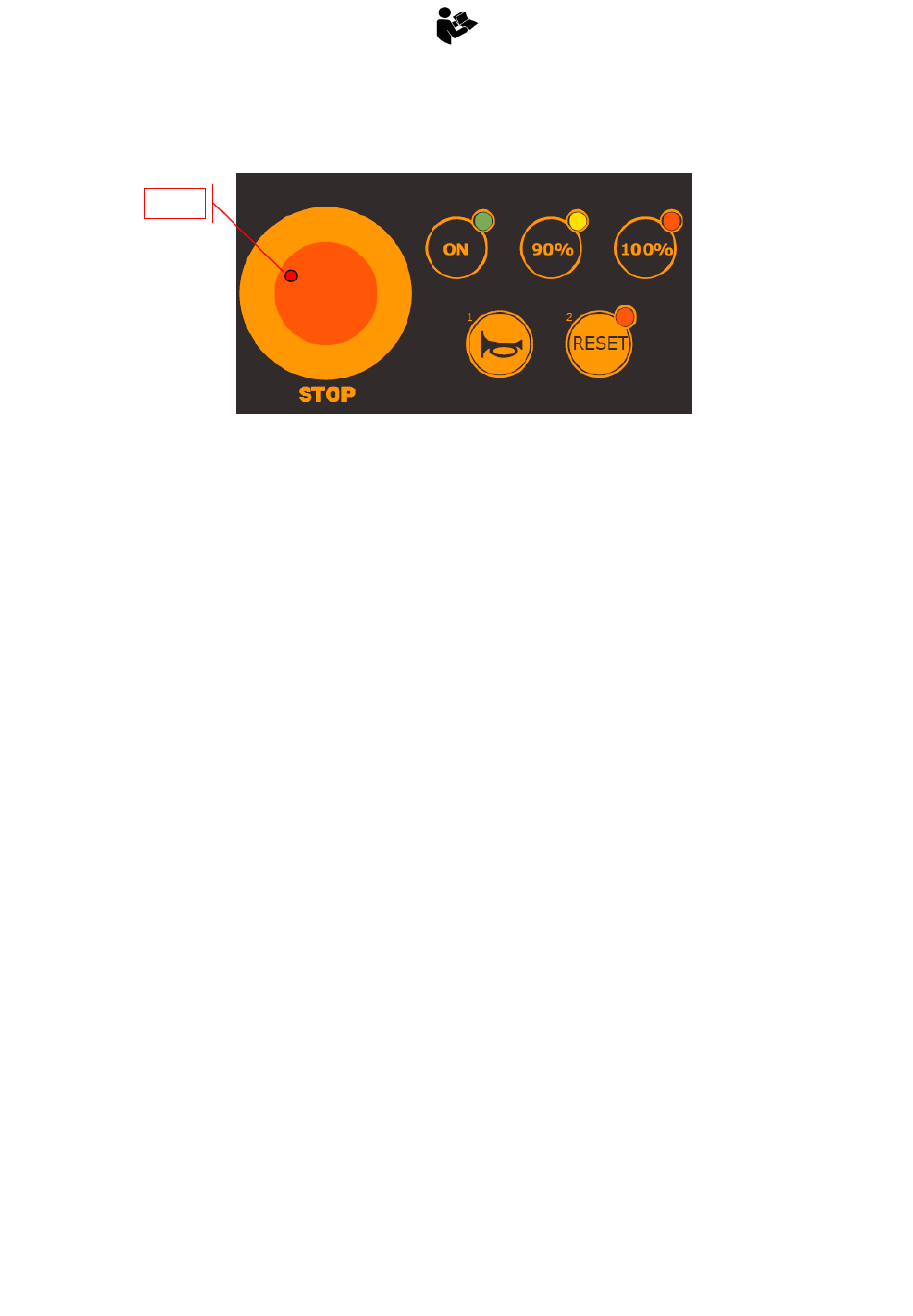

CRUSCOTTO AUSILIARIO TCU
(OPTIONAL)
D
ON) Spia di accensione verde
- se accesa indica impianto elettrico
abilitato
90%) Spia gialla
- Segnala il raggiungimento del 90%
della massima capacità di carico
100%) Spia rossa
- Segnala
il
raggiungimento
massima capacità di carico
D)
STOP: Interruttore di emergenza
rosso
- Premuto disabilita I movimenti della
gru
1) Attivazione clacson automezzo
- Se premuto attiva o disattiva il clacson
autocarro
2)
RESET
- Esegue il reset elettronico della gru
TCU AUXILIARY PANEL
(OPTIONAL)
ON) Alimentation pilot light (green)
- If this is on, the electrical system is
enabled
90%) Yellow light
- If on, the 90% of the max. lifting
capacity is reached.
100%) Red light
della
- If on, the max. lifting capacity is
reached.
D) STOP: Red emergency button
- When pressed, it disables the crane
operations
1) Enabling truck horn
- When pressed it enables or disables
the truck horn
2) RESET
- Performs the crane electronic reset
B-15
HILFSSCHALTTAFEL TCU
(WAHLFREI)
ON) Grüne Zündkontrolllampe
- Wenn Ein, ist die elektrische Anlage
Ein.
90%) Gelbe Kontrolllampe
- Wenn Ein, ist 90% der maximalen
Hubkraft erreicht.
100%) Rote Kontrolllampe
- Wenn Ein, ist die maximale Hubkraft
erreicht.
D) STOP: Roter Not-Aus-Schalter
- Wenn
gedrückt,
werden
Kranbewegungen blockiert
1) Signalhorntaste
- Wenn gedrückt, schaltet sie das Horn
ein oder aus.
2) RESET
- Das führt das elektronische Rück
setzen des Krans aus
