Installation

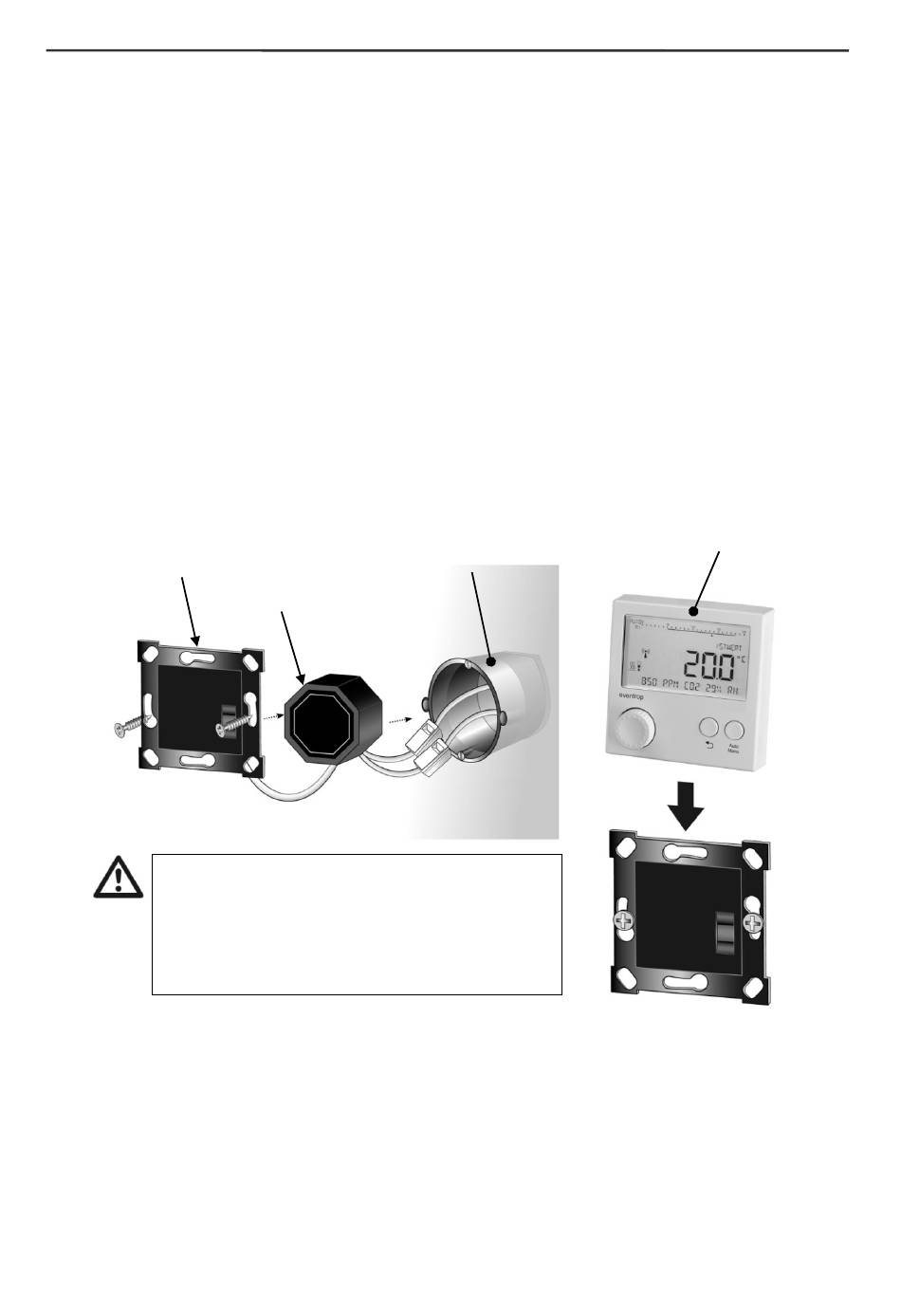

Installation flush-mounted power pack with wall bracket
"R-Tronic" / "i-Tronic TFC"
1. Switch off current supply before installation of the flush-mounted power pack.
2. Assemble the electrical connection between the flush-mounted power pack and
the 230 V connection in the flush socket.
3. Screw the wall bracket to the flush socket.
4. Switch on current supply again.
5. Insert the "R-Tronic" (without batteries) into the wall bracket from the top.
Wall bracket
The flush-mounted mains adaptor has to be
installed so that the primary cables (1) and the
secondary cable (2) do not touch each other.
If necessary, these cables are to be fixed, for in-
stance with a cable retainer in order to guarantee
the physical separation.
Flush socket
Flush-mounted power pack
100-240 V ~ /50-60 Hz
1
2
Secondary cable
Primary cables
230V
3 (4)
Brief instruction
„R-Tronic RTFC K"; „i-Tronic TFC";
option for „RT B / RTF B"
WITHOUT BATTERIES!
