7.4 VOLTAGE CHECK

Check that the voltage of the system corresponds to the mains voltage. If not so, make the appropriate changes to the
electric system and change the voltage of the motor.

7.5 CONNECTING UP TO THE MAINS

Three-phase version: 400V 50Hz 380V 60Hz
Cable cross-section area >= 4 sq mm 3pole + ground P=11KW I=20A
Three-phase version: 230V 50Hz 220V 60Hz
Cable cross-section area >= 6 sq mm 3pole + ground P=11KW I=32A
Also check that there is an automatic break-off device upstream, to safeguard against overloads, fitted with 30 mA protection.

7.6 CONNECTIONS

- Pass the power cable inside the box through the cable grip and connect the wires to the terminal board (see wiring diagram).
First Installation.
Warning: Lift platforms could be misaligned due to packing.
Take platforms to ground (downstroke limit) as described in chapt. 8.5 of the manual.
Any work done on electrical parts, including minor jobs, must be carried out by specialised engineers.

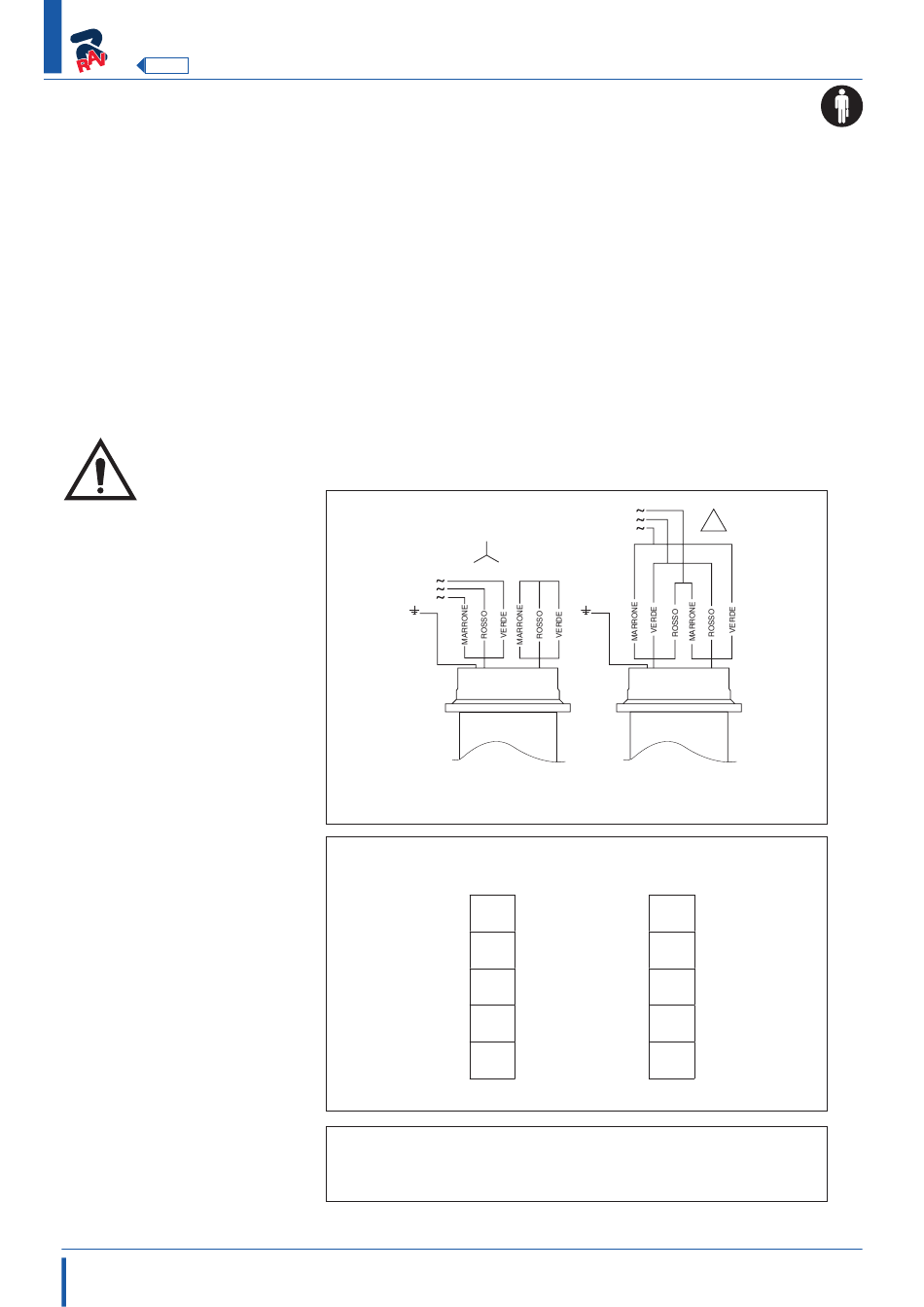

MOTOR CONNECTION

CONNECTING THE TRANSFORMER
The electrical system is preset to work at the voltage shown on the serial number plate.
EN_22 0473-M003-0
FUSES
KPX55LIKTA - KPX55ELIKTA
TENSIONE MAGGIORE
HIGHER VOLTAGE
400V 50Hz
380-480V 60Hz 220-277V 60Hz
230V
24V –– 40
0 –– 9
0 –– 15
230 –– 16
400
230V
32A
TENSIONE MINORE
LOWER VOLTAGE
230V 50Hz
400V
24V –– 40
0 –– 9
0 –– 15
230
400 –– 16
400V
20A
