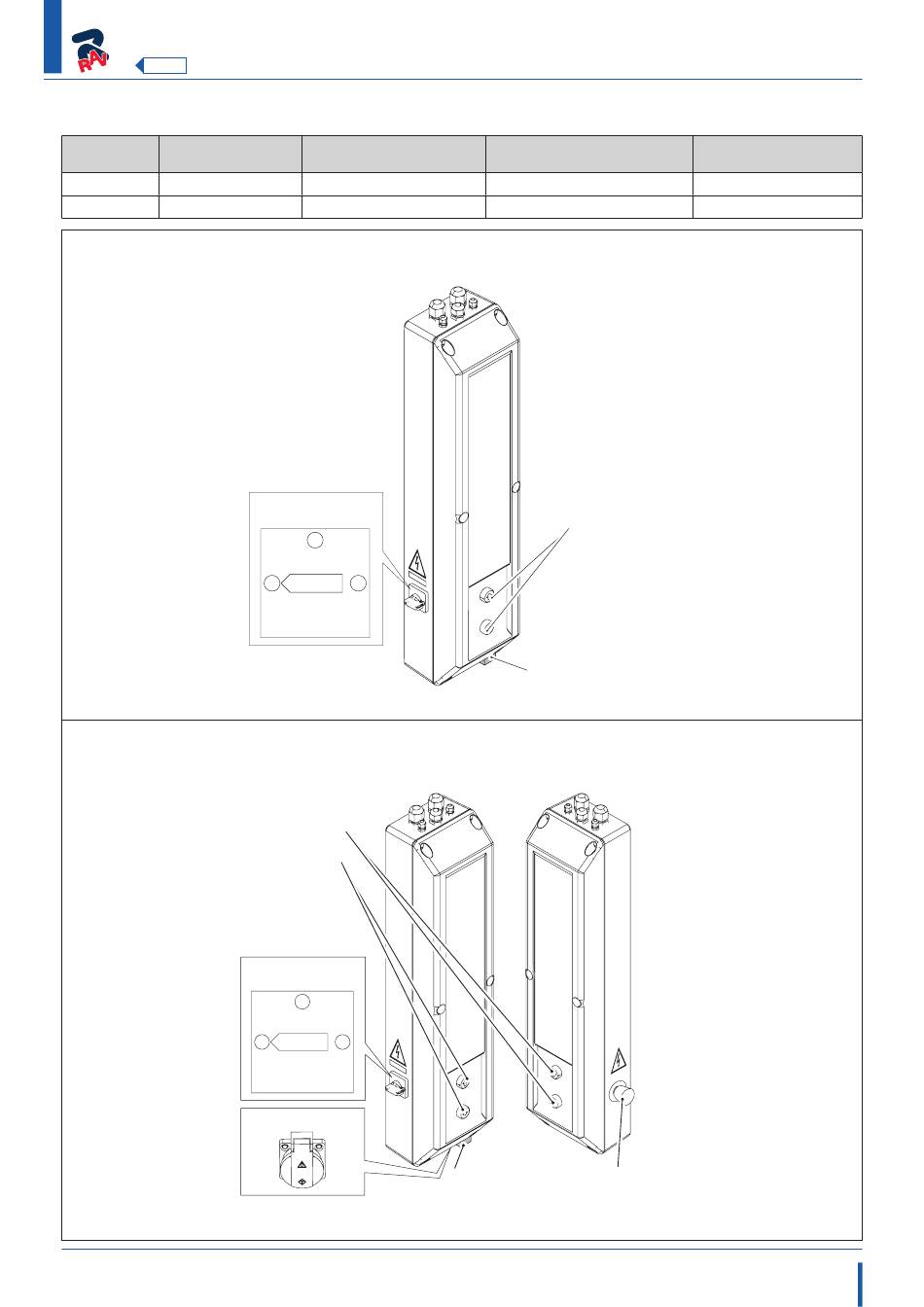

3.4 MAIN CONTROLS OF THE LIFT

The main controls are located in the control box, which changes according to the model. Refer to comparison diagram.
MODEL PN CODE
KPX55LIKTA RAV.KPX55.198945
KPX55ELIKTA RAV.KPX55.198976
047303120
Control box with switch and up/down push-buttons.
047303130 / 047303110
Double control box with switch, up and down push-buttons, emergency button.
CONTROL BOX
PART NO.
047303120
047303130
SWITCH
1
0 2
UP
DOWN
PUSH-BUTTONS
SWITCH
1
0 2
SOCKET
KPX55LIKTA - KPX55ELIKTA

JUNCTION BOX

PART NO.
047303021
047303110 (control box)
UP
DOWN
PUSH-BUTTONS
ACOUSTIC
WARNING
EMERGENCY
ACOUSTIC
BUTTON
WARNING

ELECTRICAL SYSTEM

PART NO.
047305510
047305530
0473-M003-0 EN_7
