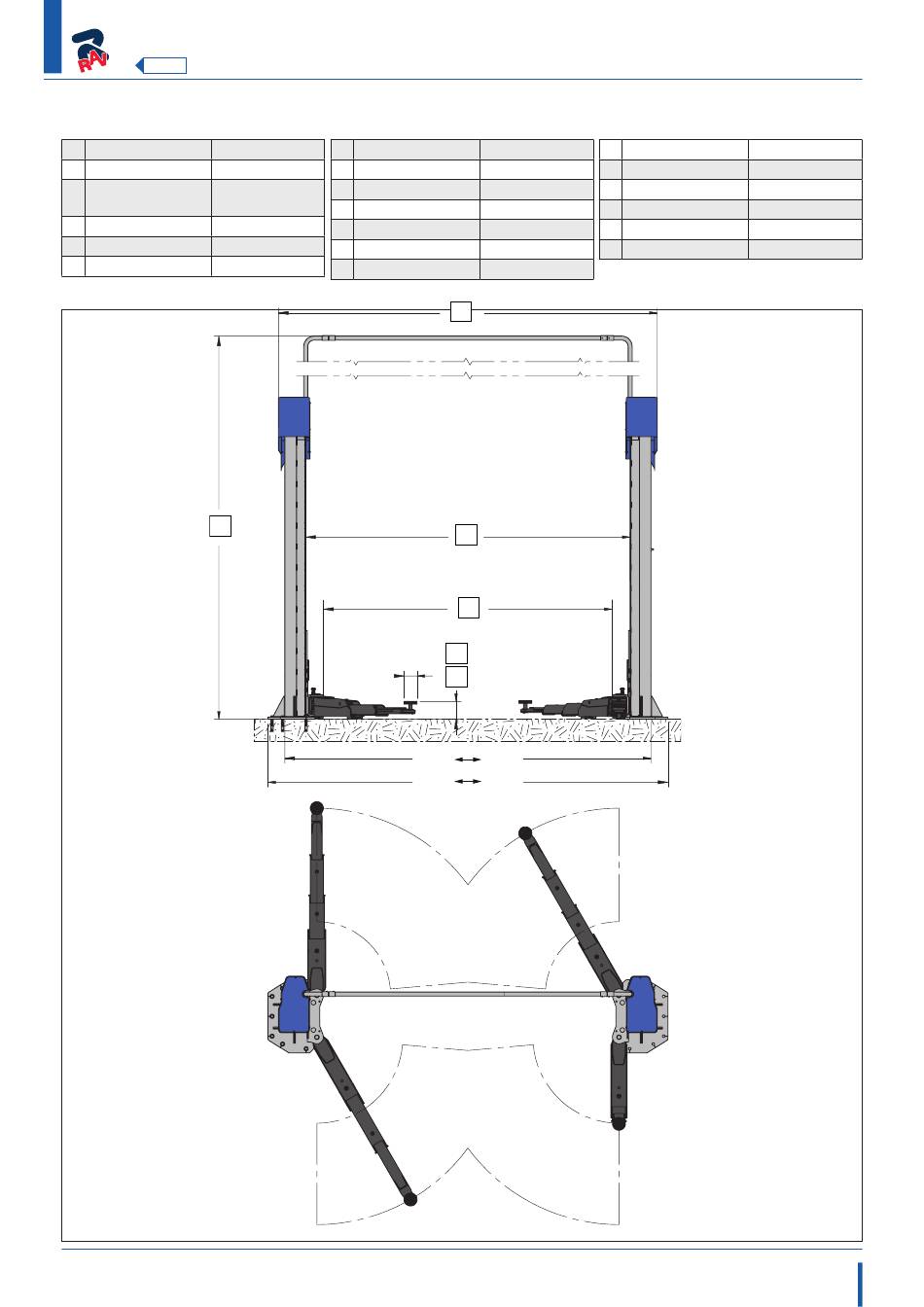

3.2 GENERAL TECHNICAL DETAILS

KPX55LIKTA - KPX55ELIKTA
Number of columns 2
Lifting Capacity 5500 kg
Required ceiling 5300 mm
height
A Height overall 5210 mm
B Outside columns 3622 mm
C Inside columns 3100-3000 mm
A
D Drive-Thru 2762-2662 mm
Front Arm Min 705 mm
Front Arm Max 1790 mm
Rear Arm Min 822 mm
Rear Arm Max 1791 mm
E Max. pad Height 169 mm
F Min. pad Height 114 mm
B
C
D
E
F
Ø124
3500 3400
3824 3724
KPX55LIKTA - KPX55ELIKTA
Lifting height max. 2039 mm
Rise 1865 mm
Lifting/lowering time 58 secs.
Power supply 400 V|50 Hz|3Ph
Driving power 2x3.5 Kw
Weight 1200 kg
