1.6.3 FAN Power Connectors

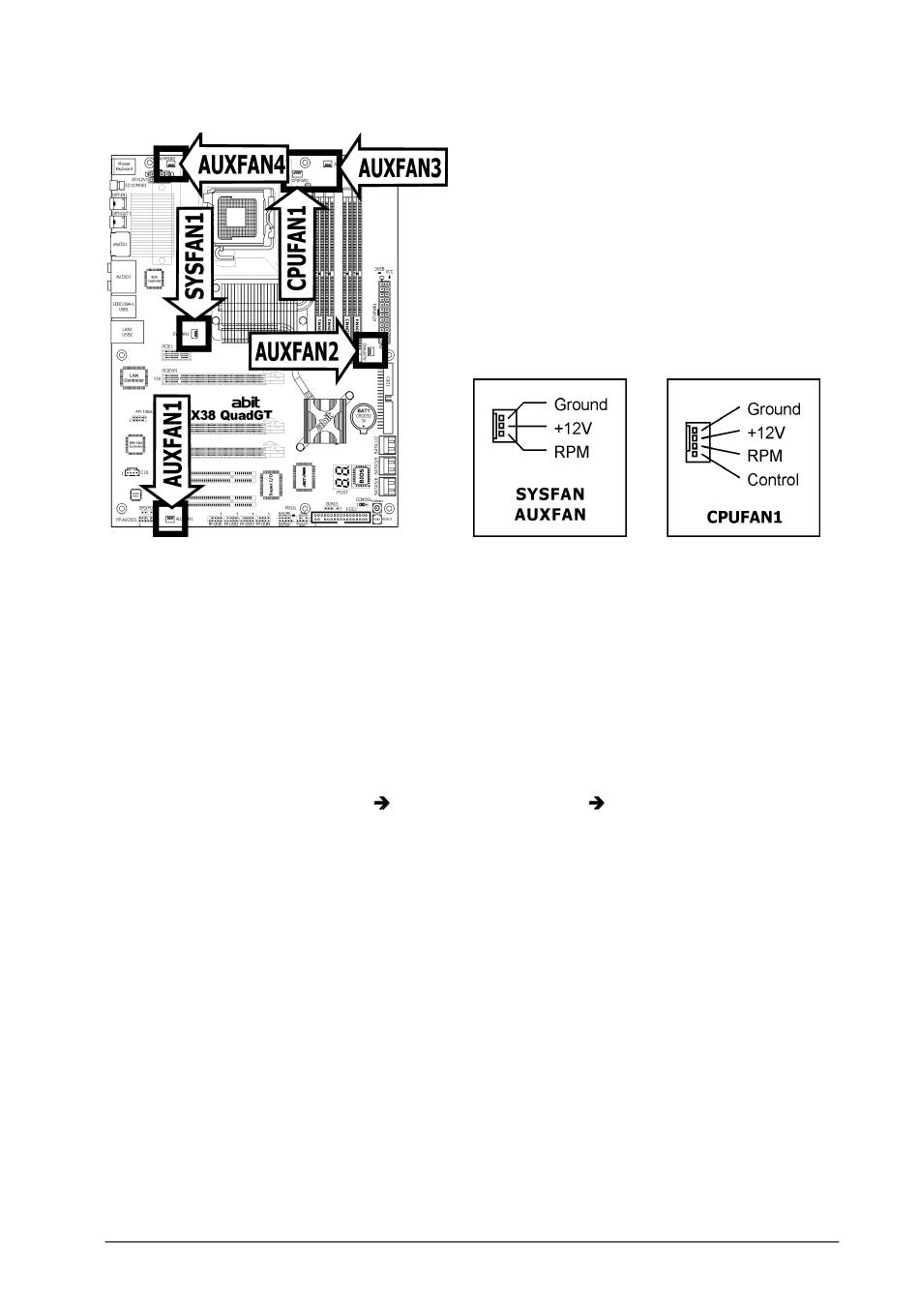

These connectors each provide power to the cooling fans installed in your system.
• CPUFAN1: CPU Fan Power Connector
•
SYSFAN1: System Fan Power Connector
• AUXFAN1~4: Auxiliary Fan Power Connector
These fan connectors are not jumpers. DO NOT place jumper caps on these
※
connectors.
3-pin
Either a or
※
is still capable of having its fan speed controlled. Please refer to the BIOS setup
route: "PC Health Status"
the one of your own.
1-8
All manuals and user guides at all-guides.com
4-pin
CPU cooling fan connected to the "CPUFAN1" connector
"ABIT FanEQ Control" "CPU FAN Type" to select
IX38 QuadGT
