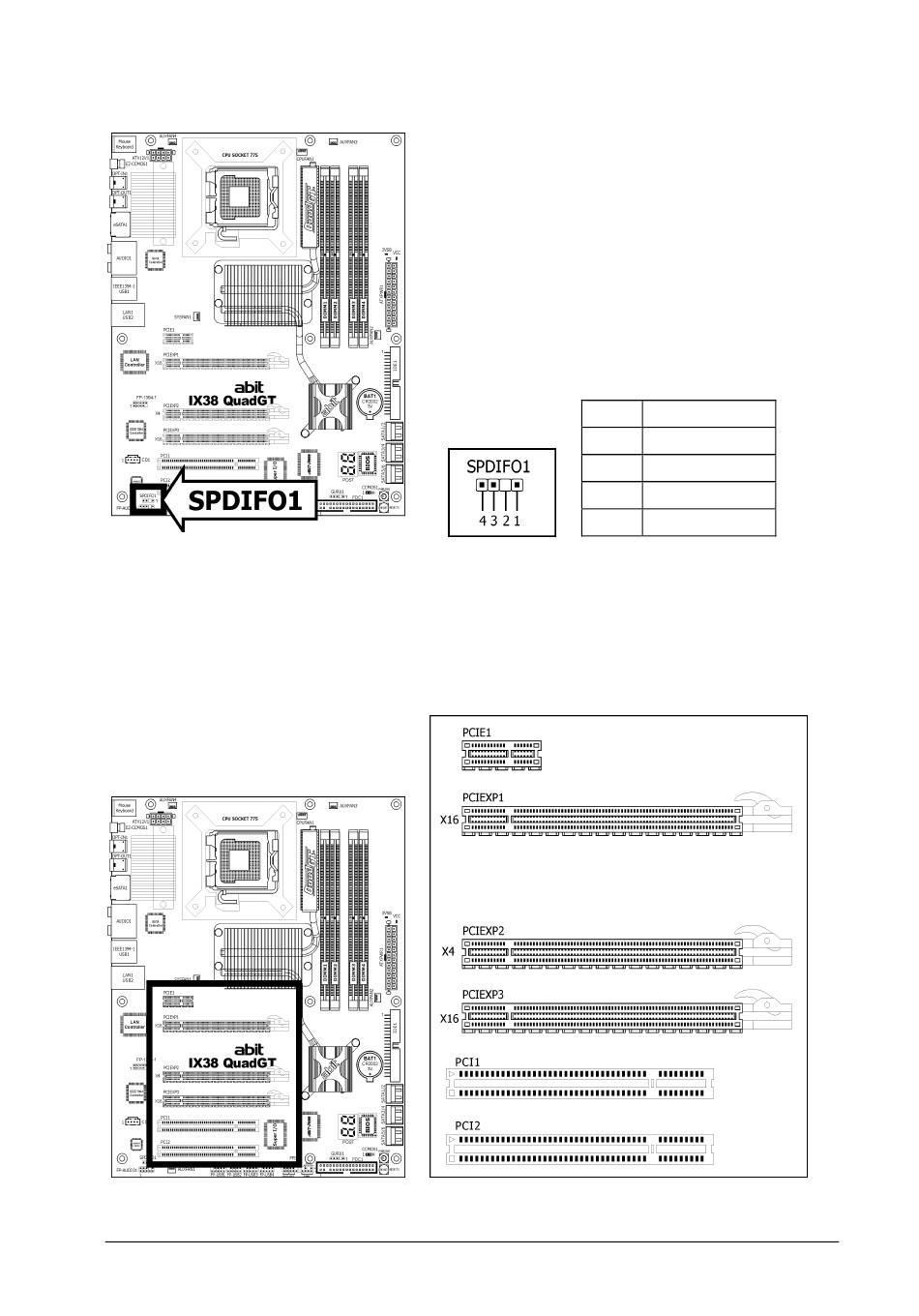

1.8.7 S/PDIF Output Connection Header

This header provides the S/PDIF output connection to your add-on HDMI VGA card.

1.8.8 PCI and PCI Express X1 Slots

Install PCI Express X1 cards into slot "PCIE1".
Install PCI Express X4 cards into slot "PCIEXP2".
Install PCI cards into slots "PCI1" and/or "PCI2".
1-18
All manuals and user guides at all-guides.com
Pin Pin Assignment
1 VCC (5V)
2 x
3 S/PDIF Out
4 Ground
IX38 QuadGT
