Installation instructions, only for experts

4.2. Safety distances

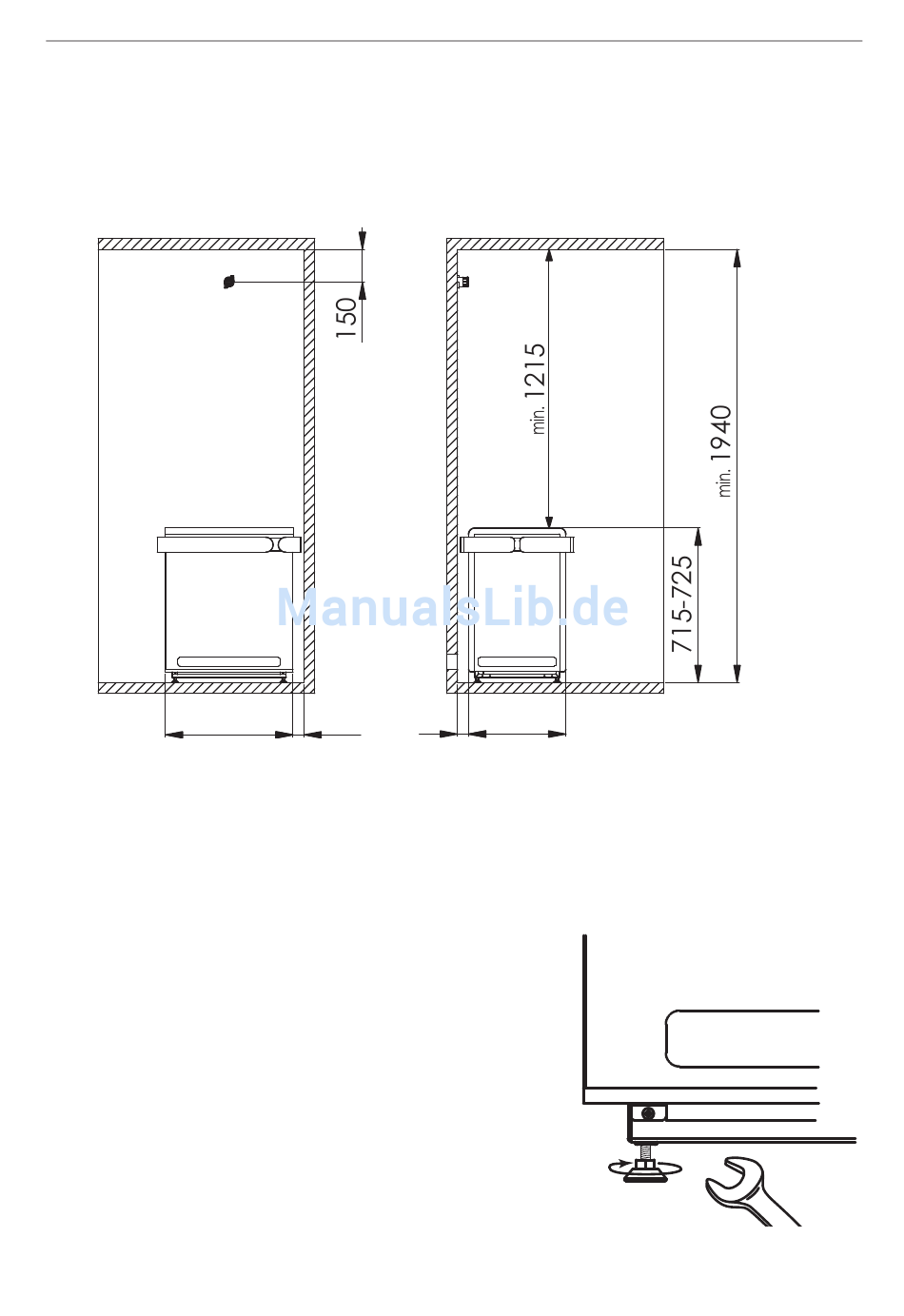

Observe the minimum safety distances specified in Fig. 1.
Fig. 1 Safety distances for Concept R combi 9 kW and 10.5 kW
(CP-RC-090 / CP-RC-105 / CP-RCB-090 / CP-RCB-105)
590

4.3. Adjusting the height

The Concept R combi sauna heater has height-adjustable feet. The height can
therefore be set between 715 mm and 725 mm. Each foot can be set individually,
making it possible to adjust the sauna heater for uneven floors.
1. Loosen the sauna heater foot using an open-
ended spanner (13 mm).
2. Lift the sauna heater slightly and turn the foot
to the right to reduce the height. Turn to the
left to increase the height.
3. Retighten the foot using the open-ended
spanner.
WORLD OF WELLNESS
50 50
min. min.
450
Dimensions in mm
p. 12/26
