Connect The Sensor In A Non-Hazardous Location - Hach LDO Benutzerhandbuch

Explosion hazard. Do not connect or disconnect electrical components or circuits to the equipment
unless power has been removed or the area is known to be non-hazardous.
Use only a hazardous location certified sensor and cable lock in hazardous locations. The hazardous location
certified version of this product does not fulfill the requirements of the 94/9/EC Directive (ATEX Directive).
For more information, refer to
1. Remove the connector cap from the controller. Keep the connector cap to seal the connector
opening when the sensor is removed.
2. Connect the sensor to the controller. Refer to the controller manual for more information.
3. Close the safety lock over the connector.
4. To remove the connector safety lock, use a small flat screwdriver. Refer to

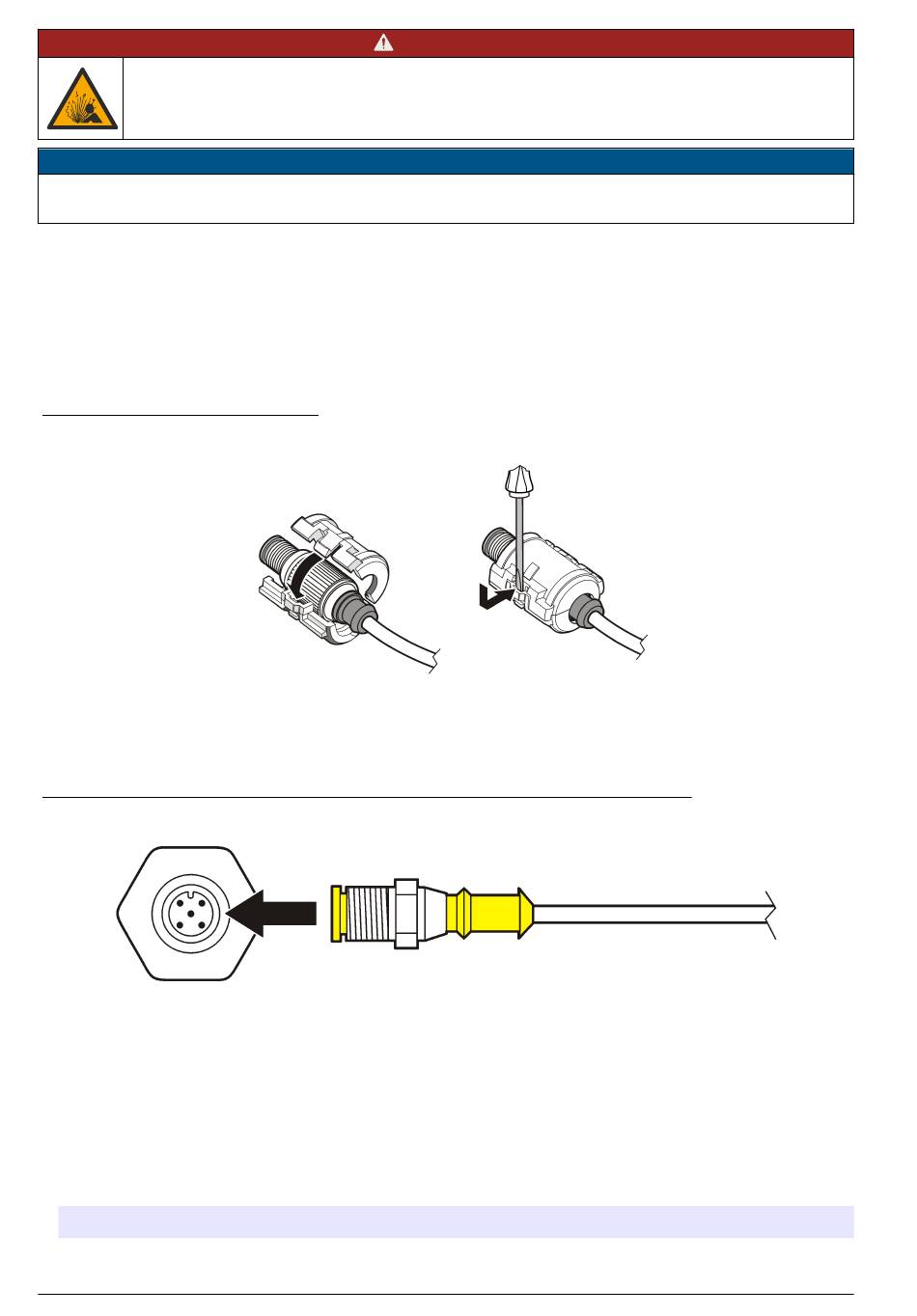

Figure 3 Connector safety lock

3.3 Connect the sensor in a non-hazardous location

Refer to Figure 4 to connect an LDO sensor to an sc controller. Refer to the specific sc controller
manual for hard-wiring instructions.
Figure 4 Connect the LDO sensor (non-hazardous location sensor shown)
After the sensor is attached, scan for the sensor. Refer to
3.4 Install the sensor
There are two options to install the sensor:
• Connect the sensor while power to the controller is off. The controller will look for and install new
sensors when it is turned on.
• Connect the sensor while power to the controller is on. Use the Scan Devices command to install
the new sensor:
Option Description
sc200 controller Go to MENU>TEST/MAINT>SCAN DEVICE
8 English
D A N G E R
N O T I C E
Validate the sensor type on page 7 .
Install the sensor on page 8.
Figure 3.
