INSTALLATION

4.1

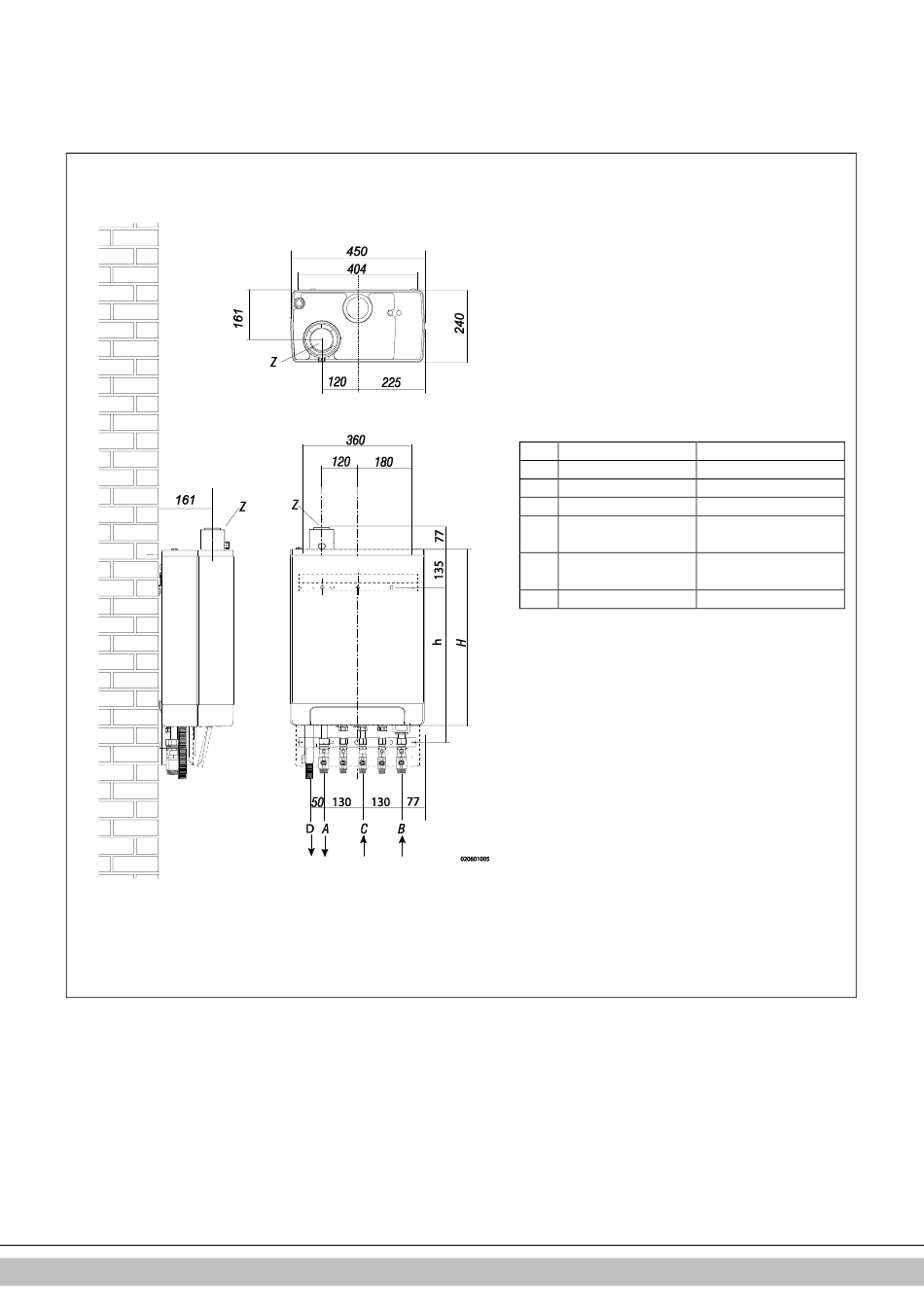

Installation measurements

Boiler mounted directly to the wall:
Daikin Europe NV
Unit + mounting bracket
A = Supply CH
B = Return CH
C = Gas
D = Condense outlet
h = 517mm
H = 590mm
Z = Flue gas outlet/air inlet
G ¾" (ext)
G ¾" (ext)
G ½" (int)
Ø dn25 (flexible)
EHOBG12ABV1
EHOBG18ABV1
EHOBG12ABV1
EHOBG18ABV1
Ø60/100 (concentric)
11
