Daikin EHOBG12ABV1 Installationsanleitung Seite 11

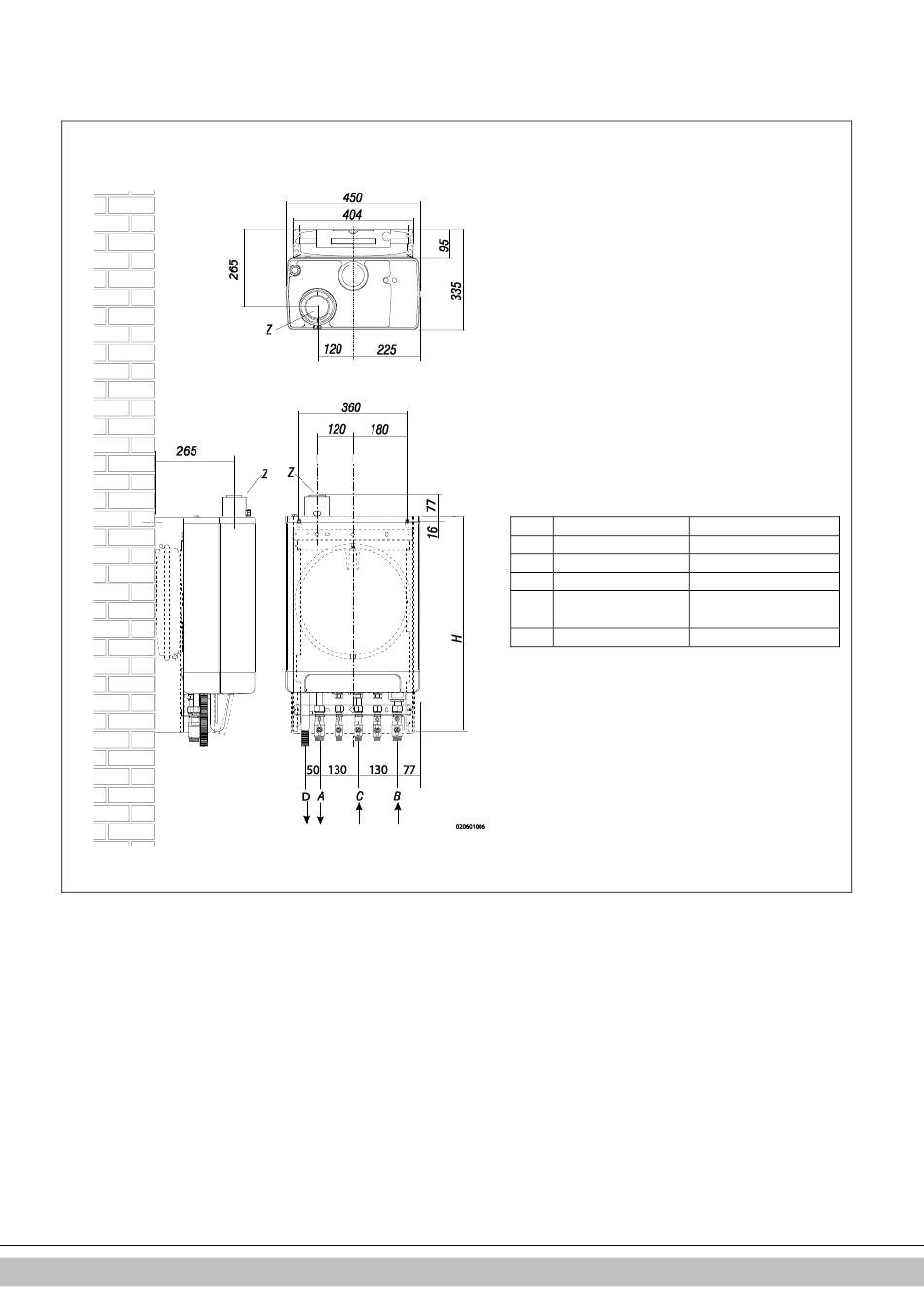

Unit connected to B-pack:
Daikin Europe NV
Unit + B-pack
A = Supply CH
B = Return CH
C = Gas
D = Condense outlet
H = 770mm
Z = Flue gas outlet/air inlet
G ¾" (ext)
G ¾" (ext)
G ½" (int)
Ø dn25 (flexible)
EHOBG12ABV1
EHOBG18ABV1
Ø60/100 (concentric)
