4

INSTALLATION

4.1

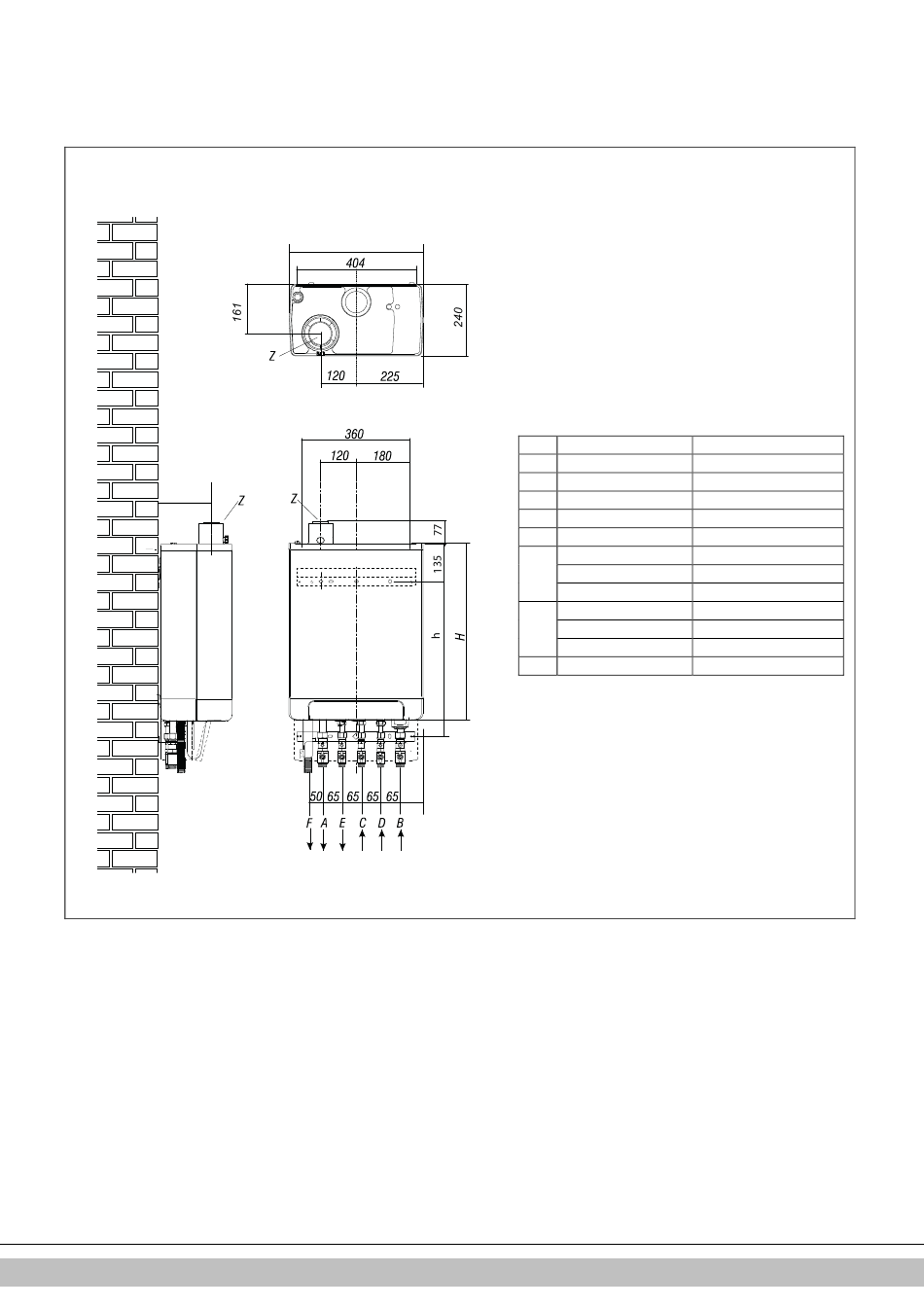

Installation measurements

Unit with pipes connected downwards:
161
Daikin Europe NV
450
77
020601002
Unit + wall mounting strip
A = Supply CH G ¾" (ext)
B = Return CH G ¾" (ext)
C = Gas G ½" (int)
D = Tap water cold R ½"
E = Tap water warm R ½"
F = Condense outlet Ø dn25 (flexible)
h= 517mm EKOMBG22ABV1
577mm EKOMBG28ABV1
637mm EKOMBG33ABV1
H= 590mm EKOMBG22ABV1
650mm EKOMBG28ABV1
710mm EKOMBG33ABV1
Z = Flue gas outlet/air inlet Ø60/100 (concentric)
