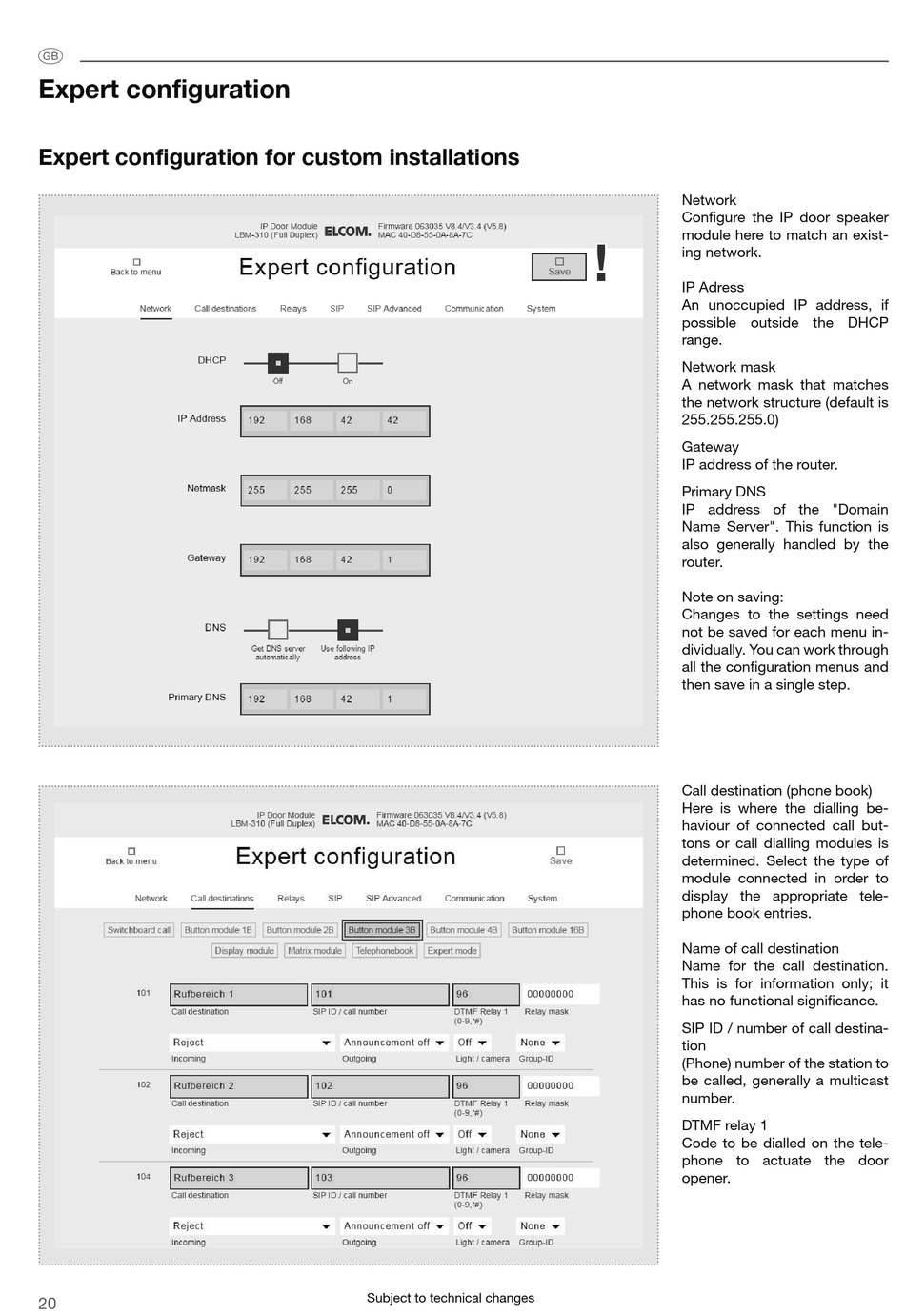

Expert configuration
Expert configuration for custom installations
20
Subject to technical changes
Network
Configure the IP door speaker
module here to match an exist-
!
ing network.
IP Adress
An unoccupied IP address, if
possible outside the DHCP
range.
Network mask
A network mask that matches
the network structure (default is
255.255.255.0)
Gateway
IP address of the router.
Primary DNS
IP address of the "Domain
Name Server". This function is
also generally handled by the
router.
Note on saving:
Changes to the settings need
not be saved for each menu in-
dividually. You can work through
all the configuration menus and
then save in a single step.
Call destination (phone book)
Here is where the dialling be-
haviour of connected call but-
tons or call dialling modules is
determined. Select the type of
module connected in order to
display the appropriate tele-
phone book entries.
Name of call destination
Name for the call destination.
This is for information only; it
has no functional significance.
SIP ID / number of call destina-
tion
(Phone) number of the station to
be called, generally a multicast
number.
DTMF relay 1
Code to be dialled on the tele-
phone to actuate the door
opener.
