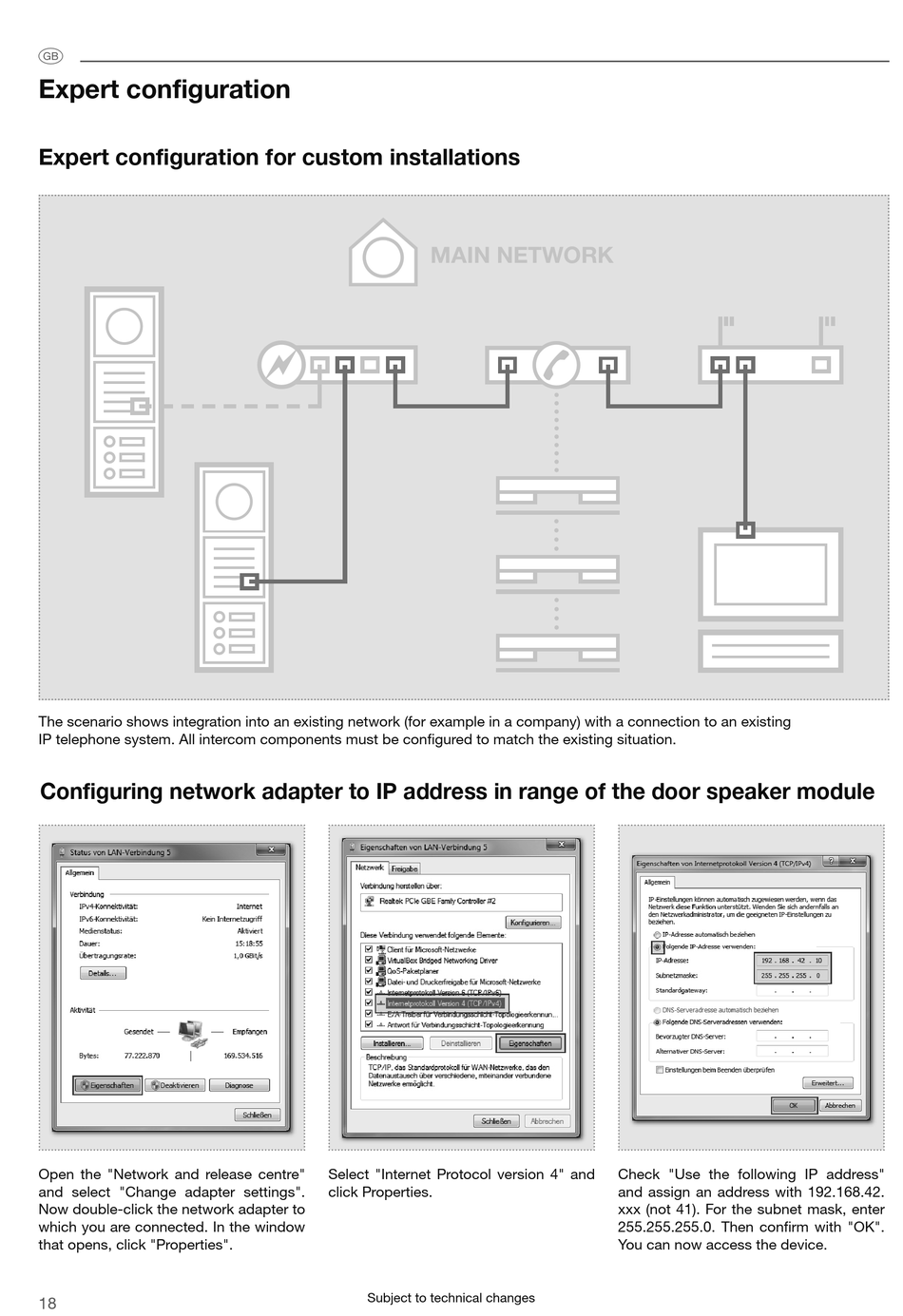

Expert configuration
Expert configuration for custom installations
The scenario shows integration into an existing network (for example in a company) with a connection to an existing
IP telephone system. All intercom components must be configured to match the existing situation.

Configuring network adapter to IP address in range of the door speaker module

Open the "Network and release centre"
and select "Change adapter settings".
Now double-click the network adapter to
which you are connected. In the window
that opens, click "Properties".
18
MAIN NETWORK

Select "Internet Protocol version 4" and
click Properties.
Subject to technical changes
Check "Use the following IP address"
and assign an address with 192.168.42.
xxx (not 41). For the subnet mask, enter
255.255.255.0. Then confirm with "OK".
You can now access the device.
