SPL Track One Mk3 Bedienungsanleitung Seite 9

Serial #
For unbalanced
operation use
Mono Jack (TS)
Niederkrüchten
Germany
Bal. TRS
OUTPUT
Output

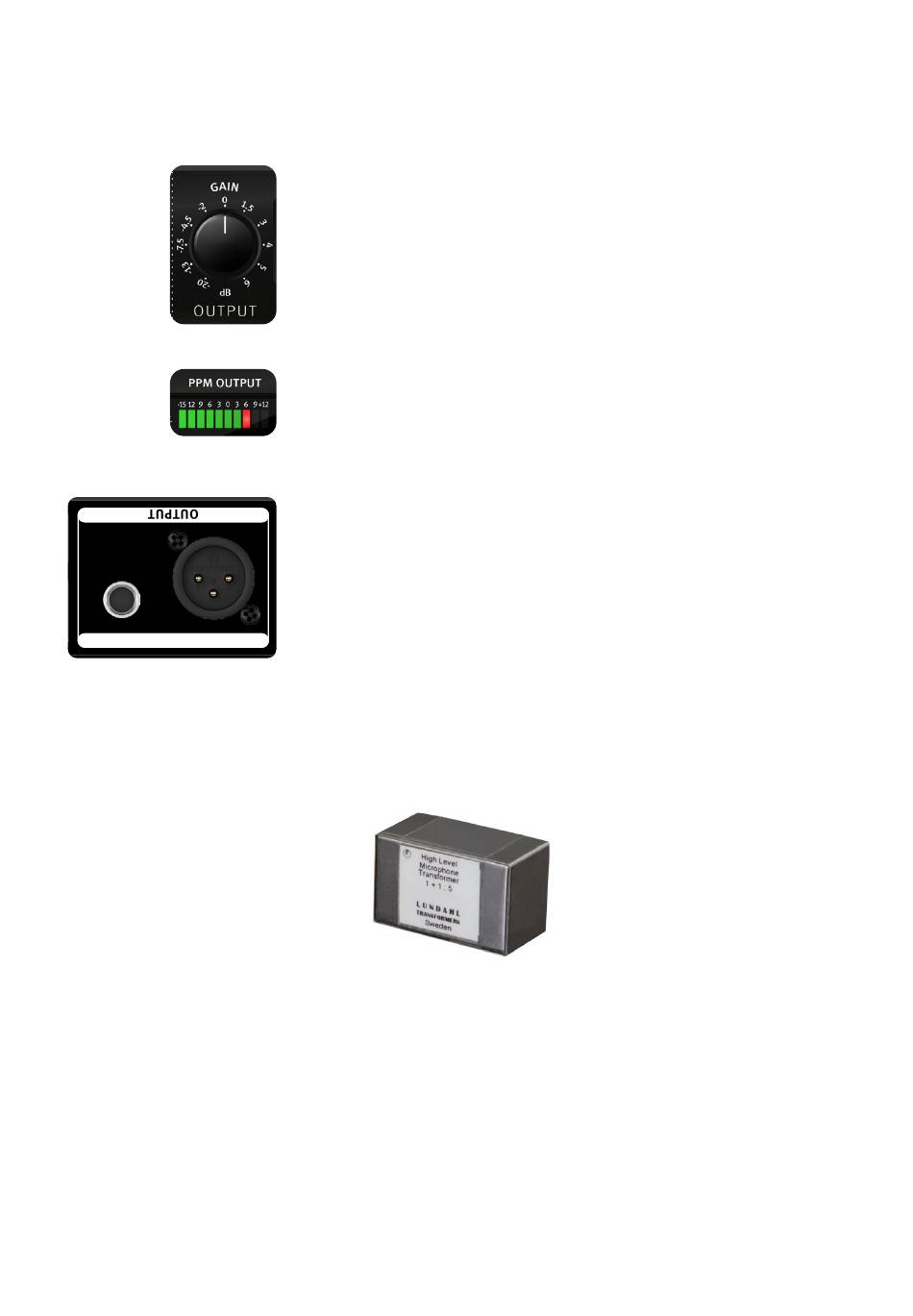

The outgoing signal can either be dampened to -20 dB
or further amplified by +6 dB with the Output control to
provide optimal drive to the subsequent units or the optional
AD converter. The selected output level is shown on the
PPM OUTPUT display in the display field.
The PPM OUTPUT display shows the peak reading of the
output level. This display also serves to level the preamplifier.
The balanced XLR and TRS output jacks provide the output
signal. Track One Mk3 offers two outputs connected in parallel.
Instrument
Line
Bal.
The Track One Mk3 can be ordered with an optional input
transformer for the microphone input. The product with
input transformer is called:
Track One Mk3 – Premium
Instr/
Line
TS Mic
INPUT
Track One Mk3 – Manual
9
