Track One Mk3 – Manual
6

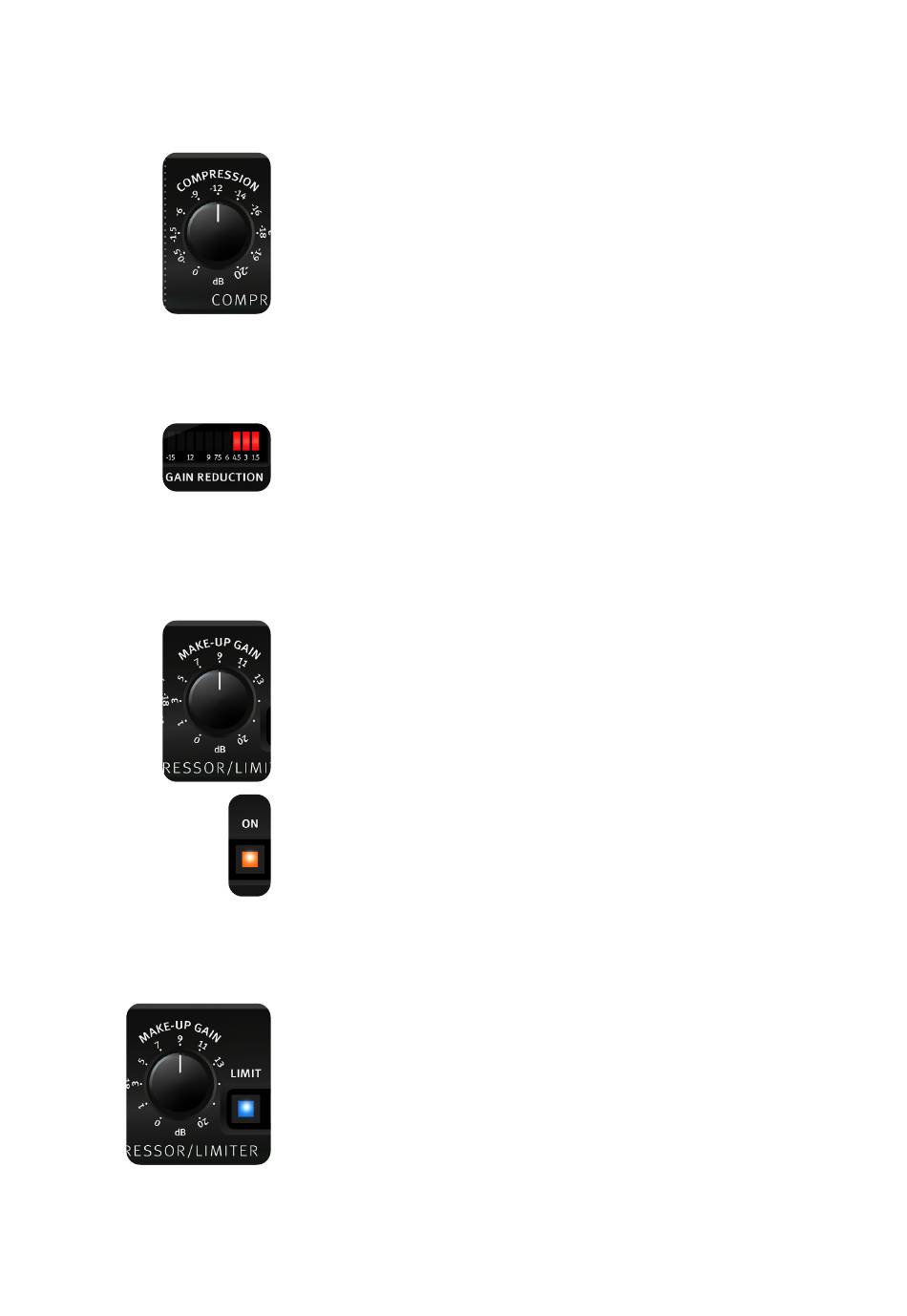

Compression
The Compression control can be used to set a threshold
between 0 dB and -20 dB. The lower the threshold, the more
the compressor works.
Gain Reduction
The Gain Reduction display indicates the processing that is
being performed with the compressor. The level reductions
due to compression are displayed in 1.5 dB steps.
Make-Up GAIN
The Make-Up Gain control can be used to make up for the
overall level reduction caused by compression. A value
between 0 dB and 20 dB can be set by which the level is
increased again after compression.
The On switch activates the compressor section, consisting of
the compression control and the Make-Up Gain.
Limiter
The Limiter switch puts the compressor into limiter mode. The
threshold is still set by the compression knob.
The limiter is designed as an unobtrusive working soft limiter.
