EN OPENAIR

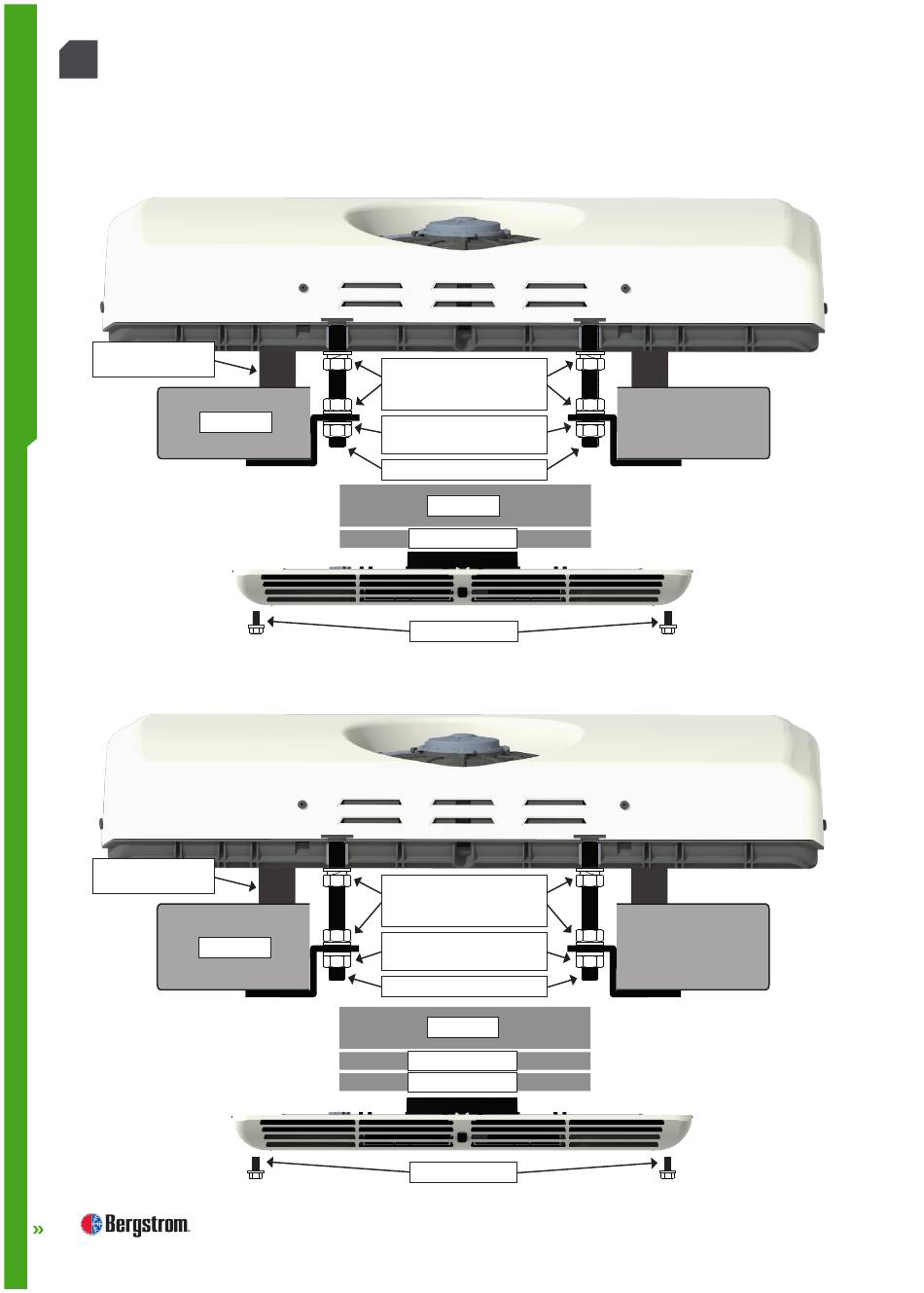

ASSEMBLY DRAWINGS
50 mm thick
35 mm EPDM seal,
compressed 29-32 mm
Roof 50 mm
60 mm thick
35 mm EPDM seal,
compressed 29-32 mm
Roof 60 mm
30
TU ESPACIO DE VIDA CONFORTABLE
(8) Wide-rimmed flat washer Ø8
(4) Grower washer Ø8
(8) M/125 nut
(4) Wide-rimmed flat washer Ø8
(4) Self-locking M8/125 nut
(4) 95 mm studs
Duct system
Supplementary seal
(4) M5x10 screw
(8) Wide-rimmed flat washer Ø8
(4) Grower washer Ø8
(8) M/125 nut
(4) Wide-rimmed flat washer Ø8
(4) Self-locking M8/125 nut
(4) 110 mm studs
Duct system
Supplementary seal
Supplementary seal
(4) M5x10 screw
