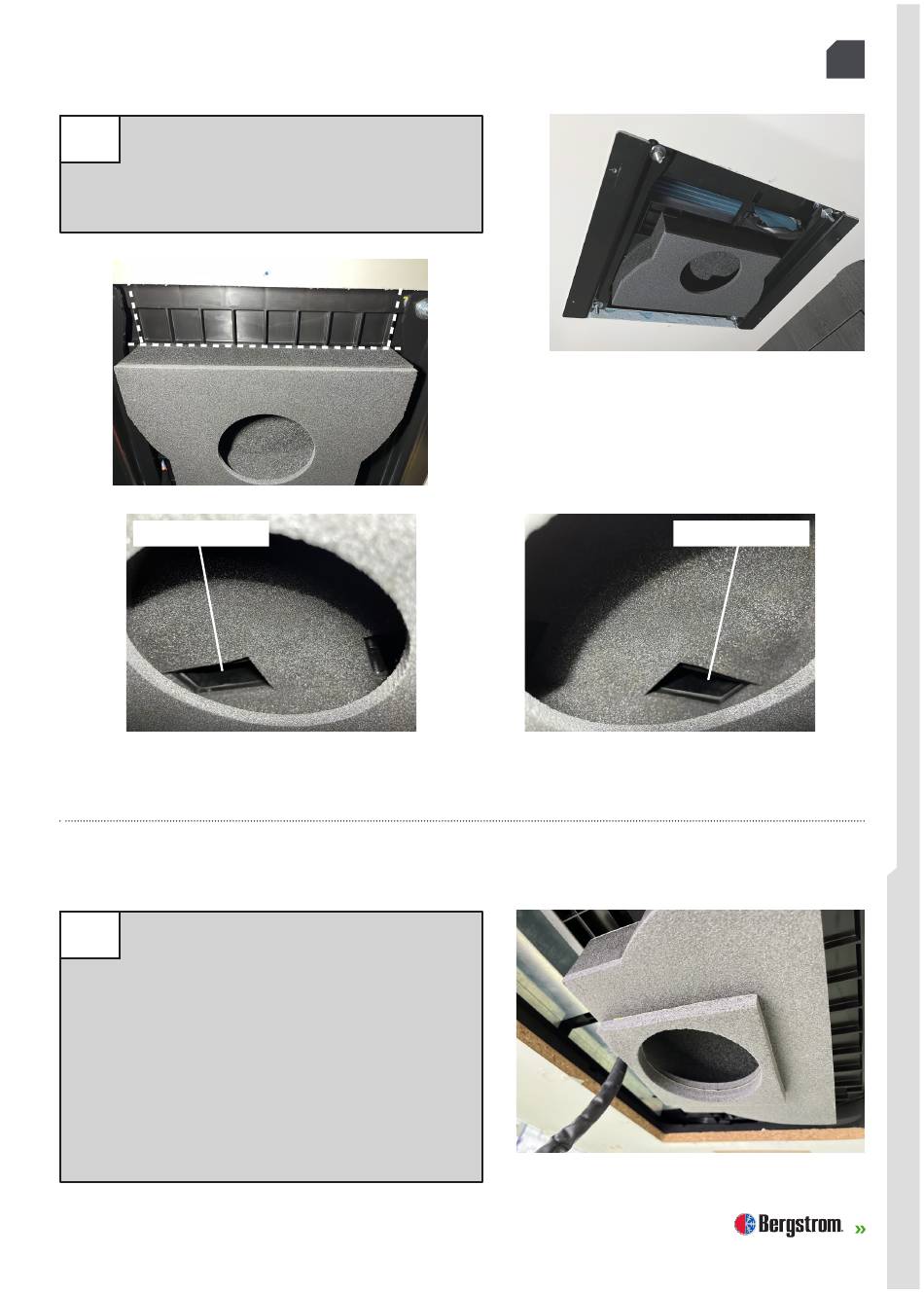

Attach the duct system to the base of the unit,
14
taking the marks on the base as a reference.
Important: Make sure the blower's air outlets
face the duct system's inlets.
Air outlet
Depending on the thickness of the vehicle's
15
roof, add a supplementary seal by attaching it
aligned on the duct system:
Thickness:
30 mm: Duct system only.
40 mm: Duct system + (1) supplementary
seal.
50 mm: Duct system + (1) supplementary
seal.
60 mm: Duct system + (2) supplementary
seal.
