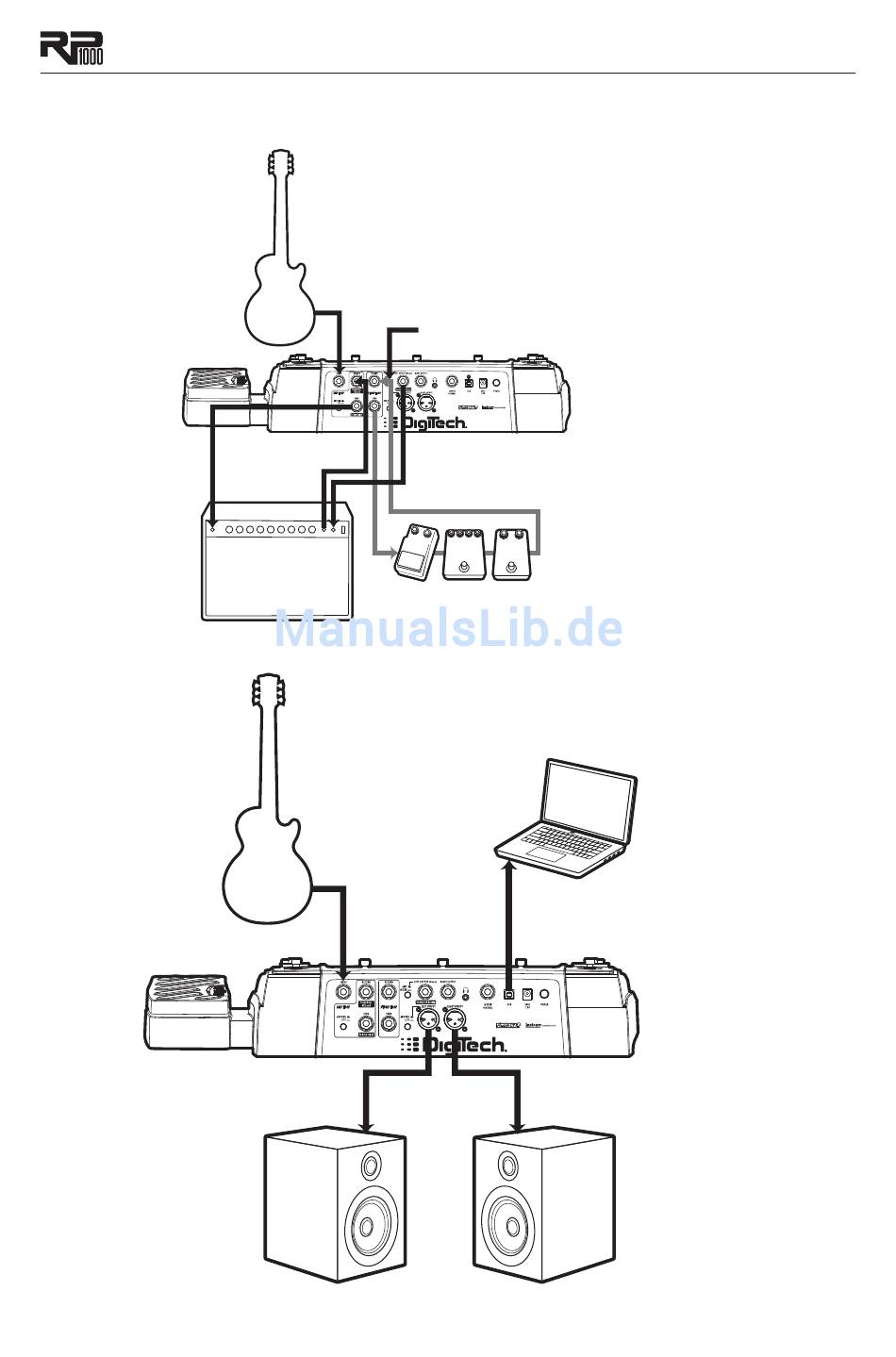

Amp Loop and Somp Loop
Connect
the RP1000
Amp Loop
Send to the
amp's Input.
Studio Setup (Computer and Personal Monitors)
16
Connect your guitar
to the RP1000's Input.
Connect the amp's Loop
Send to the RP1000 Amp
Loop Return.
Connect the
RP1000 Stomp Loop
Send to the stompbox Input.
Connect your
guitar to the
RP1000's Input.
XLR Left Out
STUDIO REFERENCE MONITORS
Amp/Mixer switch on 1/4"
outputs is set to AMP.
Connect the RP1000
Line Out to the amp's
Loop Return.
Connect the
stompbox Output
to the RP1000
Stomp Loop
Return.
Connect the RP1000's
USB port to an available
USB port on your comput
XLR Right Out
