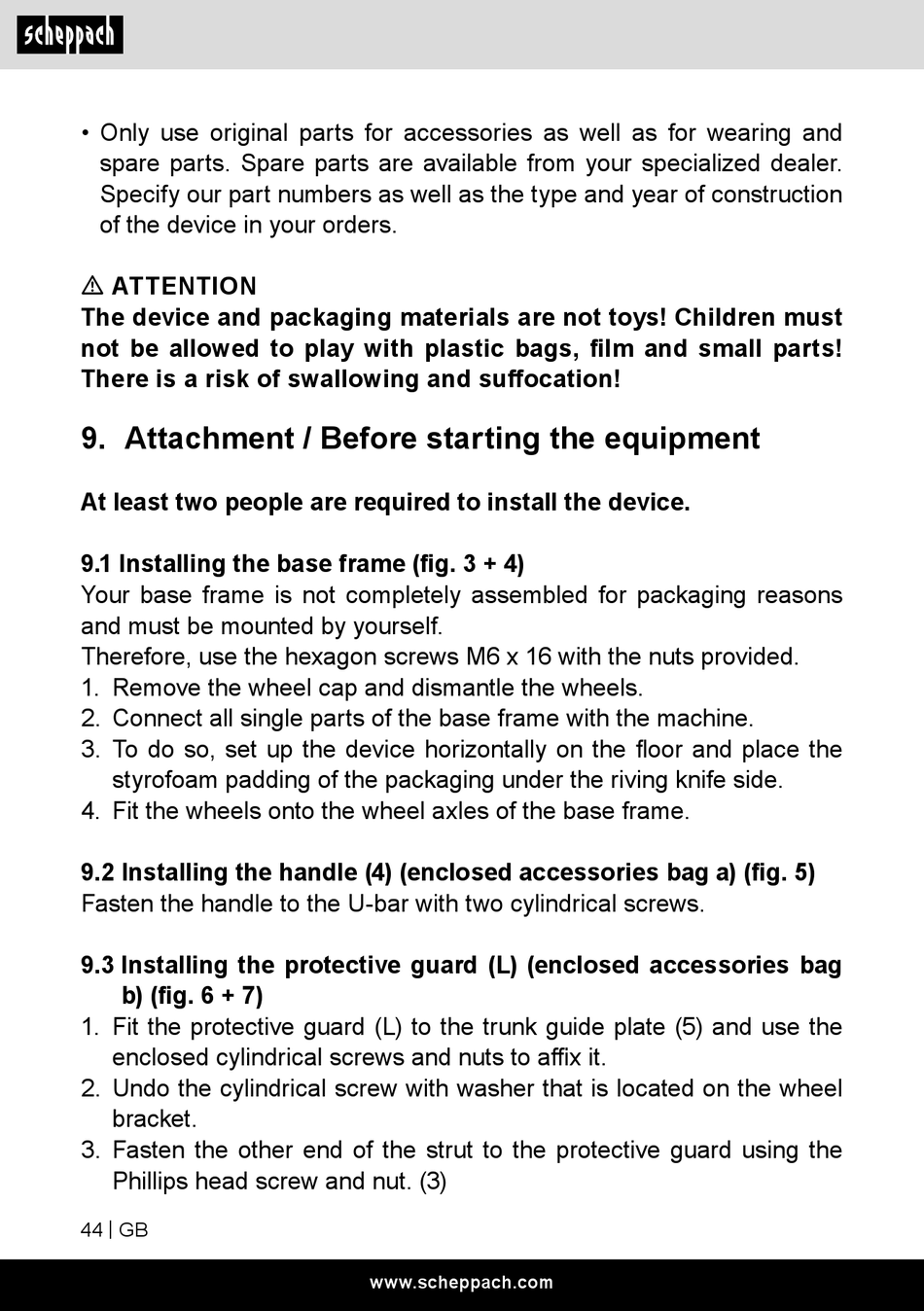

Attachment / Before Starting The Equipment - Scheppach HL760LS Originalbetriebsanleitung

• Only use original parts for accessories as well as for wearing and
spare parts. Spare parts are available from your specialized dealer.
Specify our part numbers as well as the type and year of construction
of the device in your orders.
m ATTENTION
The device and packaging materials are not toys! Children must
not be allowed to play with plastic bags, film and small parts!
There is a risk of swallowing and suffocation!

9. Attachment / Before starting the equipment

At least two people are required to install the device.
9.1 Installing the base frame (fig. 3 + 4)
Your base frame is not completely assembled for packaging reasons
and must be mounted by yourself.
Therefore, use the hexagon screws M6 x 16 with the nuts provided.
1. Remove the wheel cap and dismantle the wheels.
2. Connect all single parts of the base frame with the machine.
3. To do so, set up the device horizontally on the floor and place the
styrofoam padding of the packaging under the riving knife side.
4. Fit the wheels onto the wheel axles of the base frame.
9.2 Installing the handle (4) (enclosed accessories bag a) (fig. 5)
Fasten the handle to the U-bar with two cylindrical screws.
9.3 Installing the protective guard (L) (enclosed accessories bag
b) (fig. 6 + 7)
1. Fit the protective guard (L) to the trunk guide plate (5) and use the
enclosed cylindrical screws and nuts to affix it.
2. Undo the cylindrical screw with washer that is located on the wheel
bracket.
3. Fasten the other end of the strut to the protective guard using the
Phillips head screw and nut. (3)
