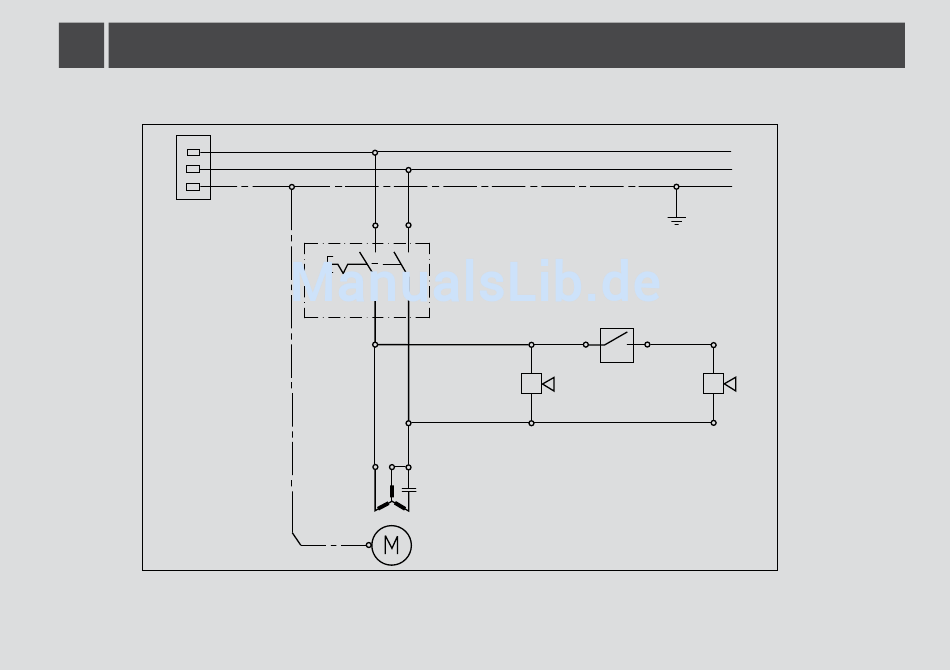

9. Circuit diagram

L1
N
PE
M = 1PH Motor
C1 = condensator
S1 = ON / OFF-Switch
1 2
S1
3 4
C1
P1 = pressure sensor
B1 = hours counter (AC)
H1 = buzzer (AC)
Gehäuse/housing/boitier
Carcasa/Obudowa
5 7 8
P1
B1
6 10
9
H1
