krick WSP 47 Baubeschreibung Seite 39

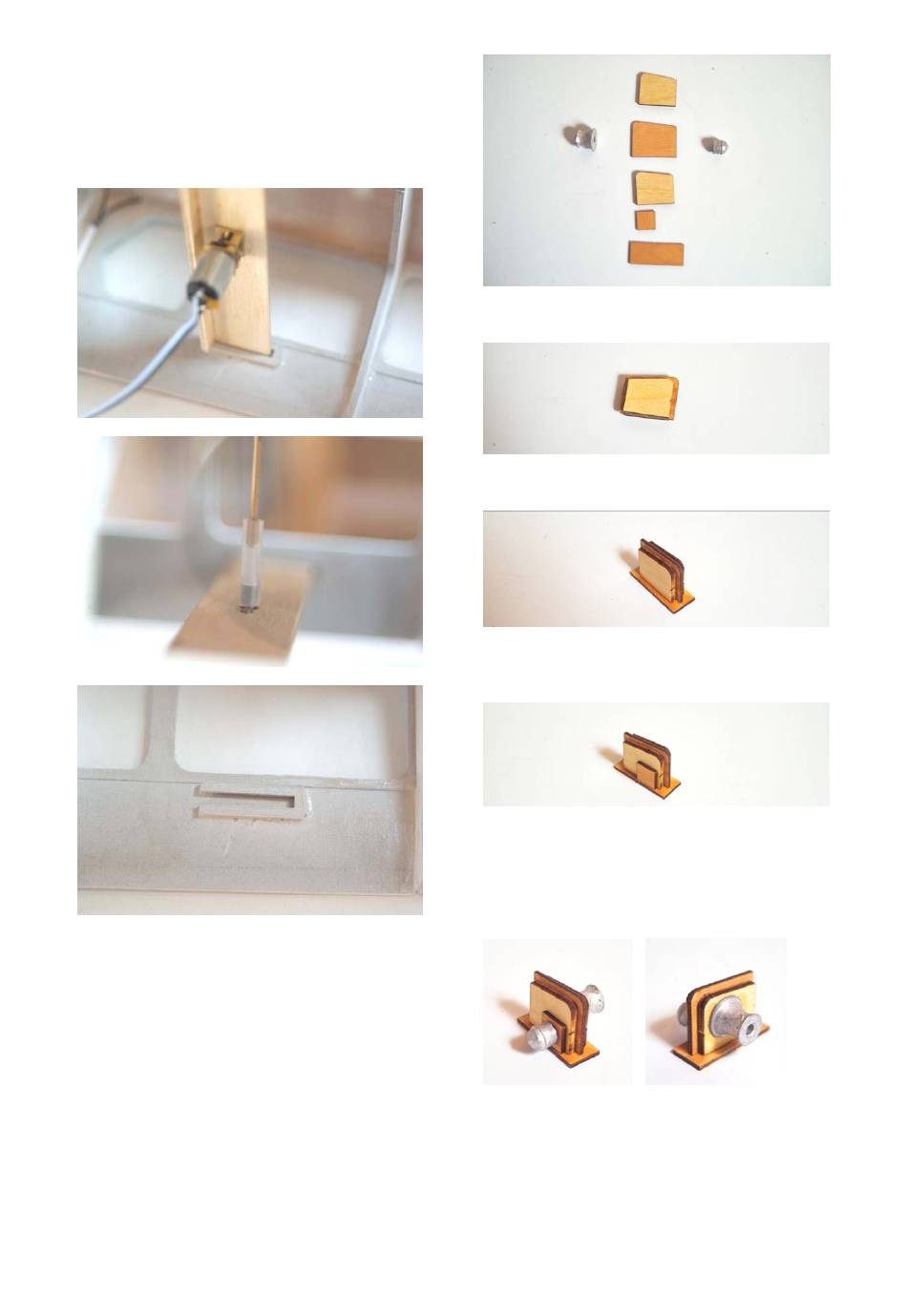

For fixation of the slotted supports to the sides
of the cabin place slide the radar shaft (70) into
the coupling tube (71) and align the motor
mount inside the cabin. Then fix the supports
(74) at the side walls of the cabin with super-
glue.
75
74
Take out the motor mount and finally glue the
supports (74).
4. Anchor Winch
Build up the anchor winch from parts 76, 77,
78, 79, 80 and 81.
Stand Juli 2014
74
Seite 13
77
76
81
77
79
78
Glue the main part (76) to the sides (77).
Then place and glue the base (78).
Glue the motor plate (79) to the right side as
shown.
Now the wooden parts should be filled sanded
and painted white or grey.
Now the wooden parts should be painted with
sanding sealer and sanded. Afterwards place the
motor (80) and capstan (81) with super glue.
©
Krick Modelltechnik Knittlingen
80
