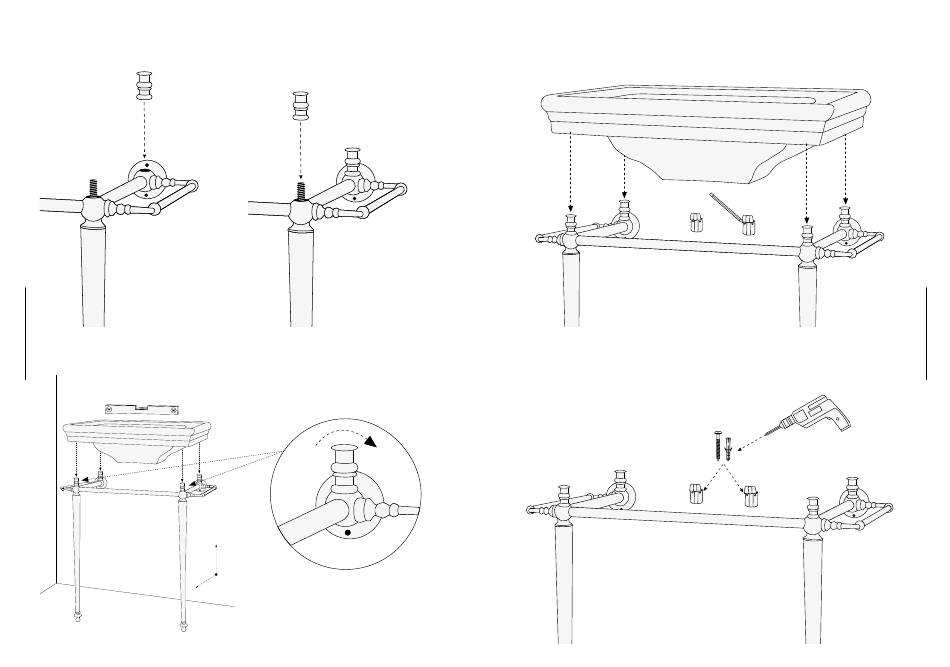

10) Assemble the fixed supports for the
basin (H) closest to the wall on to the
structure.
E
N
G
12) Place the Etoile basin (K) on to the structure, trying to find a good compromise
between having it lean on to the structure and on to the wall.
K
11) Assemble the adjustable supports (G)
furthest from the wall on to the structure.
G
If necessary, regulate the adjustable
supports to obtain a better result.
24
13) Once you have obtained the best possible compromise, position the "S"-shaped
brackets (L) under the basin, and mark the position of the holes (2 for each bracket) to
fasten them.
14) At this point, it is possible to remove the basin and make the holes in the wall
following the markings. Assemble the brackets that support the basin, fastening them
with rawlplugs and screws (not included in the packaging).
L
25
E
N
G
