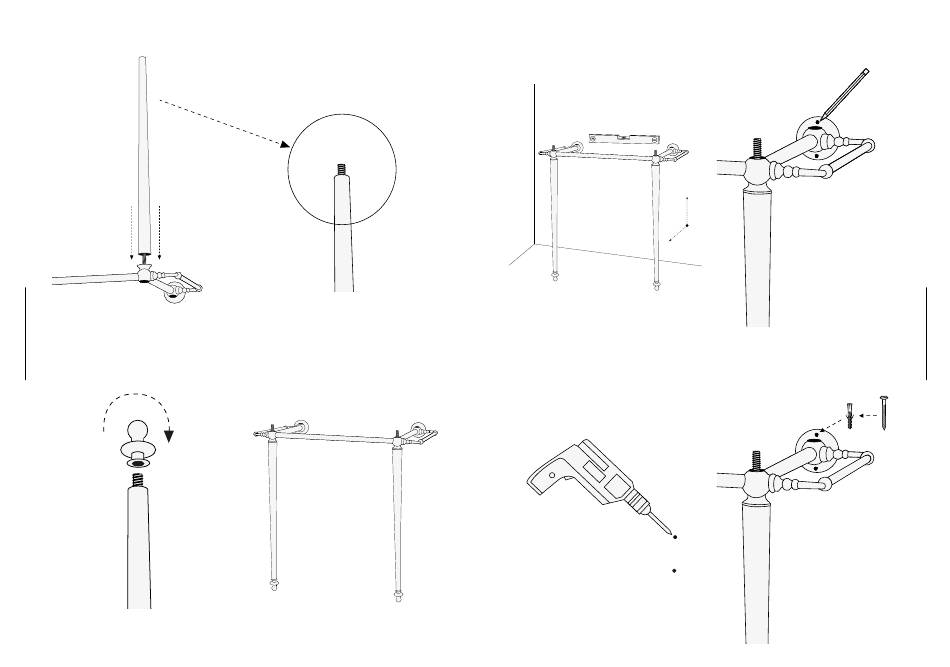

3) Insert the legs (D) of the structure into the threaded rods (E).
D
E
E
N
G 4) Fasten the feet (F), screwing them on
to the part of the threaded rods (E) that
protrudes from the legs.
F
E
Repeat the operations described above
for both legs.
E
D
The threaded rod should protrude slightly
compared to the leg.
5) Put the structure as assembled up
against the wall.
22
6) Using a level, make sure that the
structure is positioned correctly, both
parallel and perpendicular to the wall.
8) Remove the structure and make the 4
holes according to your markings.
7) Mark the position of the holes to fasten
the faceplates to the wall.
9) Insert the rawlplugs provided (C) into
the holes, position the structure again,
and fasten it with the screws provided.
C
23
E
N
G
