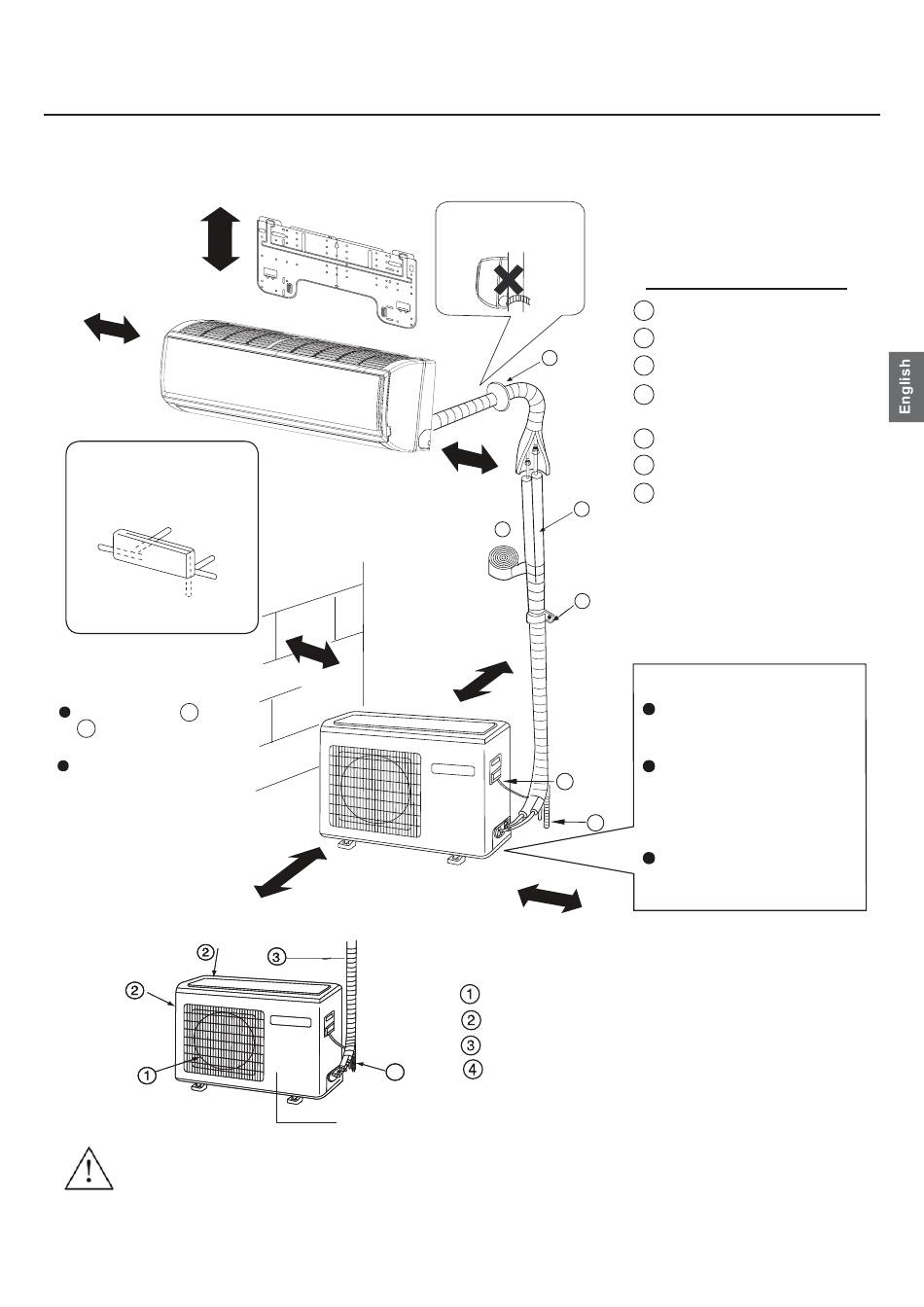

Indoor/Outdoor Unit Installation Drawings

The models adopt HFC refrigerant R32.
For installation of the indoor units,refer to the installation manual which was provided with the units.(The
diagram shows a wall-mounted indoor unit.)
more than 15cm
more than 10cm
Arrangement of piping
directions
Rear left
Rear
Left
right
Below
The marks from A to
G in the figure are the
parts numbers.
Thedistancebetween
the indoor unit and the
floor should be more
than 2m.
more than 60cm
If using the left side drain pipe, make sure the hole is got through.
The above indoor and outdoor units' picture is just for your reference. Please be subject to the actual product
purchased.
Right
more than 20cm
4
Compressor(Inside of Unit)
Attention must be paid to
the rising up of drain hose
G
more than 10cm
F
A
C
more than 20cm
D
more than 25cm
AIR OUTLET
AIR INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
Optional parts for piping
Non-adhesive tape
A
Adhesive tape
B
Saddle (L.S) with screws
C
Connecting electric cable
D
for indoor and outdoor
Drain hose
E
Heating insulating material
F
Piping hole cover
G
Fixing of outdoor unit
Fix the unit to concrete or block
with bolts (10mm) and nuts
firmly and horizontally.
When fitting the unit to walll
surface, roof or rooftop, fix
a supporter surely with nails
or wires in consideration of
E
earthquake and strong wind.
If vibration may affect the
ouse, fix the unit by attaching a
vibration-proof mat.
