Installation Procedure

1. Accessories
"Edging" for protection of electrical wires from an opening edge.
2. Selection of the place of installation
Select the place of installation satisfying the following conditions and, at the same time, obtain a consent
from the client or user.
●Place where air circulates.
●Place free from heat radiation from other heat sources.
●Place where drain water may be discharged.
●Place where noise and hot air may not disturb the neighborhood.
●Place where there is not heavy snowfall in the winter time.
●Place where obstacles do not exist near the air inlet and air outlet.
●Place where the air outlet may not be exposed to a strong wind.
●Place surrounded at four sides are not suitable for installation. A 1m or more of overhead space is needed for the unit.
●Avoid mounting guide-louvers to the place where short-circuit is a possibility.
●When installing several units, secure sufficient suction space to avoid short circuiting.

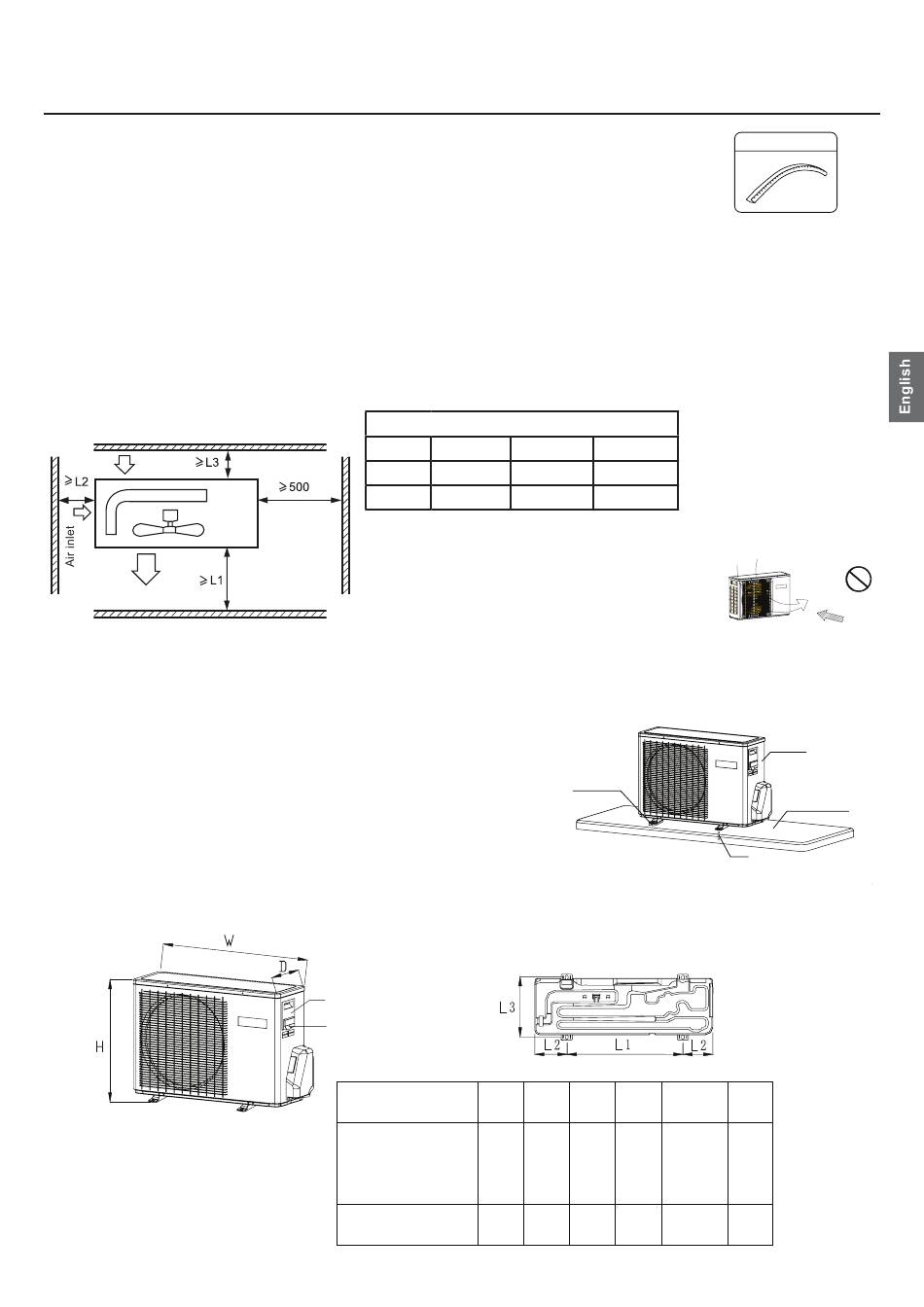

Open space requirement around the unit
Air inlet
Air inlet
3. Installation of outdoor unit
Fix the unit on the foundation in a proper way according to the condition of
the installation place, referring to the following information.
●Give enough room for the concrete foundation to fix by anchor bolts.
●Place the concrete foundation deep enough.
●Install the unit so that the angle of inclination must be less than 3 degrees.
●Forbidden to place the unit on the ground directly.Please confirm there is
enough room near the drainage hole on bottom plate, which will ensure the
water be drained smoothly.
4.Installation dimension(Unit:mm)
lation dimension(Unit:mm)
L1
L2
L3
(Servicing Note:
space)
(1) Fix the parts with screws.
(2) Don't intake the strong wind directly to the outlet air-
flow hole.
(3) A one meter distance should be kept from the unit top.
(4) Don't block the surroundings of the unit with sundries.
(5) If the outdoor unit is installed in a place that is exposed to the wind, install the
unit so that the outlet grid is NOT pointing in the direction of the wind.
Cushion rubber
Power Wiring Terminal
Power Wiring Distribution
Hole
Model
DR2VO32-09
DR2VO32-12
DR2VO32-18
DR2VO32-24
Distance
open open 500 mm
300 mm 300 mm open
150 mm 300 mm 150 mm
Cushion rubber
W D H
800 280 550
890 353 697
Installation of Outdoor Unit
Edging
Air outlet
Wind direction
NO
Unit
Air outlet
Wind direction
Concrete
foundation
Anchor bolt
L1 L2 L3
510 130/160 313
628 130 355,5
NO
