2.1 GENERAL RECOMMENDATIONS

Please take into account the installation specifications described within
the instruction manual of the fitting.

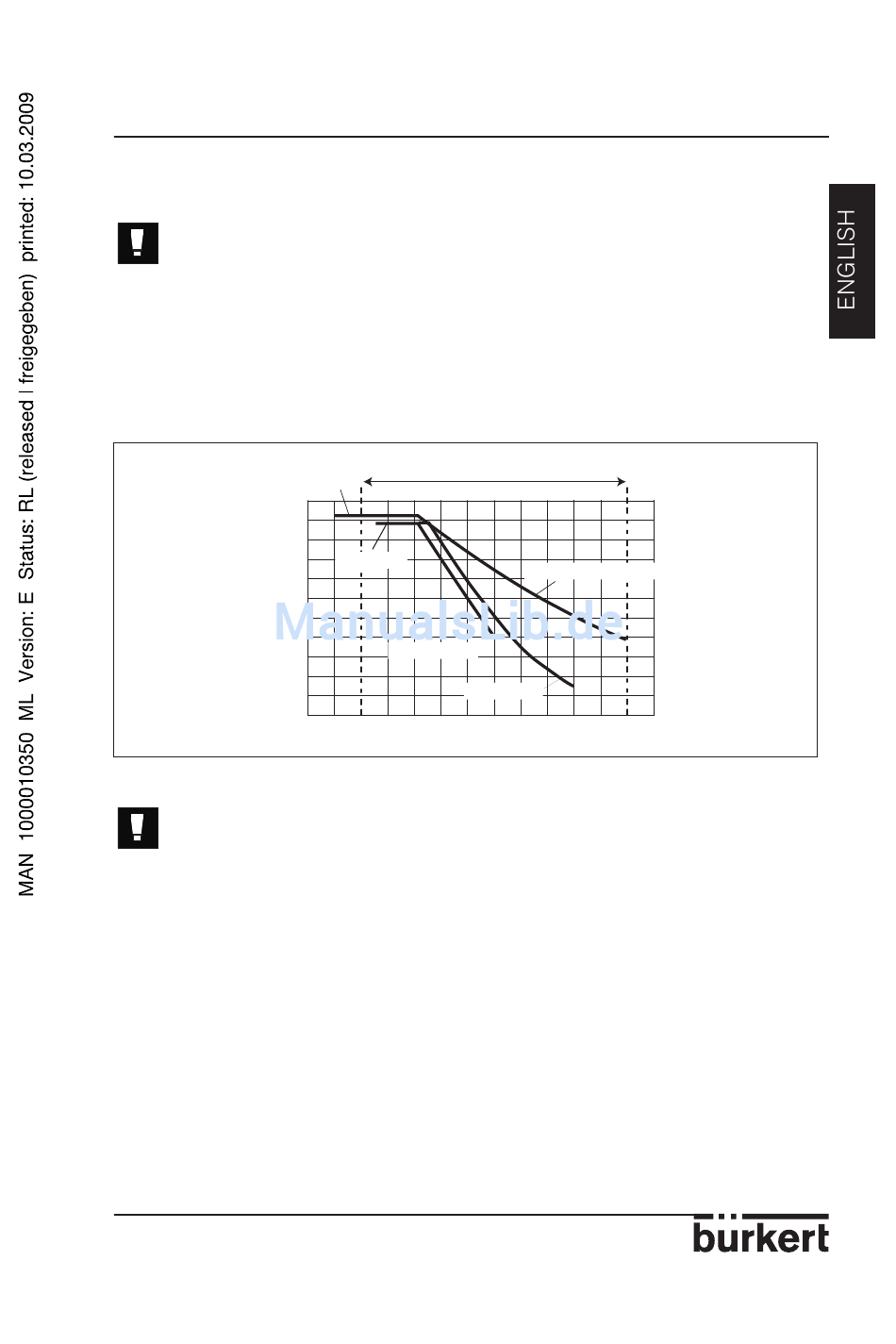

Temperature-pressure diagram
The sensor and the fitting it is inserted into have limited operating temperature and pres-
sure values. The following diagram gives the operating ranges for the sensor+fitting as-
sembly, for each fitting material:
PVDF / Metal
P [bar]
Dismounting precaution:
When dismounting the sensor from the pipe, take all the necessary pre-
cautions linked to the process (aggressive fluids, high fluid pressure or
temperature,...).
8020

INSTALLATION

Application range
10
9
PVC + PP
8
7
6
5
4
PVC (PN 10)
3
2
1
0
-10 +10 +30
PVDF / Metal (PN 10)
PP (PN 10)
+90
+50 +70
5
T˚ [˚C]
+110
