TEX 09PS, 10PS, 12PS

Maintenance

Regular maintenance is a basic requirement for the
continued safe and efficient use of the machine.
Follow the maintenance instructions carefully.
♦ Before starting maintenance on the machine, clean
it in order to avoid exposure to hazardous
substances. See "Dust and fume hazard".
♦ Use only authorised parts. Any damage or
malfunction caused by the use of unauthorised
parts is not covered by warranty or product liability.
♦ When cleaning mechanical parts with solvent,
comply with appropriate health and safety
regulations and ensure there is satisfactory
ventilation.
♦ For major service of the machine, contact the
nearest authorised workshop.
♦ After each service, check that the machine's
vibration level is normal. If not, contact the nearest
authorised workshop.

Every day

Before undertaking any maintenance or changing
the insertion tool on pneumatic machines, always
switch off the air supply and bleed the machine by
depressing the start and stop device. Then
disconnect the air hose from the machine.
♦ Clean and inspect the machine and its functions
each day before the work commences.
♦ Check the tool retainer for wear and function.
♦ Conduct a general inspection for leaks and
damage.
♦ Check that the air inlet nipple is tightened and that
the claw coupling is free from damage.
♦ For the machine to maintain the specified vibration
values, always check the following:
Too large a clearance between the insertion tool's
shank and the chisel bushing will generate
increased vibrations. To avoid being exposed to
excessive vibrations, check the chisel bushing for
wear every day.
♦ If the machine has a vibration-absorbing
handle/handles, check that it moves freely (up and
down) and does not jam.
♦ Change damaged parts immediately.
♦ Replace worn components in good time.
© 2013 Atlas Copco Construction Tools AB | No. 9800 1386 90 | 2013-04-15
Original instructions
Safety and operating instructions
Make sure that all the attached and related
♦
equipment, such as hoses, water separators and
lubricators are properly maintained.

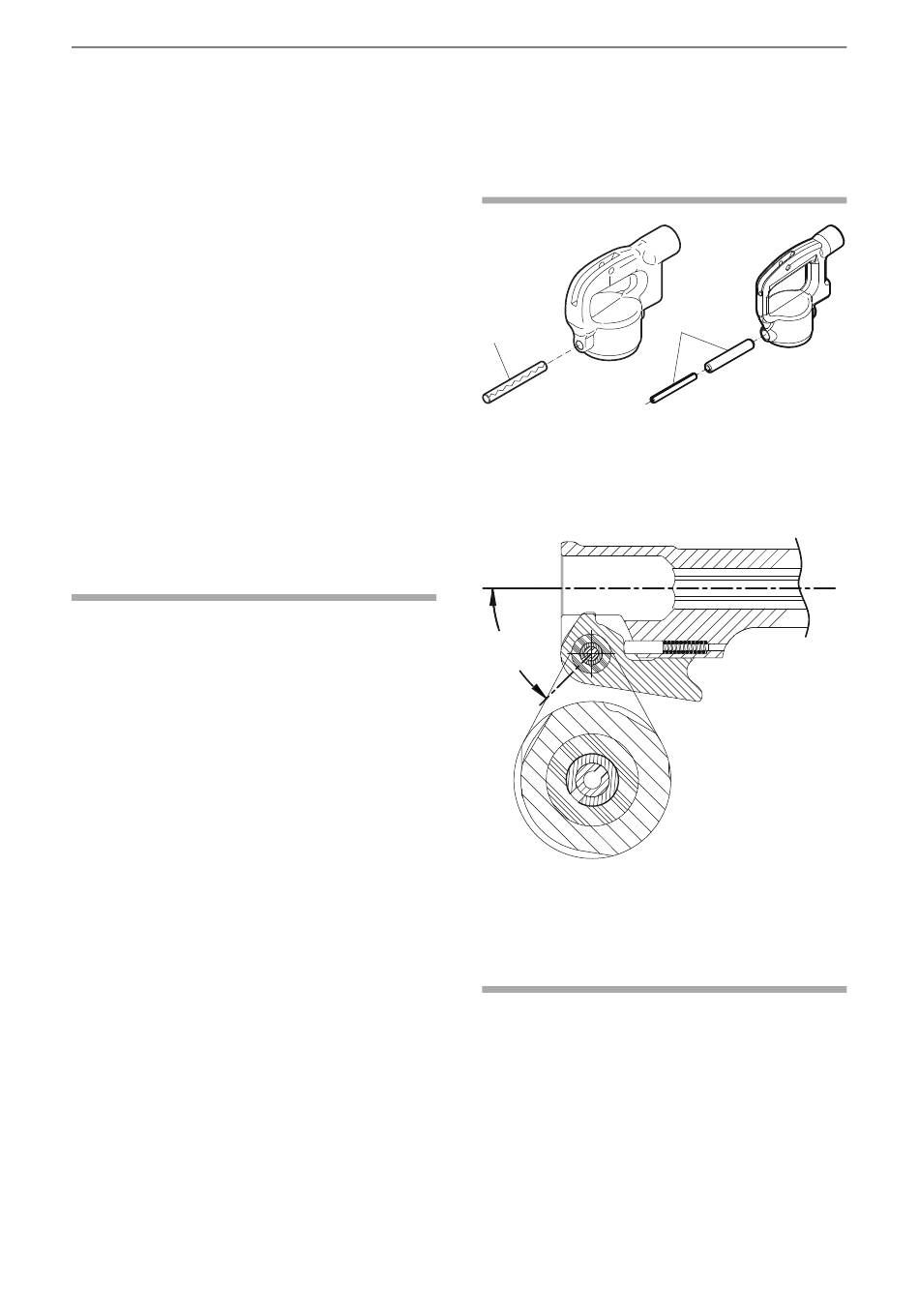

Changing the spring pin

A
TEX 09PS
After each operating period of approximately 75
●
impact hours or four times a year the spring pins
(A) should be changed.
45°
Install the spring pins with the slots in opposite
●
directions and at a 45 degree angle.

Periodic maintenance

After each operating period of approximately 150
impact hours or twice a year the machine must be
dismantled and all parts be cleaned and checked.
This work must be performed by authorised staff who
are trained for this task.
A
TEX 12PS
