9. ASSEMBLY
Highlander feet are pre-assembled and consist of a foot module, a Spectra sock, and a foot shell. After dynamic alignment, tighten
the pyramid adjustment screws according to the specifications of the connector manufacturer. Secure pyramid adjustment screws
with a thread locking adhesive (i.e., Loctite 242).
Spectra sock
A Spectra sock is included to protect the foot shell and minimize noise. It must be placed on the foot module before mounting the
foot shell.
Foot shell
To install and remove the foot shell, use the foot shell removal tool to prevent damage of the foot module.
Never remove the foot from the foot shell by pulling manually. This could damage the foot.
10. ADJUSTMENTS

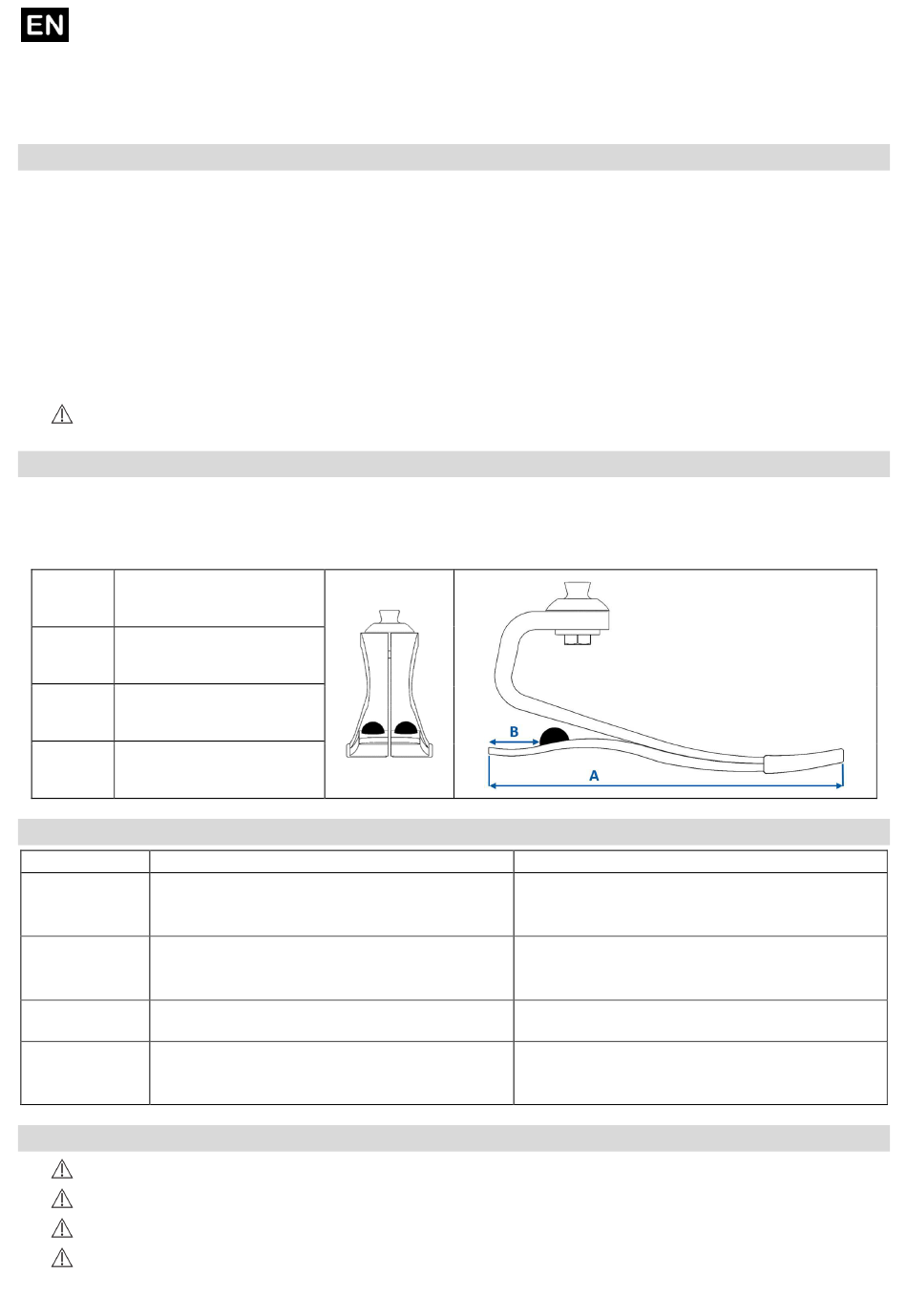

The heel stiffness at foot loading can be adjusted using the stiffening bumpers. The bumpers may be temporarily attached using
the pre-applied adhesive in the location indicated in the table below. The recommended location will stiffen the heel of about 1
category. If necessary, move the bumpers anteriorly (stiffer) or posteriorly (softer) to get the desired stiffness. For permanent
placement, clean off the pre-applied adhesive with acetone and adhere bumpers using cyanoacrylate glue.
Foot size Distance from the rear end
(A) of the sole (B)
22-25 cm 32 mm / 1,25''
26-28 cm 38 mm / 1,5''
29-31 cm 48 mm / 1,9''
11. TROUBLESHOOTING
CONCERN
• Foot flat occurs too fast
• Toe feels excessively stiff
Heel too soft
• Knee hyperextension
• Rapid knee flexion, instability
• Heel to toe progression too fast
Heel too hard
• Lack of energy return sensation
Foot module
• Flat spot in rollover motion at slow cadences
too stiff
• Clicking noise at initial contact
Foot module
• Excessive toe deflection during high impact
too soft
activity
12. WARNINGS
In case of damaged packaging, check the integrity of the device.
Never use the foot without a foot shell.
Never loosen the pyramid fastening screws.
The patient must inform their prosthetist if they gain or lose significant weight.
INSTRUCTIONS FOR USE
SYMPTOM SOLUTION
• Shift socket anteriorly in relation to the foot
• Attach stiffening bumpers. See section 10 above
for installation details
• Shift socket posteriorly in relation to the foot
• Verify appropriate foot module category
• Consider a lower category foot module
• Consider a higher category foot module
