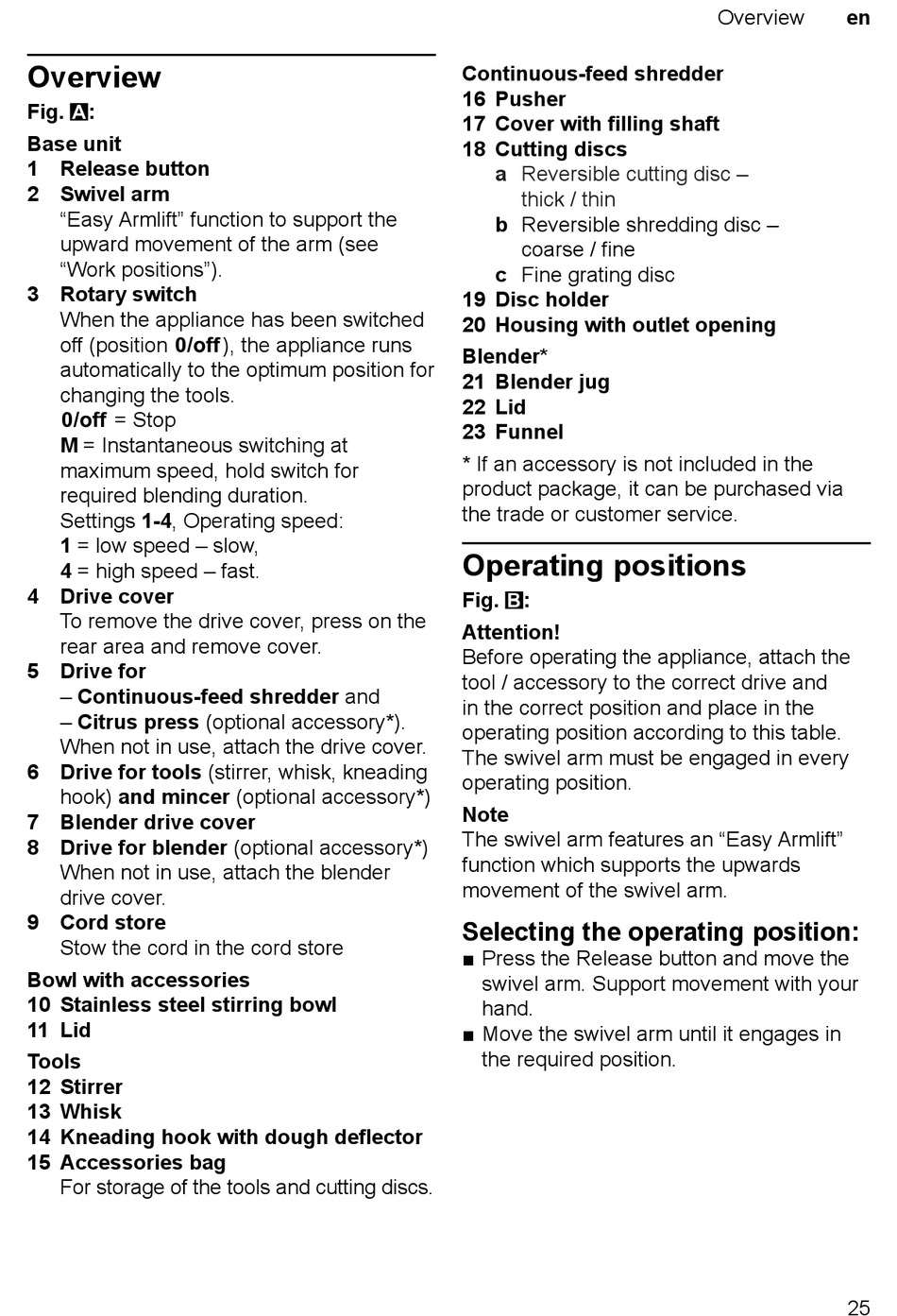

Overview

Fig. A:
Base unit
1 Release button
2 Swivel arm
"Easy Armlift" function to support the
upward movement of the arm (see
"Work positions").
3 Rotary switch
When the appliance has been switched
off (position P), the appliance runs
automatically to the optimum position for
changing the tools.
P = Stop
M = Instantaneous switching at
maximum speed, hold switch for
required blending duration.
Settings 1-4, Operating speed:
1 = low speed – slow,
4 = high speed – fast.
4 Drive cover
To remove the drive cover, press on the
rear area and remove cover.
5 Drive for
– Continuous-feed shredder and
– Citrus press (optional accessory*).
When not in use, attach the drive cover.
6 Drive for tools (stirrer, whisk, kneading
hook) and mincer (optional accessory*)
7 Blender drive cover
8 Drive for blender (optional accessory*)
When not in use, attach the blender
drive cover.
9 Cord store
Stow the cord in the cord store
Bowl with accessories
10 Stainless steel stirring bowl
11 Lid
Tools
12 Stirrer
13 Whisk
14 Kneading hook with dough deflector
15 Accessories bag
For storage of the tools and cutting discs.
Continuous-feed shredder
16 Pusher
17 Cover with filling shaft
18 Cutting discs
a Reversible cutting disc –
thick / thin
b Reversible shredding disc –
coarse / fine
c Fine grating disc
19 Disc holder
20 Housing with outlet opening
Blender*
21 Blender jug
22 Lid
23 Funnel
* If an accessory is not included in the
product package, it can be purchased via
the trade or customer service.

Operating positions

Fig. B:
Attention!
Before operating the appliance, attach the
tool / accessory to the correct drive and
in the correct position and place in the
operating position according to this table.
The swivel arm must be engaged in every
operating position.
Note
The swivel arm features an "Easy Armlift"
function which supports the upwards
movement of the swivel arm.
Selecting the operating position:
■ Press the Release button and move the
swivel arm. Support movement with your
hand.
■ Move the swivel arm until it engages in
the required position.
