UK | 7 Radio-controlled operation (EnOcean)

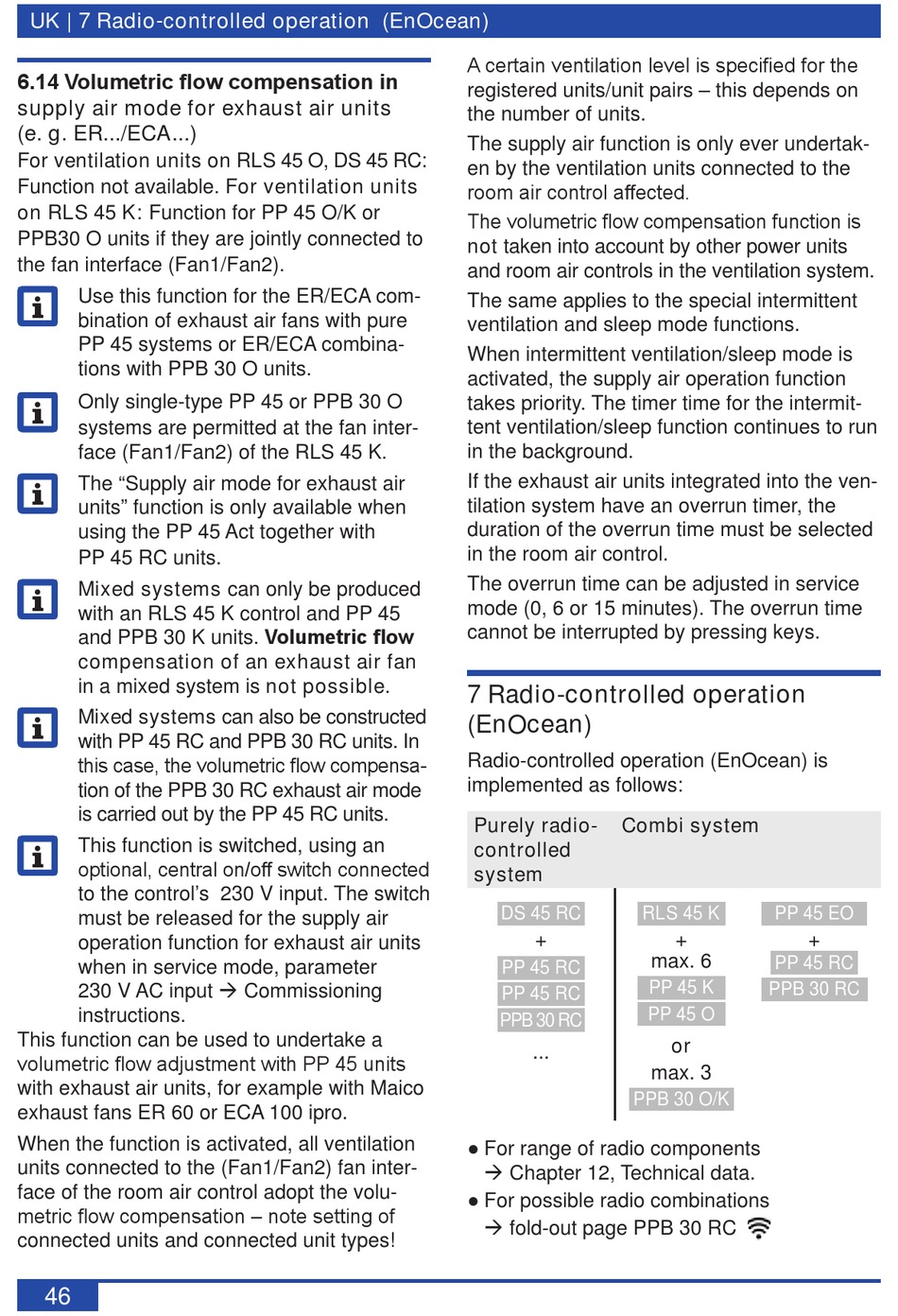

6.14 Volumetric flow compensation in

supply air mode for exhaust air units
(e. g. ER.../ECA...)
For ventilation units on RLS 45 O, DS 45 RC:
Function not available. For ventilation units
on RLS 45 K: Function for PP 45 O/K or
PPB30 O units if they are jointly connected to
the fan interface (Fan1/Fan2).
Use this function for the ER/ECA com-
i
bination of exhaust air fans with pure
PP 45 systems or ER/ECA combina-
tions with PPB 30 O units.
Only single-type PP 45 or PPB 30 O
i
systems are permitted at the fan inter-
face (Fan1/Fan2) of the RLS 45 K.
The "Supply air mode for exhaust air
i
units" function is only available when
using the PP 45 Act together with
PP 45 RC units.
Mixed systems can only be produced
i
with an RLS 45 K control and PP 45
and PPB 30 K units. Volumetric flow
compensation of an exhaust air fan
in a mixed system is not possible.
Mixed systems can also be constructed
i
with PP 45 RC and PPB 30 RC units. In
this case, the volumetric flow compensa-
tion of the PPB 30 RC exhaust air mode
is carried out by the PP 45 RC units.
This function is switched, using an
i
optional, central on/off switch connected
to the control's 230 V input. The switch
must be released for the supply air
operation function for exhaust air units
when in service mode, parameter
230 V AC input  Commissioning
instructions.
This function can be used to undertake a
volumetric flow adjustment with PP 45 units
with exhaust air units, for example with Maico
exhaust fans ER 60 or ECA 100 ipro.
When the function is activated, all ventilation
units connected to the (Fan1/Fan2) fan inter-
face of the room air control adopt the volu-
metric flow compensation – note setting of
connected units and connected unit types!
46
A certain ventilation level is specified for the
registered units/unit pairs – this depends on
the number of units.
The supply air function is only ever undertak-
en by the ventilation units connected to the
room air control affected.
The volumetric flow compensation function is
not taken into account by other power units
and room air controls in the ventilation system.
The same applies to the special intermittent
ventilation and sleep mode functions.
When intermittent ventilation/sleep mode is
activated, the supply air operation function
takes priority. The timer time for the intermit-
tent ventilation/sleep function continues to run
in the background.
If the exhaust air units integrated into the ven-
tilation system have an overrun timer, the
duration of the overrun time must be selected
in the room air control.
The overrun time can be adjusted in service
mode (0, 6 or 15 minutes). The overrun time
cannot be interrupted by pressing keys.
7 Radio-controlled operation
(EnOcean)
Radio-controlled operation (EnOcean) is
implemented as follows:
Purely radio- Combi system
controlled
system
DS 45 RC
+
PP 45 RC
PP 45 RC
PPB 30 RC
...
PPB 30 O/K
● For range of radio components
 Chapter 12, Technical data.
● For possible radio combinations
 fold-out page PPB 30 RC
RLS 45 K PP 45 EO
+ +
max. 6
PP 45 RC
PP 45 K
PPB 30 RC
PP 45 O
or
max. 3
