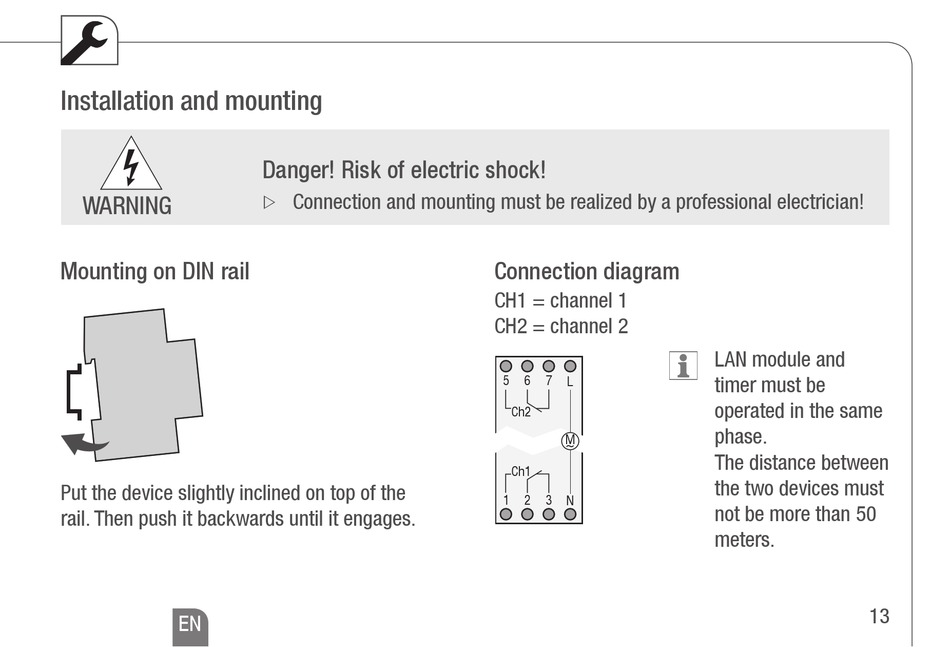

Installation and mounting

WARNING

Mounting on DIN rail

Put the device slightly inclined on top of the
rail Then push it backwards until it engages
EN
Danger! Risk of electric shock!
Connection and mounting must be realized by a professional electrician!
Z Z

Connection diagram

CH1 = channel 1
CH2 = channel 2
5 6 7
L
Ch2
M ~
Ch1
1 2 3 N
LAN module and
timer must be
operated in the same
phase
The distance between
the two devices must
not be more than 50
meters
13
