Operation

6.1

Display areas

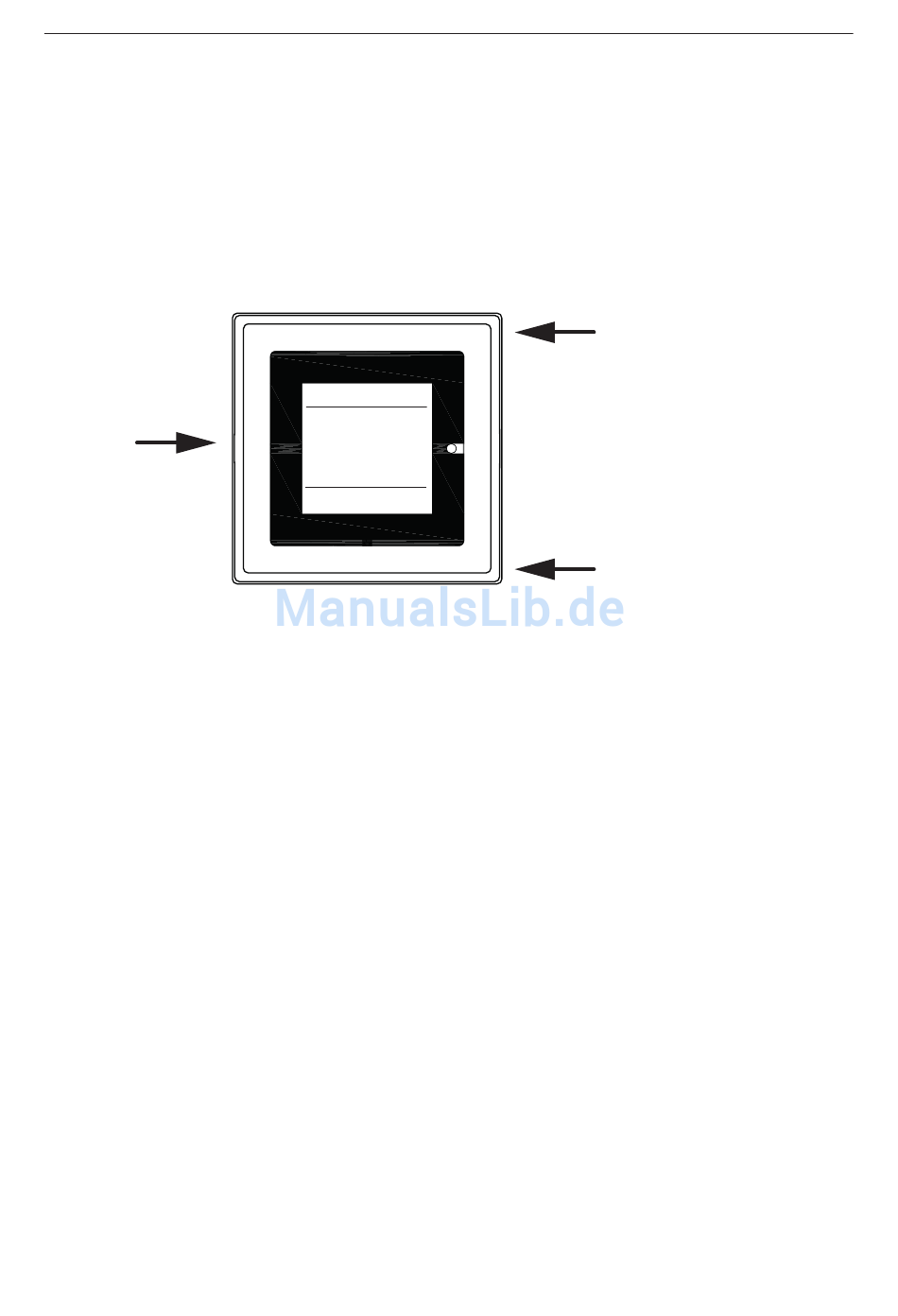

The display is divided into 3 areas:
status
and
channel
text
The upper and lower area show the descriptions of the
upper and lower push-button (channel 1 and 2).
In the central area the status information that is trans-
mitted via the CCU2 is displayed.
6.2

General operation

6.2.1 Channel 1+2

Taught-in Homematic devices can be controlled using
the upper and lower push-button.
If the device is used for controlling lights, for example,
the switching states "on" and "off" can be set.
channel 1
LINE 1
LINE 2
LINE 3
channel 2
Operation
Channel 2
(upper push-button)
Channel 1
(lower push-button)
