• Attach the clip-on frame (B) to the mounting
plate.
• Place the electronic unit (C). Make sure that the
clips on the mounting plate latch into the open-
ings on the electronic unit.

5.1.3 Installation in multiple combinations

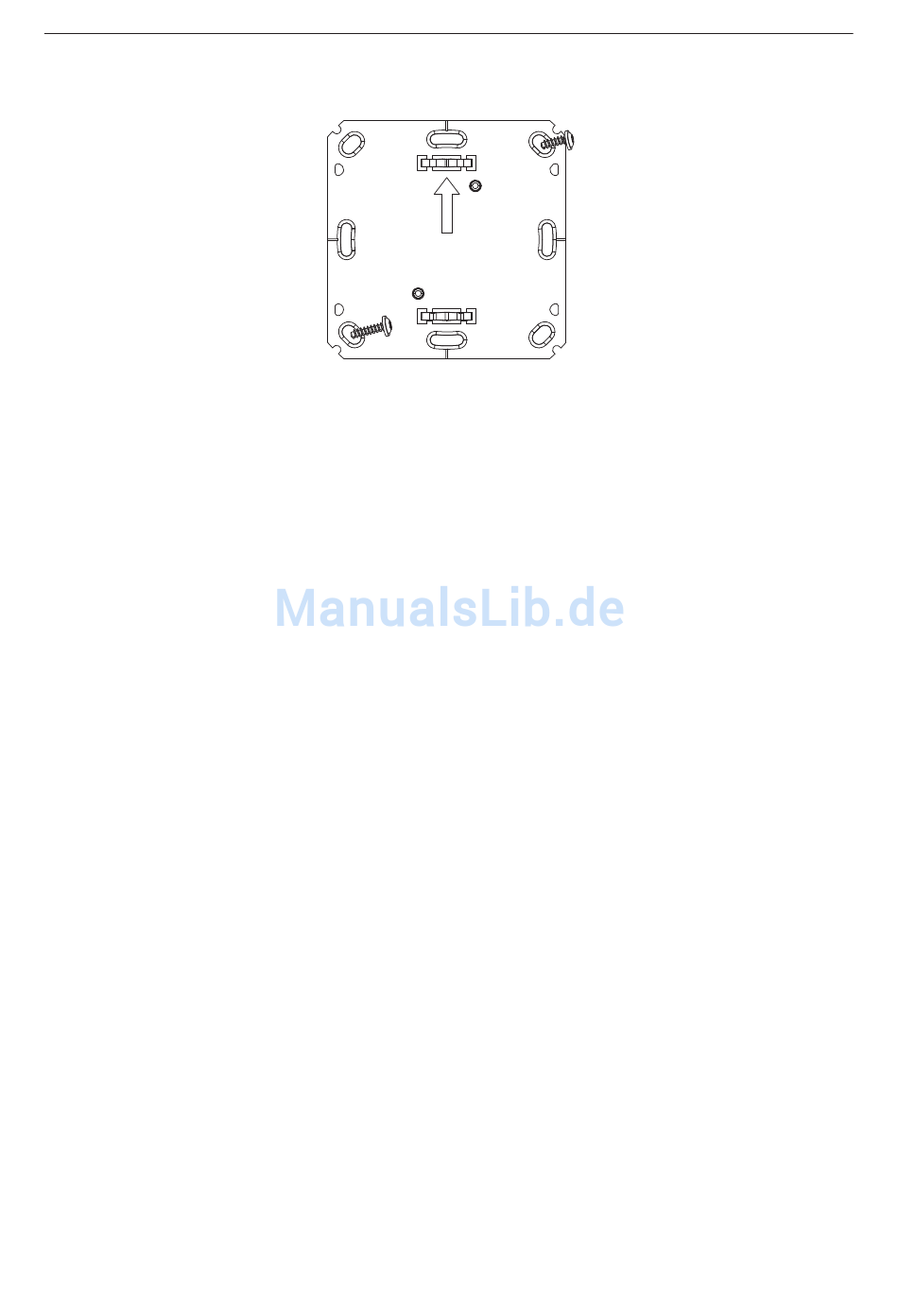

You can mount the status display with the attach-
ment frame (B) provided or use it with frames of other
manufacturers as well as integrate the electronic unit
(C) into a multi-gang frame. You can flexibly fix the
mounting plate (A) to the wall using adhesive strips
or screws. For mounting with multiple combinations,
make sure that the mounting plate of the status display
is seamlessly aligned to the already fixed mounting
plate/retaining ring.
The status display is designed to fit into frames sup-
plied by the following manufacturers:
